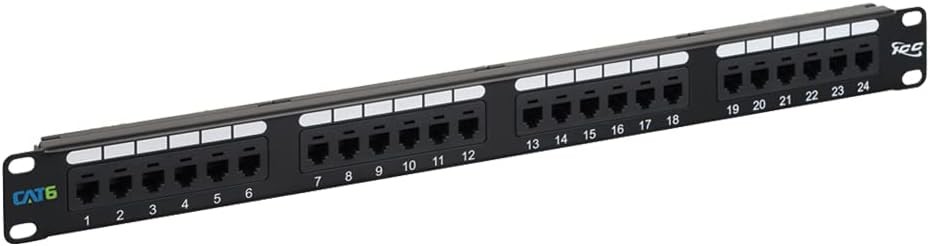

ICC CAT6 Patch Panel, UL Listed & PoE++ Rated Gigabit 24 Port 1 RMS, CAT 6
Product Details

• Brand: ICC
• Connector Type: RJ45
• Cable Type: Component, Ethernet
• Compatible Devices: Various Ethernet-enabled devices with RJ45 connectors
• Special Feature: PoE++ Rated to Power Devices
• Ethernet cable category: Cat 6
• Color: CAT 6
• Connector Gender: Female-to-Female
• Data Transfer Rate: 1E+3 Megabits Per Second
• Number of Pins: 8
• Unit Count: 1.0 Count
• Item Weight: 16 ounces
• Specification Met: ansi/tia-568
• Indoor/Outdoor Usage: Indoor, Outdoor
• Customer Package Type: Pack of 1
• Manufacturer: ICC
• Item model number: ICC-ICMPP02460
• Item Weight: 1 pounds
• Product Dimensions: 20 x 3 x 2.25 inches
• Item Dimensions LxWxH: 20 x 3 x 2.25 inches
• Is Discontinued By Manufacturer: No
• Brand: ICC
• Connector Type: RJ45
• Cable Type: Component, Ethernet
• Compatible Devices: Various Ethernet-enabled devices with RJ45 connectors
• Special Feature: PoE++ Rated to Power Devices

• HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT6 component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat5e and Cat5 cabling.
• FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W.
• EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference, fitting standard 19" EIA rack mount width with 1U (1.75") standard height.
• DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.
• ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 6 connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.

Optimize your network’s performance with ICC’s 24-Port CAT6 Patch Panel, designed for high-speed Gigabit Ethernet applications. Built with durable 16-gauge cold-rolled steel, this patch panel ensures maximum bandwidth and is backward compatible with Cat5e and Cat5 cables. It features gold-plated contacts for correction-free connections and supports up to 100W Power over Ethernet (PoE++). The 110 IDC termination blocks on the rear allow for efficient installation and re-termination over 100 times. Numbered ports and color-coded TIA-568A/B wiring diagrams simplify setup. Engineered to exceed ANSI/TIA-568 Category 6 standards, this panel reduces crosstalk for enhanced network performance. UL listed for fire safety compliance, it fits standard 19” racks, making it a reliable choice for any network.
