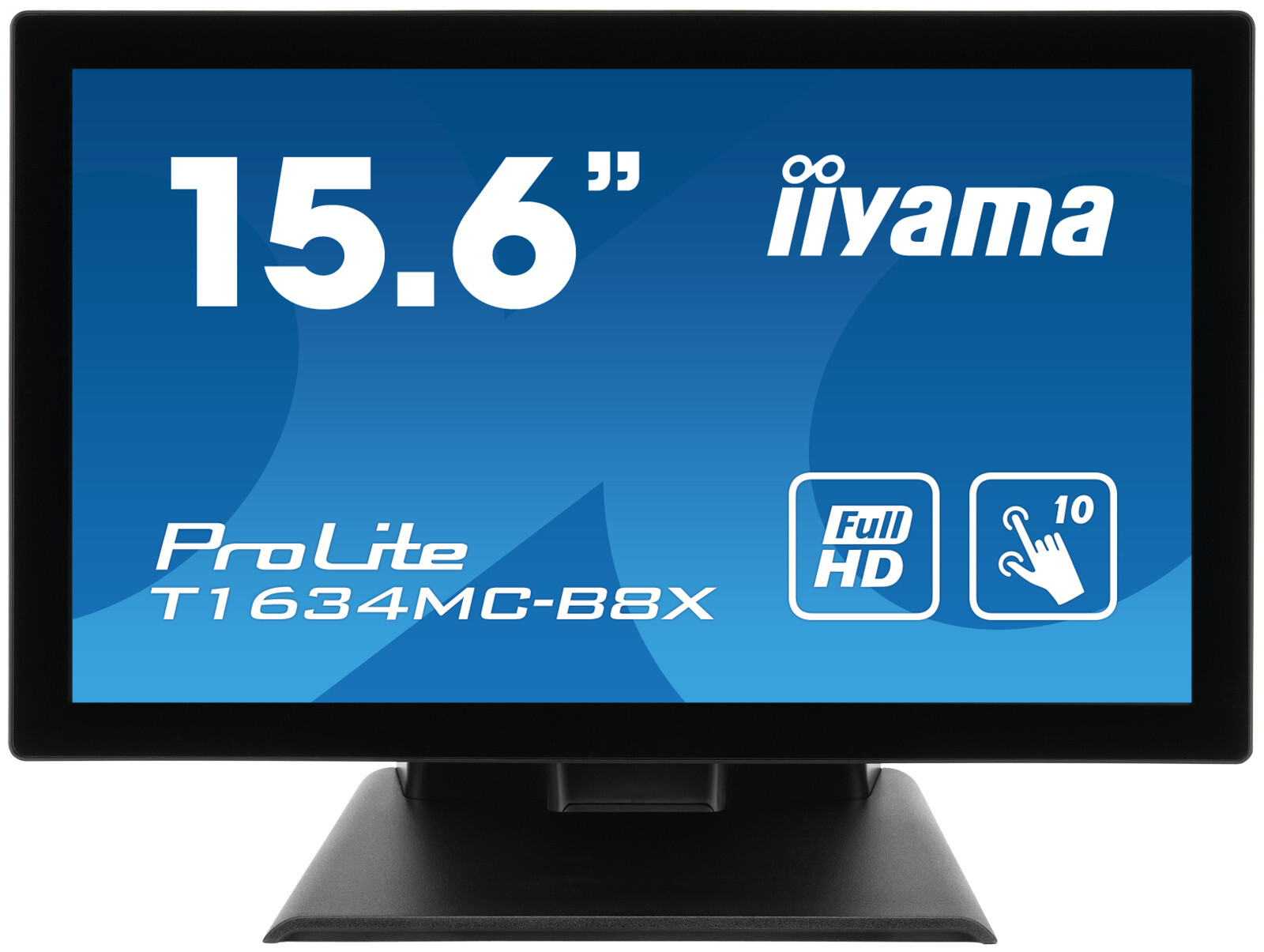

PROLITE T1634MC-B8X
15.6" Full HD PCAP 10 point touch monitor withedge-to-edge glass, IPS Panel Technology and touch through glass function
The ProLite T1634MC-B8X uses projective capacitive touchtechnology, built into an eye catching bezel with edge-to-edge glass. FeaturingIPS Panel Technology and Full HD (1920x1080) resolution, it offers natural,highly accurate colours and wide viewing angles. In addition to the superbimage quality, the screen comes with an IP65 rating, which means the screen andbezel is totally dust and water resistant, making it a perfect solution fordemanding environments. The Touch-Through-Glass function guarantees a seamlessand accurate touch response for interactive behind-glass-retail applications.
DISPLAY CHARACTERISTICS
Design Edge to edgeglass
Diagonal 15.6",39.5cm
Panel IPS PanelTechnology LED
Native resolution 1920x 1080 @60Hz (2.1 megapixel)
Aspect ratio 16:9
Panel brightness 450cd/m²
Brightness 405cd/m² with touch
Light transmittance 90%
Static contrast 700:1with touch
Response time (GTG) 25ms
Viewing zone horizontal/vertical:178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.2mln(6bit + Hi-FRC)
Horizontal Sync 30 -84kHz
Viewable area W x H 344.2x 193.6mm, 13.6 x 7.6"
Pixel pitch 0.179mm
Bezel colour and finish black,matte
TOUCH
Touch technology projectivecapacitive
Touch points 10(HID, only with supported OS)
Touch method stylus,finger, glove (latex)
Touch interface USB
Supported operating systems Alliiyama monitors are Plug & Play and compatible with Windows and Linux. Fordetails regarding the supported OS for the touch models, please refer to thedriver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes
INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGAx1
Digital signal input HDMIx1
DisplayPort x1
HDCP yes
FEATURES
Extra Anti-fingerprintcoating, touch through-glass
Glass thickness 2.4mm
Glass hardness 7H
Water and dust protection IP65(front)
OSD key lock yes
GENERAL
OSD languages EN, DE,FR, ES, IT, CN, JP
Control buttons Menu,Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture(contrast, brightness, H-position, V-position, phase, clock, auto adjust),advanced (color temp., sharpness), OSD (timeout, position, H-position,V-position, touch switch), option (reset, language, source select, displaymode, factory)
Plug&Play DDC2B
MECHANICAL
Orientation landscape,face-up
Tilt angle 90°up; 5° down
VESA mounting 100 x100mm
ACCESSORIES INCLUDED
Cables power, USB,HDMI, DP
Guides quick startguide, safety guide
Other AC adapter
