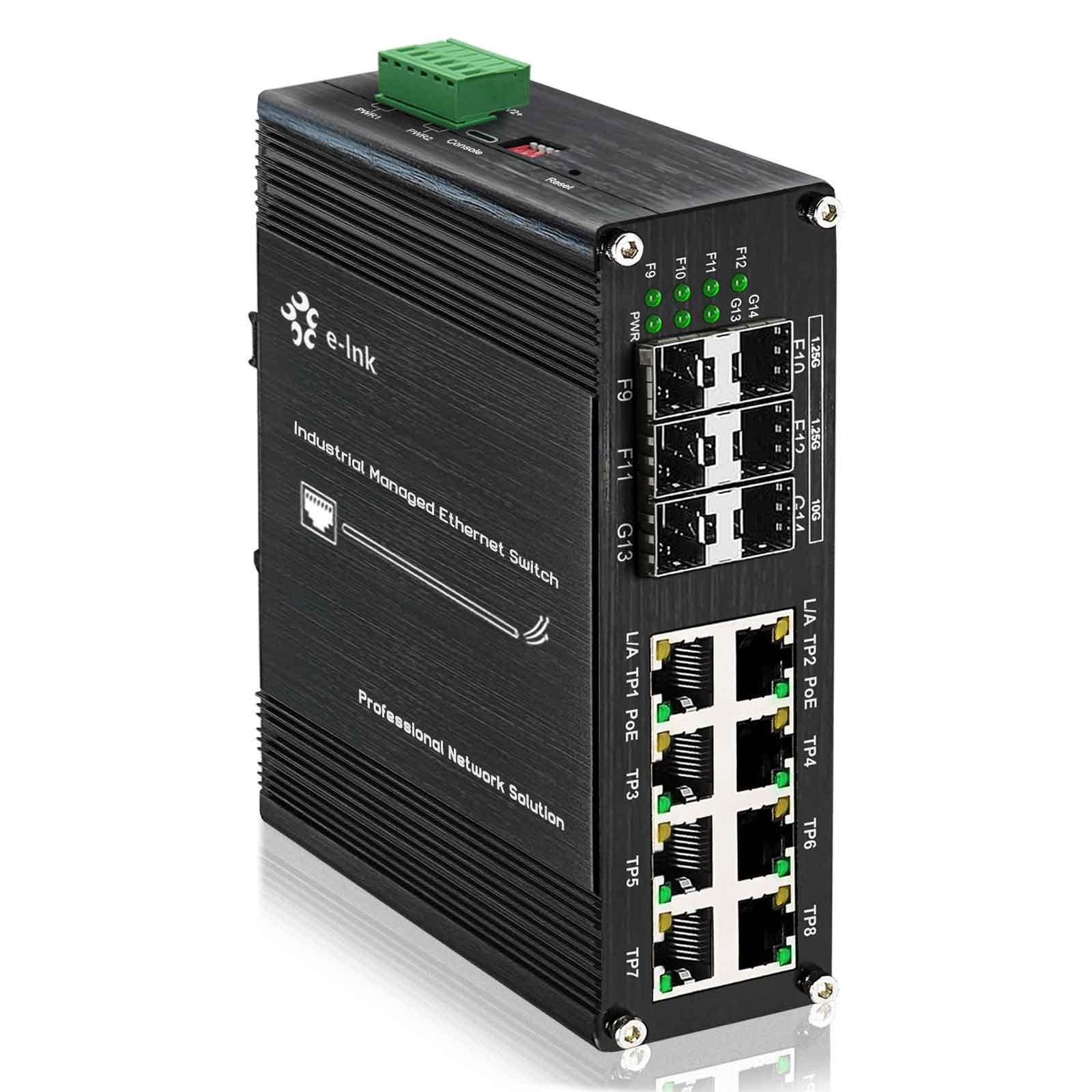

Industrial L2+ 8-Port Managed Ethernet PoE Network Switch 10Gx2SFP+1Gx4SFPOverview

The LNK-IMC2408M Series represents a high-performance managed industrial Ethernet 14Ports PoE switch engineered for bandwidth-intensive applications in demanding environments. This PoE Gigabit Ethernet Managed Switch integrates 8× Gigabit copper ports with 4× 1000Base-X SFP fiber slots and 2× 10G SFP+ ports, creating a versatile connectivity platform that supports both standard Ethernet and high-speed fiber optic transmission.

Featuring advanced management capabilities, this industrial-grade 14Ports PoE switch enables precise network control through comprehensive configuration options including VLAN segmentation, QoS prioritization, and port management. The auto-sensing RJ45 interfaces automatically negotiate speed and duplex settings, while the multi-rate fiber optic ports accommodate both Gigabit and 10-Gigabit transceivers using single-mode or multi-mode fiber cabling.

Built to withstand harsh industrial conditions, industrial managed gigabit ethernet switch maintains reliable operation across extended temperature ranges and features enhanced protection against mechanical stress and electrical interference. Ideal for bandwidth-demanding applications such as high-resolution surveillance systems, industrial automation networks, and distributed enterprise environments, it provides seamless integration of IP cameras, wireless access points, and other network devices while ensuring robust data transmission across local and remote locations through its hybrid copper-fiber architecture.

Key Features

• Support 8×10/100/1000Base-T 802.3at PoE + 4x1000Base-X SFP+ 2x 10GBase-SR/LR SFP+
• 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
• 3af/atcompliant
• DIP Switch supports one-key anti-ring, PoE Reset and 250m PoE Network
• Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
• 9K Bytes Jumbo Frame
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IP40 Aluminum Case
• Supports DIN-Rail installation

Download Web User Manual (PDF)：WEB User Manual.pdf

E-lnk Gigabit Ethernet Managed 14Ports PoE Switch

The hardened industrial gigabit 14ports PoE switch features 8 Gigabit Ethernet ports alongside 4x1G and 2x10G SFP+ fiber interfaces, delivering versatile networking options for both copper and fiber infrastructure with superior backbone capacity.

Industrial Protection & Wide Temperature Range

Constructed with heavy-duty aluminum casing rated IP40, Industrial Managed Switch provides superior resistance to dust, moisture, and electromagnetic interference in challenging environments.

The 14Ports PoE Switch engineered to maintain stable performance across extreme temperature conditions from -40°C to 80°C, ensuring reliability in both freezing and high-temperature settings.

Flexible Mounting Options

Designed with industry-standard DIN-rail compatibility, this Managed PoE Ethernet switch enables rapid deployment in space-optimized industrial cabinets and control panels.

The tool-free mounting mechanism eliminates the need for additional hardware or complex procedures, significantly reducing installation time while ensuring secure placement in various operational environments from factory floors to utility rooms.

Application

• High-Bandwidth Surveillance Networks:Supports multi-gigabit backhaul for high-resolution IP camera systems with 10G fiber uplinks .
• Industrial Automation Backbones:Provides deterministic connectivity for industrial control systems through managed Ethernet and fiber optic links.
• Enterprise Campus Networks:Enables high-speed interconnection between buildings using 10G fiber uplinks.
• Intelligent Transportation Systems:Facilitates high-bandwidth data aggregation from traffic monitoring devices, license plate recognition cameras and variable message signs using fiber optic backbone connectivity.
• Data Center Edge Connectivity:Serves as aggregation switch , providing multi-gigabit copper access and 10G fiber uplinks for seamless data center interconnections.

Why Choose Us

• Intelligent Auto-Configuration– All copper ports automatically detect connection parameters and cable types, ensuring hassle-free installation and optimal link establishment with any connected device.
• Optimized Data Transfer– 9K jumbo frame capability enhances network efficiency by maximizing packet sizes, significantly improving throughput for bandwidth-intensive applications.
• Power-Saving Technology– Implements Energy Efficient Ethernet (EEE) to dynamically reduce energy usage during low-traffic periods, minimizing operational costs while maintaining full connectivity.
• Contemporary Management Access– Equipped with USB-C console interface for streamlined device configuration, replacing outdated serial ports with modern connectivity solutions.
• Extended Operational Range– Engineered to maintain stable performance across extreme temperature conditions from -40°C to 80°C, ensuring reliability in both freezing and high-temperature settings.

Technical IndexesEthernetStandards:IEEE802.3 10BASE-TIEEE802.3u 100BASE-TX/FXIEEE802.3ab 1000BASE-TIEEE802.3z Spanning TreeForward & FilteringRate:14,880pps (10Mbps)148,800pps (100Mbps)1,488,000pps (1000Mbps)1,488,000,000pps (10000Mbps)Packet Buffer Memory:12M bitsProcessing Type:Store-and-ForwardBackplane bandwidth64GbpsMax Packet Length:9K Bytes Jumbo FrameAddress Table Size:8KMAC AddressesInterfaceConnector:8x RJ45RS485:1x RS485 (Optional)Optical Port:

4x 1000Base-XSFP

2 x 10G Base-SR/LRSFP+

USB-C:1x USB-C (for Management)RS485 Serial Interface (Optional)Physical interfaceIndustrial standard 3-pin screw terminalData type1Ch RS485 Bi-DirectionRS-485 signalsData+, Data-, GNDSerial port line distance (copper)1000 metersBaud rate0 ~ 800kbpsPoE (Power over Ethernet)Standard:IEEE 802.3at Power over Ethernet PlusIEEE 802.3af Power over EthernetPort:RJ45Power Pin Assignment1/2/4/5(+), 3/6/7/8(-)PoE Budget:Up to 240-watt PoE budgetEnvironmentalOperating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Relative Humidity:5% to 95% non-condensingMTBF> 200,000 hrsElectrical and MechanicalInput Power:48~57VDC,Redundant Power (6-pin Terminal Block)Power Consumption:15W Max.(PoE in Use<240W)Protection:Power Input Overload:Automatic ResettableReverse Polarity:PresentDIP Switch4-digit DIP switch functionDIPFunctionSettingsSW 1ReservedON – EnabledOFF – DisabledSW 2Anti-ringON – EnabledOFF – DisabledSW 3 (to be upgraded)250m PoE NetworkON – EnabledOFF – DisabledSW 4 (to be upgraded)PoE ResetON – EnabledOFF – DisabledLED Indicators:PWR:Power StatusEthernet (Per Port):Link/ActivityPoE (Optional)PoE StatusFiber:Gigabit SFP Port: F9~F1210G SFP+ Port: F13, F14Dimensions (WxDxH):149x 114x Options:DIN-Rail mountSoftware FeaturesRedundancy ProtocolsSupport STP/RSTP/MSTP/ERPSv2, Link AggregationMulticast SupportSupport IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1QVLANSupport IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN,Time ManagementSNTPQOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

PoE Management

Total power limit of PoE power supply

PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation

Diagnostic MaintenanceSupport port mirroring, Syslog, PingManagement FunctionSupport CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTTAlarm ManagementSupport 1 way relay alarm output, RMON, TRAPSecurity

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route

Regulatory ApprovalsISO9001, CE, RoHS, FCCEN55022:2010+AC: 2011, Class AEN 61000-3-2: 2006+A1: 2009+A2: 2009EN 61000-3-3: 2013EN55024:2010IEC 61000-4-2: 2008 (ESD)IEC 61000-4-3: 2010 (RS)IEC 61000-4-4: 2012 (EFT)IEC 61000-4-5: 2014 (Surge)IEC 61000-4-6: 2013 (CS)IEC 61000-4-8: 2009 (PFMF)Ordering Information

Model

Description

LNK-IMC2408M

Industrial L2+ 8-Port 10/100/1000T+ 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.
