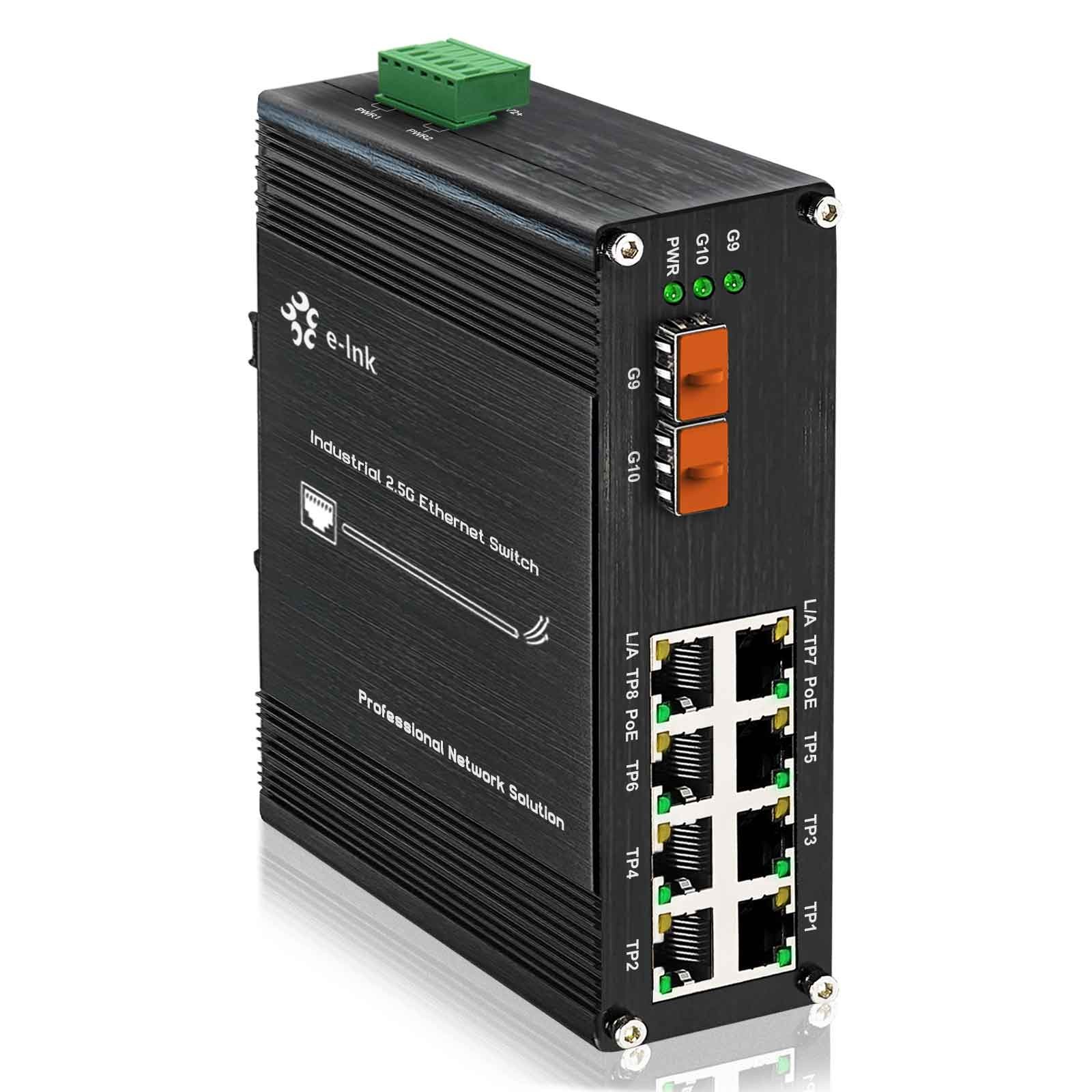

Industrial PoE Switch 8-Port 2.5G Multi-Gig 2-Port 10G SFP+ Hardened DIN-RailOverview
The LNK-IMC208-2.5GP-SFP+ represents a cutting-edge industrial-grade networking solution engineered for next-generation high-bandwidth applications. This advanced managed Ethernet PoE fiber switch integrates 8 multi-speed RJ45 ports supporting 10/100/1000M/2.5G Base-T connectivity with complete IEEE 802.3bt PoE++ capability, alongside 2 high-speed SFP+ fiber ports supporting 1.25G/2.5G/10G Base-X transmission.
Featuring sophisticated Power over Ethernet technology, the PoE fiber switch delivers up to 30W per port under 802.3bt standard, efficiently powering high-consumption devices including PTZ cameras, wireless access points, and advanced IoT sensors while providing comprehensive remote management capabilities. The auto-negotiation functionality ensures optimal connection speeds with automatic MDI/MDI-X crossover detection for seamless deployment across diverse network environments.
The dual SFP+ fiber interfaces provide versatile high-speed connectivity options, supporting both single-mode and multi-mode fiber types for reliable long-distance network extension up to 80km. This enables robust backbone connectivity for bandwidth-intensive applications while maintaining signal integrity in electrically challenging conditions.
Specifically designed for industrial automation, smart city infrastructure, and high-resolution surveillance systems, this managed PoE fiber switch offers advanced features including VLAN, QoS, and network monitoring while operating reliably in extreme temperatures and harsh environmental conditions. The combination of multi-gigabit copper connectivity and high-speed fiber uplinks provides network architects with unparalleled flexibility in building future-proof network architectures that support emerging technologies and growing bandwidth demands.
Key Features
- 10/100/1000M/2.5Gbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
- Supports IEEE 802.3at PoE+ (30W per port)
- Supports 802.3x Flow Control
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Redundant Power Inputs
- Supports DIN-Rail mount installation
- -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch
LNK-IMC208-2.5GP-SFP+ is the managed 8-port 10/100/1000M/2.5G Base-T 802.3bt PoE + 2-port 10G/2.5G/1.25G Base-X SFP hardened Ethernet PoE fiber switch. The PoE fiber Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 10G/2.5G/1.25G Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
Unleash High-Power Connectivity
Power the most demanding devices without the need for separate electrical wiring. This future-proof industrial PoE fiber switch features8 multi-gigabit RJ45 portsthat support speeds up to2.5Gbpsand are fully compliant with the latestIEEE 802.3bt (PoE++) standard, delivering an industry-leading 30W of power per port.
This massive power budget is capable of running high-consumption equipment likePTZ cameras with heaters, high-performance wireless access points (Wi-Fi 6/6E), advanced VoIP conference systems, and even thin clientsdirectly from the PoE fiber switch. To prevent bottlenecks, it’s equipped with2 10G SFP+ fiber uplink ports, ensuring a lightning-fast backbone for aggregated data from all connected devices. With atotal PoE budget of 240W, it’s the ultimate all-in-one power and data solution for next-generation industrial applications.
Carrier-Grade Reliability for Extreme Environments
Go beyond basic connectivity with a carrier-grade PoE fiber switch built for intelligence and resilience in harsh conditions. As afully managed Ethernet PoE fiber switch, it offers advanced features like VLAN, QoS, SNMP, and ring network protocols (e.g., ERPS/MSTP) for granular network control, optimized traffic prioritization, and enhanced security. Housed in a robustIP40-rated aluminum casefor superior heat dissipation and EMI protection, it guarantees stable operation across anextended temperature range of -40°C to 80°C. TheDIN-rail mountingdesign and wide-range48-57V DC redundant power inputensure seamless and secure integration into any industrial control cabinet, providing unwavering reliability formission-critical operations in manufacturing, transportation, and outdoor environments.
Application
- Next-Generation Industrial Automation
EnablesIndustry 4.0 implementationswithmulti-gigabit machine vision systemsandreal-time control networks, supportinghigh-bandwidth PLC communicationsandindustrial IoT deployments - Smart City Infrastructure
Facilitatesurban digital transformationwithhigh-power PoE++ connectivityfor4K/8K surveillance systems,intelligent traffic management, andpublic safety networks - High-Density Wireless Deployment
SupportsWi-Fi 6/6E access pointsandsmall cell backhaul, providing2.5G multi-gigabit uplinksand30W PoE++ powerfornext-generation wireless infrastructure - Broadcast and Media Production
Enables4K/8K video production networkswith10G fiber uplinks, supportingreal-time video transmissionandbroadcast equipment connectivityinmobile production vehicles - Transportation Digitalization
Supportsintelligent transportation systemswithhigh-resolution ANPR camerasandvehicle detection systems, deliveringreliable connectivityforsmart highway applications - Energy and Utility Modernization
Enablesdigital substation communicationsandgrid modernization, providingdeterministic networkingforprotection relaysandmonitoring systems
Why Choose Us
Future-Ready Multi-Gigabit Performance
Delivers 8×2.5G Multi-Gig ports with 802.3bt PoE++ (30W/port) and dual 10G SFP+ uplinks, providing 10x faster connectivity than standard Gigabit PoE fiber switches for bandwidth-intensive applications
High-Power PoE++ Innovation
Supportsfull IEEE 802.3af/at/bt standardswith360W total power budget, capable of poweringhigh-consumption deviceslikePTZ camerasandWi-Fi 6 access pointssimultaneously
Advanced Management Capabilities
Enterprise-levelmanaged featuresincludingVLAN, QoS, and network monitoring, enablingprecise traffic controlandremote managementforcomplex network architectures
Industrial-Grade Reliability
IP40 metal housingand-40°C to 80°C operating rangeensure99.99% uptimein harsh environments, validated in300+ industrial installations
Energy Efficient Design
Compliant withIEEE 802.3az EEEstandards, reducingpower consumptionby30%while maintainingoptimal network performance
Easy Deployment & Maintenance
DIN-rail mountingandauto-MDI/MDIXenablequick installation, whileweb management interfacesimplifiesnetwork style="box-sizing: border-box; border-width: 0px; font-size: 16px; font-style: inherit; font-weight: inherit; margin: 0px; outline-width: 0px; padding: 0px; vertical-align: baseline;">
Proven Field Performance
Deployed insmart city,industrial automation, andtransportation projectswith<0.1% failure rateover 2 years of continuous operation
Unmanaged Ethernet Switch Techinical Indexes
Ethernet
Standards:
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3bz 2.5Gbps
IEEE802.3ae10GBase-R
IEEE802.3pQoS
Forward & FilteringRate:
14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
1,488,000,000pps (10000Mbps)
3,720,000,000pps (2.5Gbps)
Packet Buffer Memory:
12M bits
Processing Type:
Store-and-Forward
Backplane bandwidth
110Gbps
Max Packet Length:
9K Bytes Jumbo Frame
Address Table Size:
8KMAC Addresses
Interface
Ethernet Port:
8x 10/100/1000M/2.5GRJ45
Optical Port:
2x 1.25G/2.5G/10G SFP
ManagementPort
1x USB-C
PoE (Power over Ethernet)
Standard:
IEEE 802.3bt Power over EthernetPlusPlus
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port:
RJ45
Power Pin Assignment
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
PoE Budget:
30-watt each PoE Port,
Max 240-watt PoE budget
Environmental
Operating Temperature:
-40°C to 80°C (-40°F to 176°F)
Storage Temperature:
-40°C to 85°C (-40°F to 185°F)
Relative Humidity:
5% to 95% non-condensing
MTBF
> 200,000 hrs
Unmanaged Ethernet Switch Ordering 8-port 10/100/1000M/2.5G BASE-T(8-port PoE+) + 2-port 1.25G/2.5G/10G SFP+Ethernet SwitchSFP Options► SFP+module is to be purchased separately.Mounting Options► Default DIN-Rail Bracket installedPower Options► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.► Power Supply is to be purchased usPaymentWe accept
