Intel 486 DX2-66 SX750 manufactured by IBM 9314 66Mhz Ultra Rare CPU For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

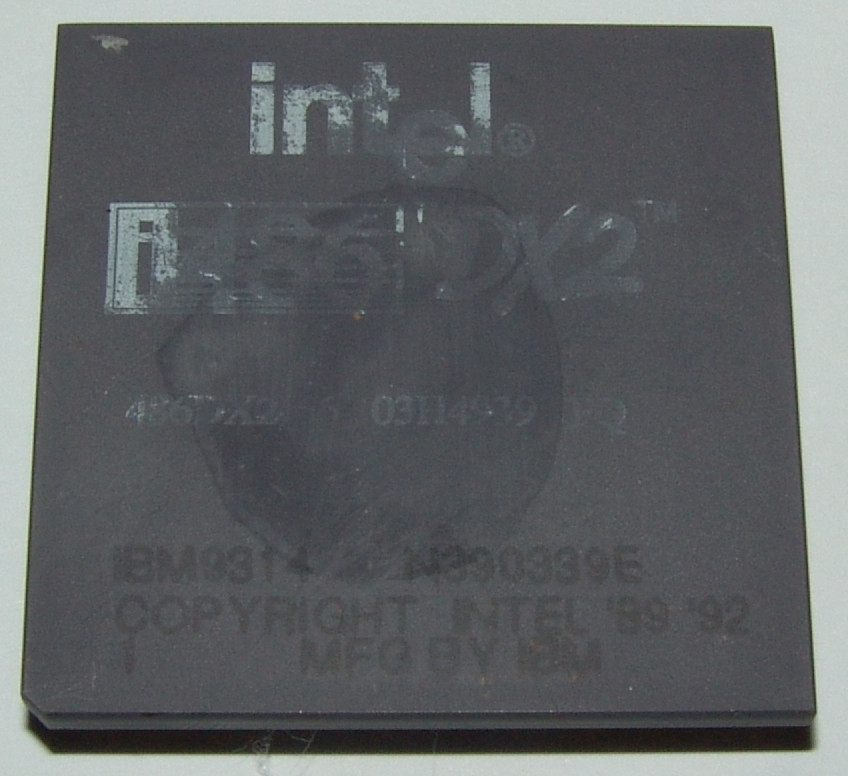

Intel 486 DX2-66 SX750 manufactured by IBM 9314 66Mhz Ultra Rare CPU

Price: DE $227.26

Intel 486 DX2-66 SX750 manufactured by IBM 9314 66 Mhz Socket 2 / 3 CPU

This very rare CPU is an Intel 486 DX2-66 manufactured by IBM and is the perfect choice for a DOS / Win95 retro gaming PC.

It is rare because there are not many CPUs around which were manufactured by IBM and are Intel branded. IBM had their own branding using the name "Blue Lightning" for licensed Intel 486 DX2 CPUs. A few CPUs were made by IBM for Intel, even though Intel produced 486 DX2 CPUs in-house in their own fabs.

It is in good condition and was tested with some DOS games like DOOM2 and Monkey Island (tm)

These CPUs run well at 75 or even 80 Mhz, if everything else is right. With "right" I mean to put the CPU into a "happy place" combination of CPU, mainboard, RAM and BIOS settings.

Under the picture you can find the specs of this CPU.

General informationTypeCPU / MicroprocessorFamilyIntel 80486CPU part number

A80486DX2-66 is an OEM microprocessor by IBM

Frequency66 MHzBus speed33 MHzClock multiplier2Package168-pin Pin Grid Array
1.75" x 1.75" (4.45 cm x 4.45 cm)SocketPGA168Introduction date10-Aug-92Upgrade options

Use Intel PODP5V83 to upgrade to Pentium 83 MHz
See 80486 upgrade matrix for more information.

S-spec numbersPart numberES/QS processorsProduction numberProduction numberProduction / MicroarchitectureInstruction process0.8 micron
1.2 million transistorsData width32 bitFloating Point UnitIntegratedLevel 1 cache size8 KB 4-way set associative unified code and data cachePhysical memory4 GBVirtual memory64 TBLow power features

Stop Clock state (SL enhanced version only)
Stop Grant state (SL enhanced version only)
Stop Clock Snoop state (SL enhanced version only)
Auto Halt state (SL enhanced version only)
Auto Idle Power Down mode (SL enhanced version only)
Upgrade Power Down mode (SL enhanced version only)

On-chip peripheralsMemory management unitI/O ports65536 8-bit portsElectrical / Thermal parametersV core5V ± 5%Minimum/Maximum operating temperature0°C - 85°CTypical/Maximum power dissipation4.88 Watt / 6.3 Watt
4.5 Watt / 6.3 Watt (SL technology)Notes on Intel 66 MHz
