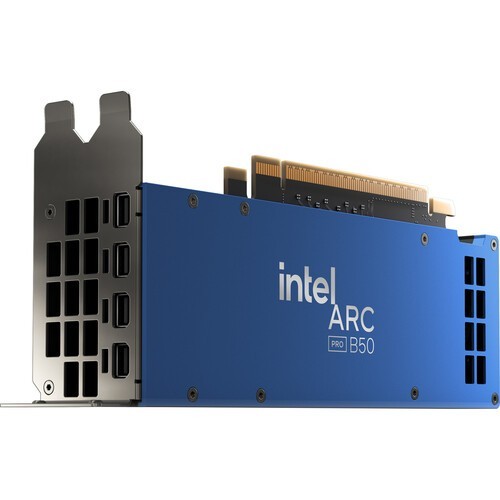

Intel Arc Pro B50 16GB GDDR6 Workstation Graphics Card SFF
UPC: 735858551519
MPN: 33P6PEB0BB
Brand: Intel
Chipset Manufacturer: Intel
Chipset/GPU Model: Intel Arc Pro B50
Memory Size: 16 GB
Memory Type: GDDR6
Compatible Slot: PCI Express 5.0 x8
Connectors: Mini DisplayPort
Power Cable Requirement: Not Required
Form Factor: Small Form Factor (SFF)
APIs: DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6, OpenCL
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- 99CW89
- INT-33P6PEB0BB-00
- SBP50W-16G
- 8360-00128
- ASRock B60 CT 24G
- ARKN 8357-00128
- 23P6PA00BA10P
- 2349170290
- M95589206
- 0X56B1
- 05NV74
- 5NV74
- 100-300000006R
- 699-5G180-0500-601
- RTD7H
- 7XK5H
- YH2P2
- CRPRY
- 02RJ000
- L44055-001
- L40548-002
Architecture & Compute Performance
The Intel Arc Pro B50 is a performance-segment professional workstation GPU powered by the advanced Xe2 (Battlemage) microarchitecture. Built on the TSMC 5nm process, it features 16 Xe-cores, 16 Ray Tracing Units, and 128 Intel XMX Engines, delivering up to 10.65 TFLOPS of FP32 compute performance and 170 TOPS for Int8 workloads. This card is highly optimized for AI, generative design, 3D simulations, and professional editing tasks.
VRAM & Memory Bandwidth
Equipped with 16GB of high-speed GDDR6 memory on a 128-bit interface, the Arc Pro B50 provides ample capacity for complex datasets and high-resolution textures. Operating at 14 Gbps effective speed, it delivers a total memory bandwidth of 224 GB/s, ensuring smooth performance in demanding professional applications and rendering workflows.
Power, Cooling & Connectivity
Designed for maximum compatibility in small form factor (SFF) workstations, this dual-slot, half-length, half-height card measures just 6.6 inch by 2.7 inch. It operates with a highly efficient 70W maximum power draw, requiring no external PCIe power connectors as it is fully bus-powered. Connectivity includes four Mini-DisplayPort 2.1 outputs with UHBR 13.5 and Dolby Vision support, capable of driving up to 8K (7680 x 4320) resolution at 60Hz.
