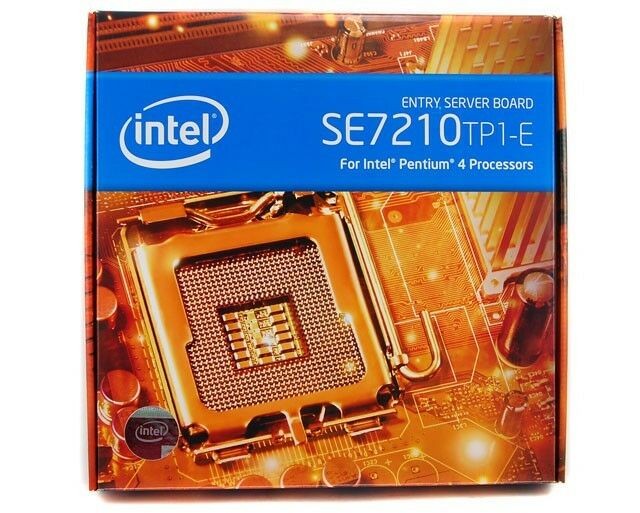

Intel Entry Server Board SE7210TP1-E
Socket 478 ATX DDR Retail Box *New*
Supports- Intel® Pentium® 4 Socket 478 and Celeron Processors
This sale is for an Intel Entry Server Board SE7210TP1-E Socket 478 ATX DDR Retail Box *New*
Condition:
Brand new, retail box product with all factory accessories.
Warranty:
90 Day Warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 90 day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification:
This is an genuine product from this manufacturer.
Information Summary:
SE7210TP1-E Feature Set
The Intel Server Board SE7210TP1-E provides the following feature set:
o Support for an Intel® Celeron processor or an Intel® Pentium® 4 processor with hyperthreading
technology in a μPGA478 socket.
o 400/533/800 MHz Front Side Bus (FSB)
o Intel® E7210 chipset
• Intel® 827210 Memory Controller Hub (MCH)
• Intel® 6300ESB I/O Controller Hub
• Intel® 82802AC 8 Megabit Firmware Hub (FWH)
o Support for single-sided or double-sided dual inline memory module (DIMM) double-data
rate (DDR) memory providing up to 4 GB of system memory with four 184-pin DIMM
sockets.
• PC3200 (400 MHz): to run 400 MHz memory at full speed requires an Intel Pentium 4
processor with 800 MHz system bus frequency.
• PC2700 (333 MHz): to run 333 MHz memory at full speed requires an Intel Pentium 4
processor with 533 MHz system bus frequency.
Note: PC2700 (333 MHZ) memory will run at 320 MHz frequency when using an Intel
Pentium 4 processor with 800 MHz system bus frequency.
• PC2100 (266 MHZ): PC2100 (266 MHZ) memory may only be used with an Intel
Pentium 4 processor with 400 MHz or 533 MHz system bus frequency only.
o Intel 82547GI Platform LAN Connect (PLC) device for 10/100/1000 Mbits/sec Ethernet LAN
connectivity
o Intel 82551QM device for 10/100 Mbits/sec Ethernet LAN connectivity
Intel® Server Board SE7210TP1-E TPS Server Board Overview
o Two independent PCI buses (one 32-bit, 33 MHz, 5 V; one 64-bit, 66 MHz, 3.3V) with four
PCI connectors and two embedded devices:
• Three PCI-X 64-bit PCI slots
• One 32-bit PCI slot
• Integrated 2D/3D graphics controller: ATI Rage* XL Video Controller with 8 MB of
SDRAM
o LPC (Low Pin Count) bus segment with one embedded device: Winbond* W83627HF-AW
LPC Bus I/O controller chip providing all PC-compatible I/O (floppy, serial, keyboard and
mouse)
o Three external USB 2.0 ports on the back panel with an additional internal header, which
provides support for one additional USB port for front panel support (four total possible USB
2.0 ports)
o One serial port and one serial port header
o Two Serial ATA (SATA) ports provide interface for SATA hard drives and ATAPI devices
o Two IDE interfaces with Ultra 33, 66 and 100 DMA mode
o Support for up to six system fans and one processor fan
o Server System Infrastructure (SSI)-compliant connectors for SSI interface support: front
panel, power connector
o Intel Server Management 5.8 support via the National* Semiconductor PC87431 integrated
management controller
