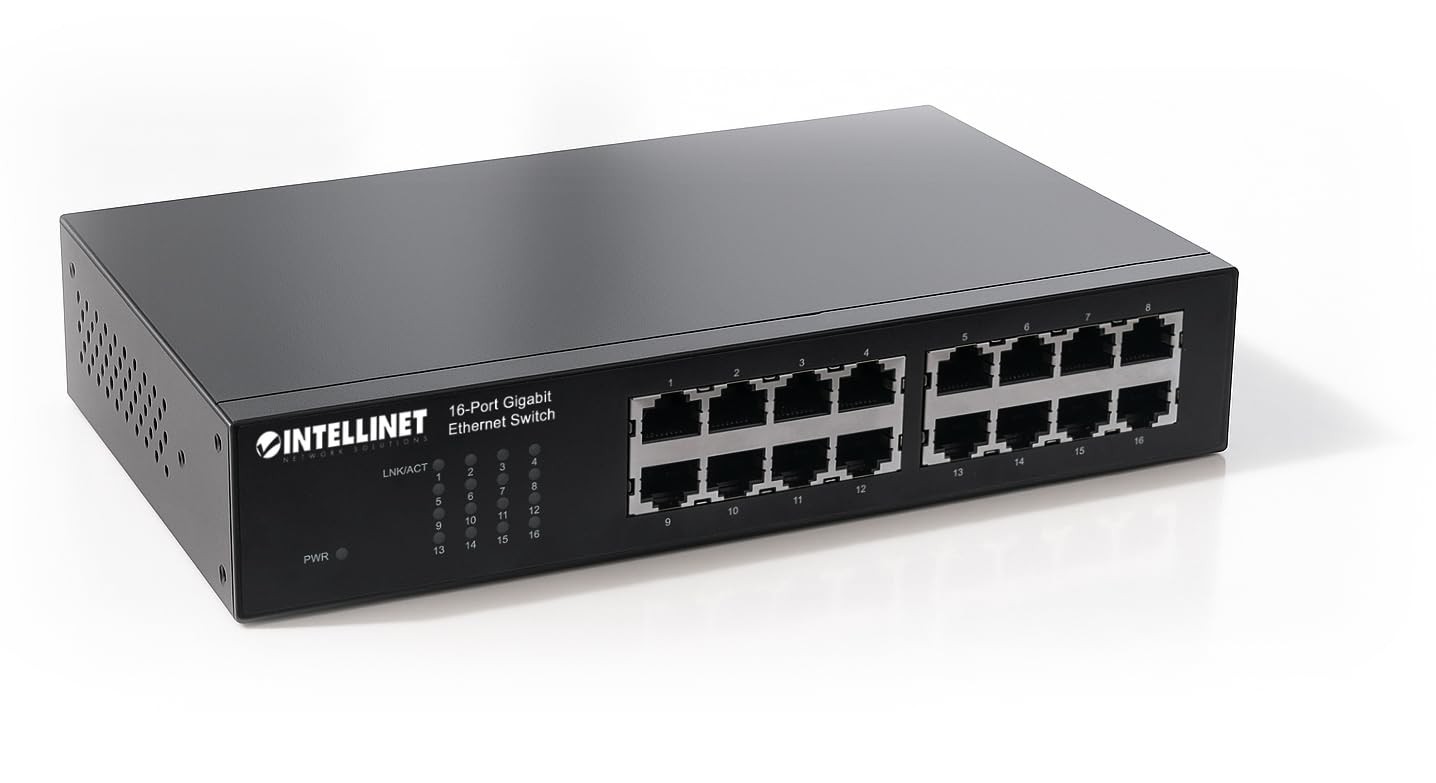

Connect wired devices through 16 RJ45 Gigabit Ethernet ports with 10/100/1000 Mbps auto-sensing, NWay auto-negotiation, and Auto-MDIX auto uplink support. The switch accepts mixed network speeds without manual port selection.
Place the switch on a desktop or install it in a standard 19-inch rack using the included 10-inch and 19-inch rackmount brackets. Its metal housing measures 8.46 x 5.24 x 1.73 inches for flexible network setup with either mounting option.
Support network traffic with a 32 Gbps switch fabric, -and-forward architecture, and full- or half-duplex operation. IEEE 802.3x flow control supports full-duplex mode, while collision-based backpressure supports half-duplex mode.
Reduce power use with IEEE 802.3az Energy Efficient Ethernet and Green Ethernet technology, which deactivates unused ports and adjusts power levels for cable length. The fanless design supports silent operation; maximum consumption is 9.1 watts.
Manage connected devices with a MAC address table supporting up to 8,192 entries, plus auto-learning and auto-aging. A 512 KBytes buffer and jumbo-frame support up to 9 kBytes help accommodate larger data transfers.
Use Cat3, Cat4, or Cat5 UTP/STP for 10Base-T, Cat5 UTP/STP for 100Base-TX, and Cat5e UTP/STP for 1000Base-T through the RJ45 ports. Packet forwarding rates reach 1,488,000 pps at 1000 Mbps.
Set up the switch with the included power cable and instructions, then monitor power and link/activity LEDs. The internal supply accepts 100–240 VAC at 50/60 Hz, with an operating temperature range of 32–104°F.
