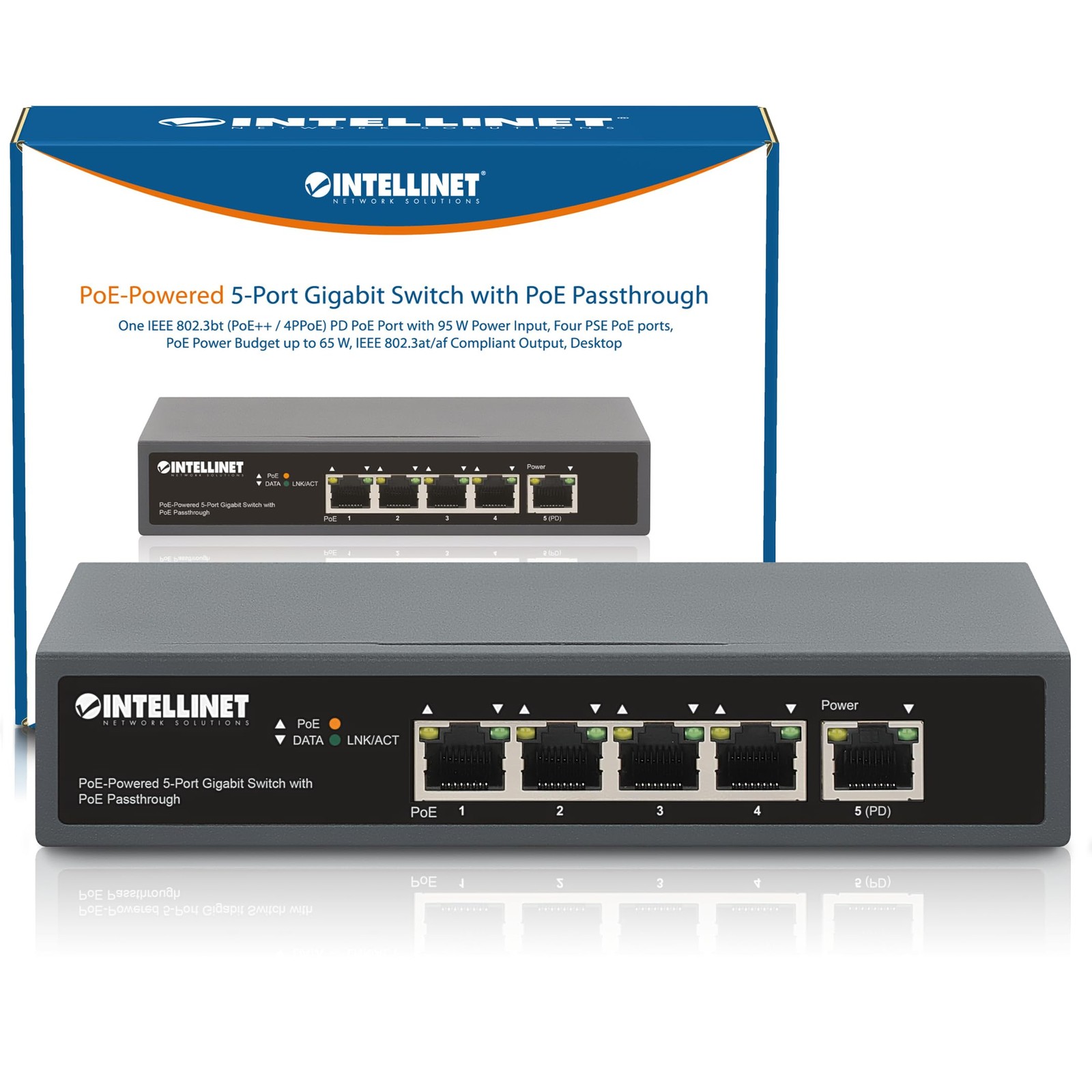

Add PoE connectivity to a desktop or wall-mounted network with this five-port Gigabit switch. IEEE 802.3bt PoE++ powered-device (PD) port accepts power from a PoE injector or switch, while four IEEE 802.3af/at PoE+ ports deliver data and power to connected devices such as wireless access points, VoIP phones and IP cameras. With AC power or IEEE 802.3bt input, the switch provides a 65-watt PoE budget and up to 30 watts per output port. PoE passthrough extends the connection distance between the PoE source and connected device from 100 meters (328 feet) to up to 200 meters (656 feet). The switch can also operate from the included power adapter. Its Powered Device Monitor (PDM), also known as PD Alive Check, can restart a connected PoE device that stops responding or sending network traffic. IEEE 802.3af/at detection, short-circuit, overload and high-voltage protection help support connected equipment. Five 10/100/1000 Mbps auto-sensing RJ45 ports, Auto-MDIX and a 10 Gbps switch fabric support efficient network traffic handling. -and-forward switching, IEEE 802.3x full-duplex flow control, jumbo frames up to 9 kB, a 2,048-entry MAC address table and 1,024 kB buffer memory support common business and home network configurations. The fanless metal housing supports quiet operation, with rubber feet for desktop placement and mounting holes for wall installation. Includes the PoE passthrough switch, power cable, power adapter, instructions and rubber feet.
Five-port Gigabit network switch provides IEEE 802.3bt PoE++ powered-device input and four IEEE 802.3at/af PoE outputs, carrying power and data to up to four connected devices through network cabling for a cleaner installation.
Use the included power adapter or a PoE injector or switch as the power source. The unit offers a 65 W PoE budget with AC or IEEE 802.3bt input, 25 W with IEEE 802.3at input, and 10 W with IEEE 802.3af input.
PoE passthrough extends the connection between the power source and device from 100 m to 200 m, helping position cameras, phones, and access points farther from the network source. Powered Device Monitor can restart a device that stops responding.
10/100/1000 auto-sensing RJ45 ports detect network speed automatically, while Auto-MDIX supports automatic uplink connections. A 10 Gbps switch fabric, -and-forward architecture, 1 MB buffer, and 2,048 MAC entries support organized traffic handling.
Jumbo frame support up to 9 kBytes, IEEE 802.3x flow control for full-duplex operation, and forwarding rates up to 1,488,000 packets per second at 1,000 Mbps help manage data across desktop, workgroup, or home network connections.
Short-circuit, overload, high-voltage, and PoE detection protection help address common electrical conditions, while a grounding point helps protect against external surges. The fanless metal housing operates silently for office or quiet-space use.
Mounting holes support wall installation, and the included rubber feet allow non-slip desktop use. Package includes the PoE-passthrough switch, power cable, instructions, power adapter, and rubber feet; the unit measures 3.66 x 6.61 x 1.26 inches and weigh
