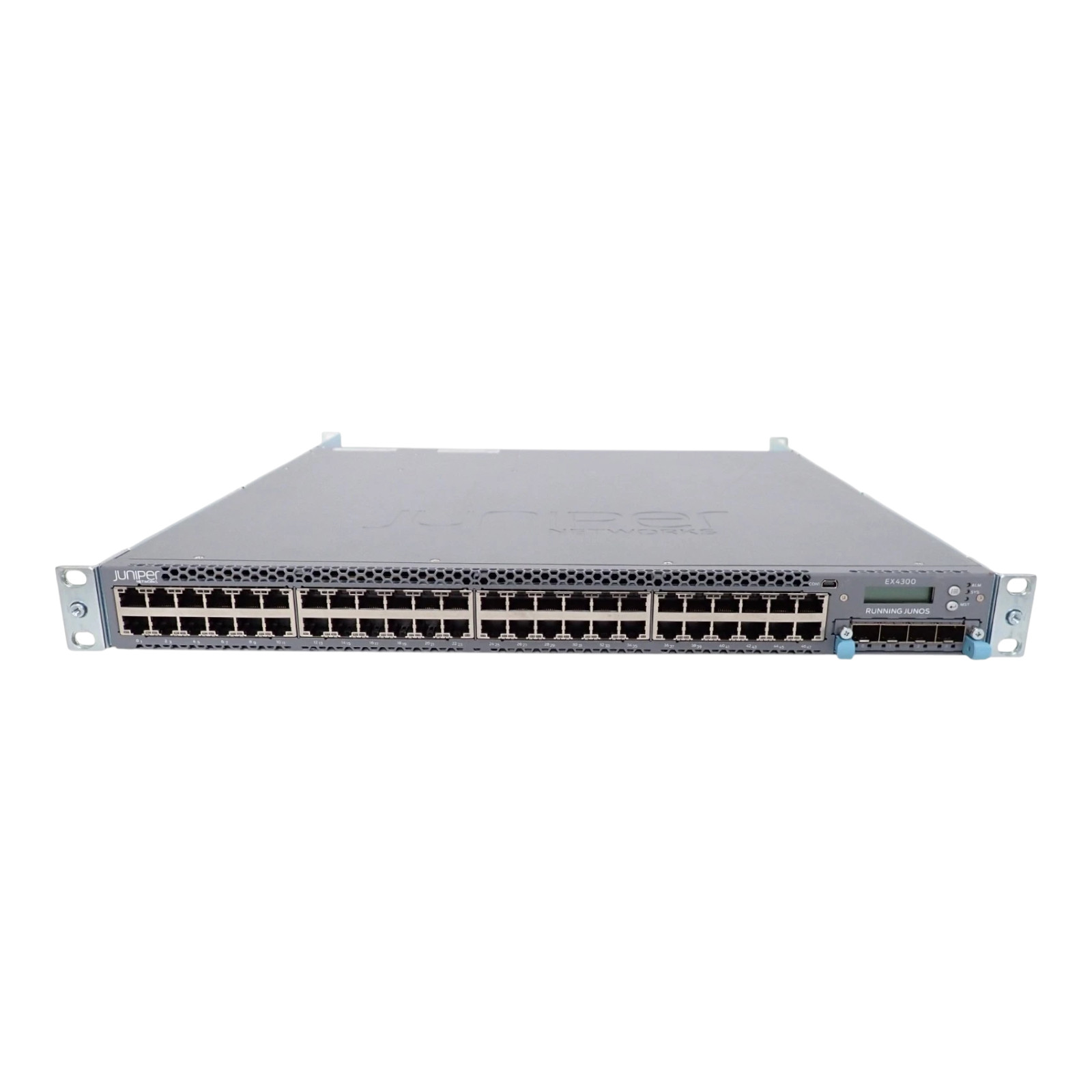

Juniper Networks EX4300-48T 48x 1GbE RJ45 4x 40Gb QSFP+ 1U Switch + EX-UM-4X4SFP
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Juniper Networks EX4300-48T 48x 1GbE RJ45 4x 40Gb QSFP+ 1U Switch + EX-UM-4X4SFP
Price: GB $317.93
Juniper Networks EX4300-48T 48x 1GbE RJ45 4x 40Gb QSFP+ 1U Switch + EX-UM-4X4SFPModel No:EX4300-48T
In Good Condition, Full Working OrderTestedRails Included2 Year WarrantyBack to Front Airflow
Permanent Extended Feature List License
Included
  • 1 xJuniper Networks EX4300-48T 48x 1GbE RJ45 4x 40Gb QSFP+ 1U Switch
    • 1 x Juniper 4-Port 1/10Gb Ethernet SFP+ Uplink Module EX-UM-4X4SFP
    • 2 xJuniper 350W AC Power Supply PSUJPSU-350-AC-AFI-A (Back to Front)
    • 2 x Juniper Fan Modules(Back to Front)
  • 1 x Set Of Rails
Overview:The EX4300 line of Ethernet switches delivers the performance, flexibility, and scale required for both campus and data center Gigabit Ethernet (GbE) access switch environments. When deployed in a Virtual Chassis configuration, the EX4300 delivers the operational simplicity and higher logical scale that businesses demand. Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy with speed and agility to increase revenue and improve productivity.
The EX4300 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. Mist Wired Assurance delivers better experiences for connected devices through AI-powered automation and service levels.
Description:EX4300-48T is a Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately). EX4300 1 Gigabit Ethernet (1GbE) switches are compact, fixed-configuration platforms that can be deployed as standalone systems or as part of a Virtual Chassis, Virtual Chassis Fabric, or Junos Fusion switching architecture, satisfying a variety of high-performance campus and data center access Juniper EX4300 switch with 48-port 10/100/1000BASE-T + 350 W AC PS
  • Form factor: Fixed platform, Virtual Chassis configuration consisting of 10 switches
  • Dimensions (W x H x D): 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm),1 rack unit
  • Backplane speed 320 Gbps (Virtual Chassis)
  • Data rate 496 Gbps
  • Throughput 369 Mpps (wire speed)
  • 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities: 4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)
  • 100GBASE C form-factor pluggable transceiver (CFP) port densities N/A
  • Resiliency: Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
  • Operating system: Junos OS
  • Traffic monitoring: sFlow
  • Quality-of-service (QoS) queues/port: 12
  • MAC addresses: 64,000
  • Jumbo frames: 9216 bytes
  • IPv4 unicast/multicast routes: 32,000/8000
  • IPv6 unicast/multicast routes: 18,000/4000
  • Number of VLANs: 4093
  • ARP entries: 64,000
    • Boot Log:

    root> ex4300-48t
    Junos: 20.3R2.9
    JUNOS EX Software Suite [20.3R2.9]
    JUNOS FIPS modeutilities [20.3R2.9]
    JUNOS CryptoSoftware Suite [20.3R2.9]
    JUNOS OnlineDocumentation [20.3R2.9]
    JUNOS Phone-HomeSoftware Suite [20.3R2.9]
    JUNOS jsd[powerpc-20.3R2.9-jet-1]
    JUNOS SDNSoftware Suite [20.3R2.9]
    JUNOS EX 4300Software Suite [20.3R2.9]
    JUNOS WebManagement Platform Package [20.3R2.9]
    JUNOS [20.3R2.9]
    REST API SoftwareSuite [20.3R2.9]root> showsystem license
    License usage:
    Licenses LicensesLicenses Expiry
    Feature name used installed needed
    ospf3 0 1 0permanent
    ripng 0 1 0permanent
    ospf2 0 1 0permanent
    bfd-liveness-detection 0 1 0permanent
    unicast-rpf 0 1 0permanent
    virtual-router 0 1 0permanent
    igmp 0 1 0permanent
    pim-mode 0 1 0permanent
    pim-ssm 0 1 0 1 0permanent
    vrrp 0 1 0permanent
    dot1q-tunneling 0 1 0permanent
    svlan 0 1 0permanent
    services-rpm 0 1 0permanent
    juniper-msdp 0 1 0 1 0permanent
    gr-ifd 0 1 identifier: JUNOS138995305
    License version: 4
    Valid for device: PE3718420058
    Customer ID: REDAPT SYSTEMS, INC.
    Features:
    extended-feature-list - Licensed extendedfeature list
    permanentroot> showsystem information
    Model: ex4300-48t
    Family: junos
    Junos: 20.3R2.9root> showchassis hardware
    Hardwareinventory:
    Item Version Part numberSerial number Description
    ChassisPE3718420058 EX4300-48T
    Routing Engine 0REV 36 650-044932 PE3718420058 EX4300-48T
    FPC 0 REV 36 650-044932PE3718420058 EX4300-48T
    CPU BUILTIN BUILTIN FPC CPU
    PIC 0REV 36 BUILTIN BUILTIN 48x 10/100/1000 Base-T
    PIC 1REV 36 BUILTIN BUILTIN 4x 40GE QSFP+
    PIC 2REV 02 611-063980 MY3718390361 4x 1G/10G SFP/SFP+
    Power Supply0 REV 03 Supply1 REV 03 Tray 0Fan Module, Airflow In (AFI)
    Fan Tray 1Fan Module, Airflow In (AFI)root> showchassis environment
    Class Item Status Measurement
    Power FPC 0 PowerSupply 0 OK
    FPC 0 Power Supply 1 OK
    Temp FPC 0 CPU OK 39 degrees C / 102 degrees F
    FPC 0 NW-PFE OK 24 degrees C / 75 degrees F
    FPC 0 SE-PFE OK 27 degrees C / 80 degrees F
    FPC 0 PHY-2/3 OK 28 degrees C / 82 degrees F
    FPC 0 MGMT PHY OK 27 degrees C / 80 degrees F
    FPC 0 PHY-4/5 OK 29 degrees C / 84 degrees F
    Fans FPC 0 Fan 0 OK Spinning at normal speed
    FPC 0 Fan 0 Airflow OK Airflow In (AFI)
    FPC 0 Fan 1 OK Spinning at normal speed
    FPC 0 Fan 1 Airflow OK Airflow In (AFI)

    VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£200 excluding VAT
    VATIS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKCSEX4300-48T-20.3R2.9-EFL/REF -5MJEX4300-48T/REF -1
