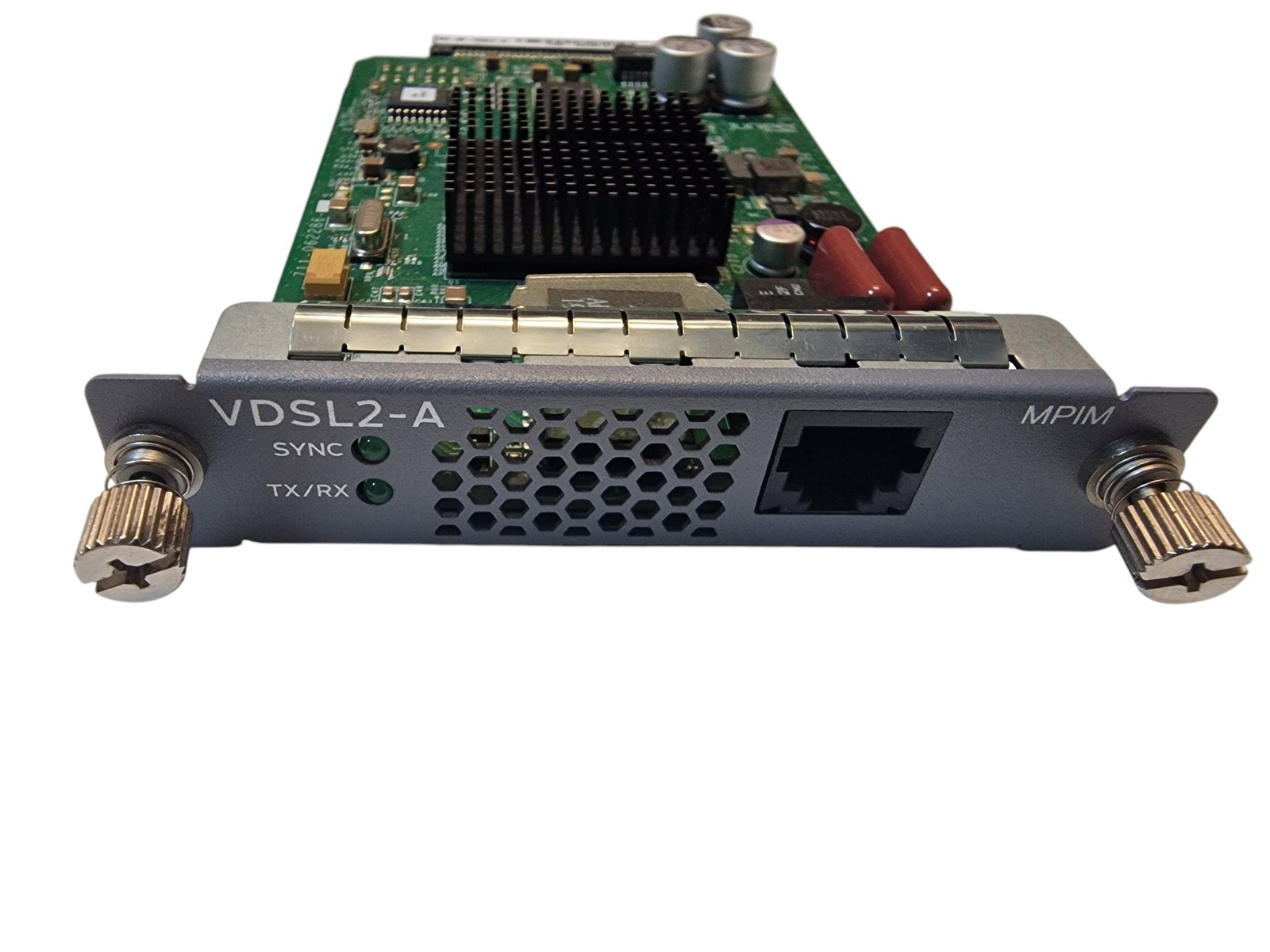

Juniper • SRX-MP-1VDSL2-RJuniper SRX-MP-1VDSL2-R -- 1-Port VDSL2 Annex A Mini-PIM

Annex A, so it suits UK lines. VDSL2 with ADSL2+ fallback, straight into an SRX.

ConditionUsedWarranty1 YearDispatch1 dayOverview

A Mini-Physical Interface Module that puts a VDSL2 modem inside a Juniper SRX firewall, removing the separate broadband router from a branch site. It is the Annex A variant, which is the one that matches the copper installations found on UK and most European networks, and it falls back to ADSL/ADSL2/ADSL2+ where VDSL2 is not available. The module connects to the services gateway's internal Ethernet backplane, so the WAN appears as an ordinary interface in the Junos configuration.

Key features

• 1 x RJ-11 VDSL2 port
• Annex A -- suits UK and most European copper installations
• Backward compatible with ADSL, ADSL2 and ADSL2+, with Annex M support
• Packet Transfer Mode (PTM) / Ethernet in the First Mile, IEEE 802.3ah
• OAM support in ADSL/ADSL2/ADSL2+ mode
• ATM QoS and MLPPP when operating in ADSL2 mode
• Up to 10 permanent virtual circuits in ADSL/ADSL2/ADSL2+ mode
• Removes the need for a separate broadband router at a branch site

What is included

• 1 x Juniper SRX-MP-1VDSL2-R part numberSRX-MP-1VDSL2-RJuniper description1-Port VDSL2 Annex A Mini-Physical Interface ModuleAnnexAnnex A, with Annex M supportPort1 x RJ-11Line modesVDSL2, with ADSL / ADSL2 / ADSL2+ backward compatibilityTransfer modePTM / EFM (IEEE 802.3ah); ATM in ADSL modesMaximum PVCs10 (ADSL / ADSL2 / ADSL2+ mode only)LEDs2Form factorMini-PIMSupported platformsSRX300 Series with Mini-PIM slots -- SRX320, SRX340, SRX345, SRX380 -- and SRX550MNot supported onSRX300 -- that model has no Mini-PIM slotsCondition

  Used -- pulled from working stock.

  Used, pre-owned equipment. Fully functional. May carry light cosmetic marks consistent with previous rack or desk use. Please see the photographs, which form part of this description.

  Please note
  • Check the Annex before ordering. This is the Annex A module. Annex B is a different part number and is not interchangeable.
  • The Mini-PIM is not hot-swappable -- power the services gateway down before fitting or removing it.
  • An RJ-11 cable is required. ATM QoS and MLPPP are available only when the module is running in ADSL2 mode, not in VDSL2 mode.
  • Please see the photographs for the exact condition of the item you will receive.
  Warranty, dispatch and returnsWarranty1 Year from date of deliveryDispatch time1 dayPackagingProfessionally packed for transit, with anti-static protection where appropriateReturnsAccepted in line with our published returns policyBuying more than one?

  We hold stock of Juniper, Cisco and Arista networking hardware and can usually supply multiples of this item, matched configurations, or related spares and rack kits. Send us a message through with your requirement and we will come back to you.

  All trademarks, brand names and product names are the property of their respective owners and are used for identification purposes only. This item is sold as described above; specifications are quoted from the manufacturer's published documentation and are given in good faith for guidance. Photographs form part of the description.
