Use :

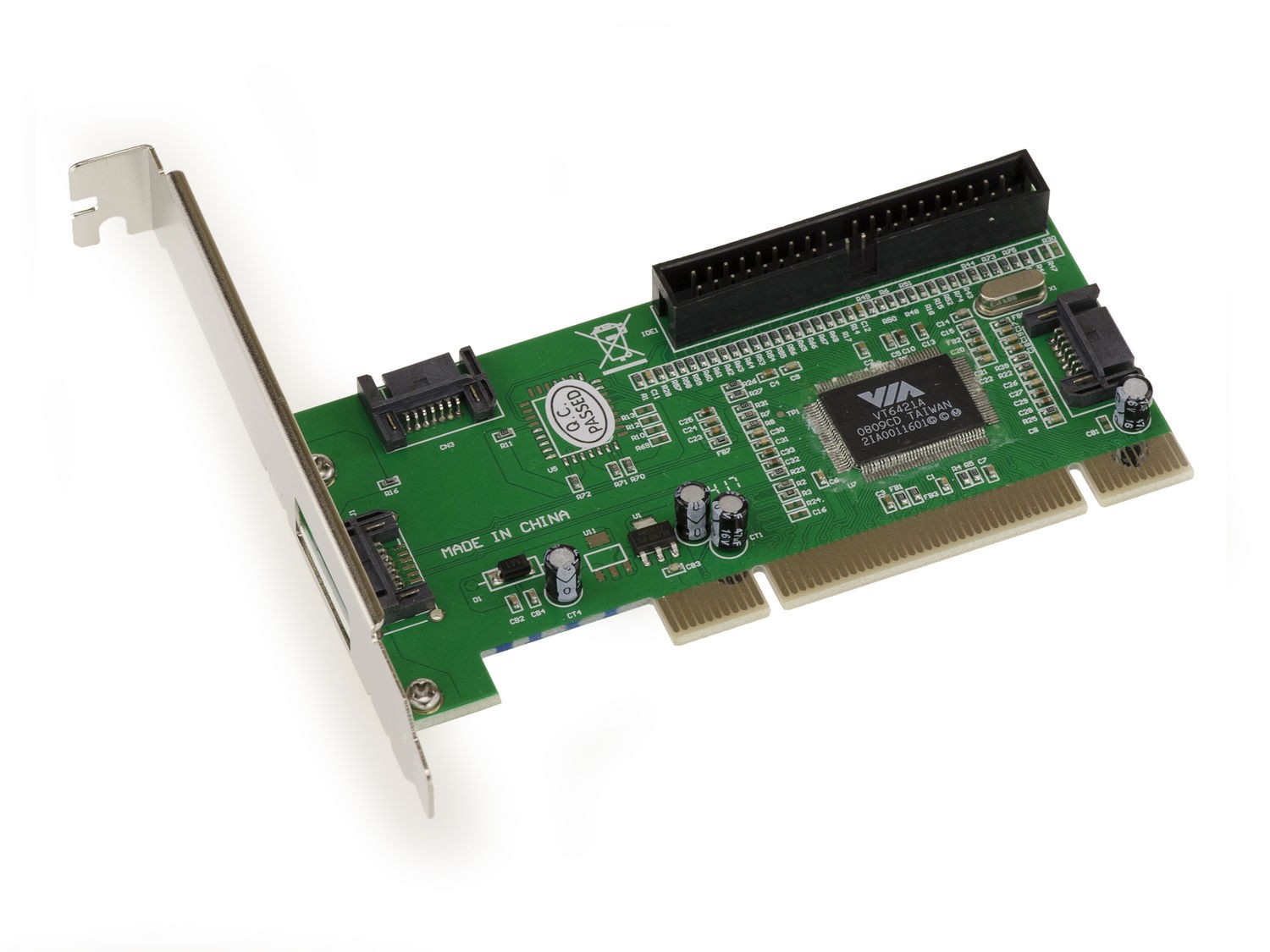

For DESKTOP PC on PCI port. Allows you to add 1 IDE port to connect 1 to 2 hard drives, and to add 2 SATA ports to connect 2 SATA devices.
Compatibility:
SATA part: SATA 1 (can accept SATA 2/3 by limiting it to SATA 1 transfer speeds) without capacity limit.
IDE part: Recommended card for hard drives Compatible with UDMA5 ATA/100, UDMA6 ATA/133.
Drivers included for WINDOWS :
PCI port,
Compatible with UDMA5 ATA/100, UDMA6 ATA/133, Ultra ATA/100, Ultra ATA/66, Ultra ATA/33, EIDE/Fast-2, accepts drives over 137MGB.
Maximum transfer speed of 133MB/second in IDE, 1.5GB/second in SATA,
An independent Ultra ATA port, with 256b buffer,
Accepts up to 2 IDE devices in addition to the peripherals naturally embedded by the motherboard,
Two independent SATA 1 ports, with 256b buffer per channel,
The second SATA port is available either externally ("classic" SATA socket) or internally (there are therefore 3 SATA 1 sockets, but 2 'real' ports).
Accepts up to 2 SATA devices in addition to peripherals naturally embedded by the motherboard.
RAID: Raid 0, 1 or 0+1, stripes.
Immediate installation (plug and play).
