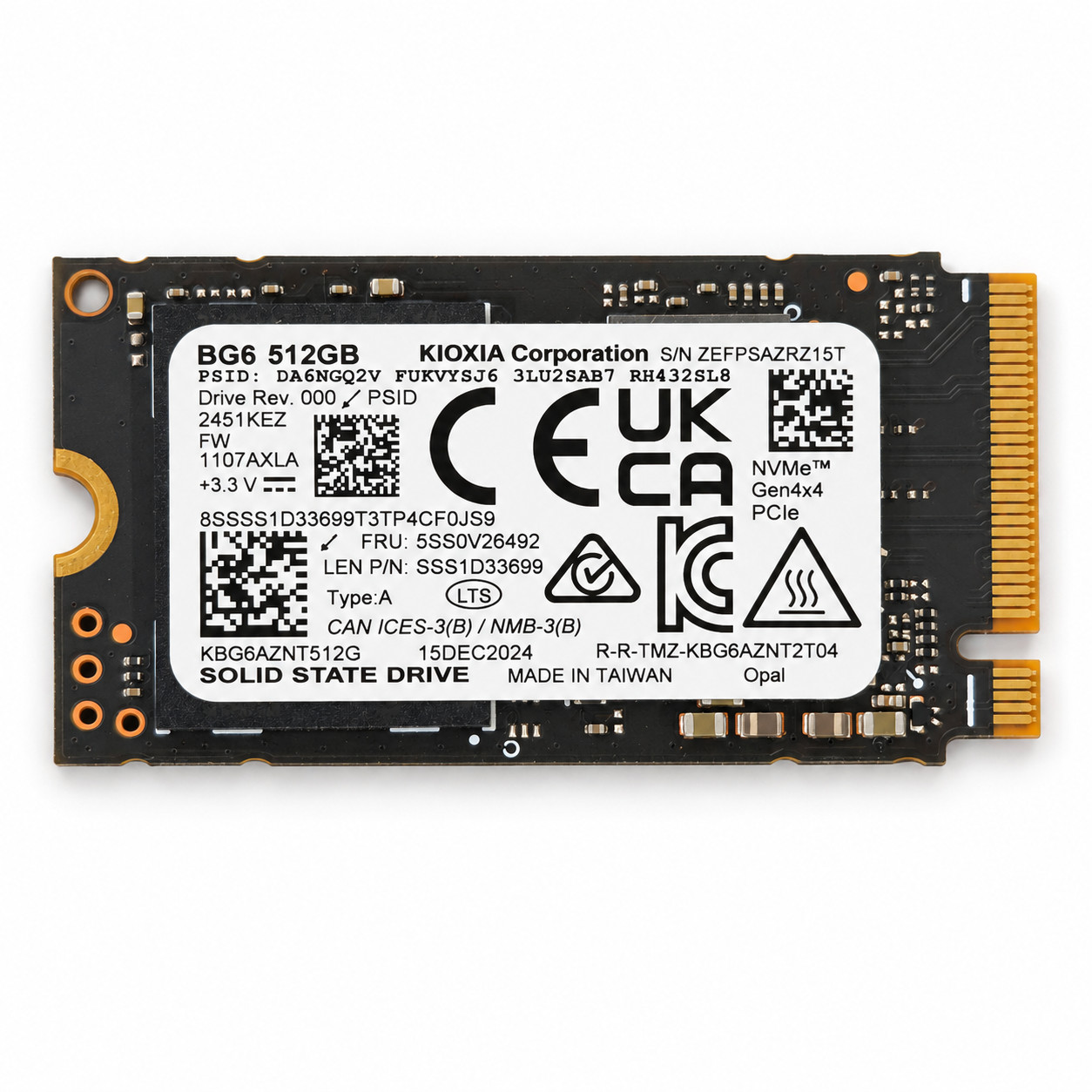

Genuine KIOXIA BG6 512GB M.2 NVMe solid state drive, model KBG6AZNT512G, Lenovo FRU 5SS0V26492.
This is the compact M.2 2242 version using a PCIe Gen4 x4 NVMe interface. The drive has been tested, is recognized properly, and reports 100% health in CrystalDiskInfo. The label identifies it as an Opal-capable KIOXIA drive manufactured in Taiwan.
The CrystalDiskInfo screenshot shown is from the actual SSD being sold.
Specs:
Brand: KIOXIA
Series: BG6
Model: KBG6AZNT512G
Capacity: 512GB / 512.1GB
Type: Internal NVMe SSD
Form Factor: M.2 2242
Interface: PCIe 4.0 x4 / NVMe
NVMe Standard: NVMe 1.4
Lenovo FRU: 5SS0V26492
Lenovo P/N: SSS1D33699
Firmware: 1112AXLA
Security: Opal
Manufacture Date: December 15, 2024
Country of Manufacture: Taiwan
The BG6 family uses PCIe Gen4 x4 and TLC NAND; KIOXIA rates its 512GB BG6 models for up to 4,800 MB/s sequential read and 4,000 MB/s sequential write, although actual performance depends on the host system and configuration.
SMART / Usage Information
Health Status: Good – 100%
Critical Warnings: 0
Percentage Used: 0%
Media/Data Integrity Errors: 0
Total Host Reads: 1,417 GB
Total Host Writes: 1,022 GB
Power-On Count: 844
Power-On Hours: 13,950
Temperature During Test: 33°C
Serial Number: ZEFPSAZRZ15T
The drive was tested through a USB/UASP NVMe adapter, which is why CrystalDiskInfo displays UASP (NVM Express) for the test connection.
