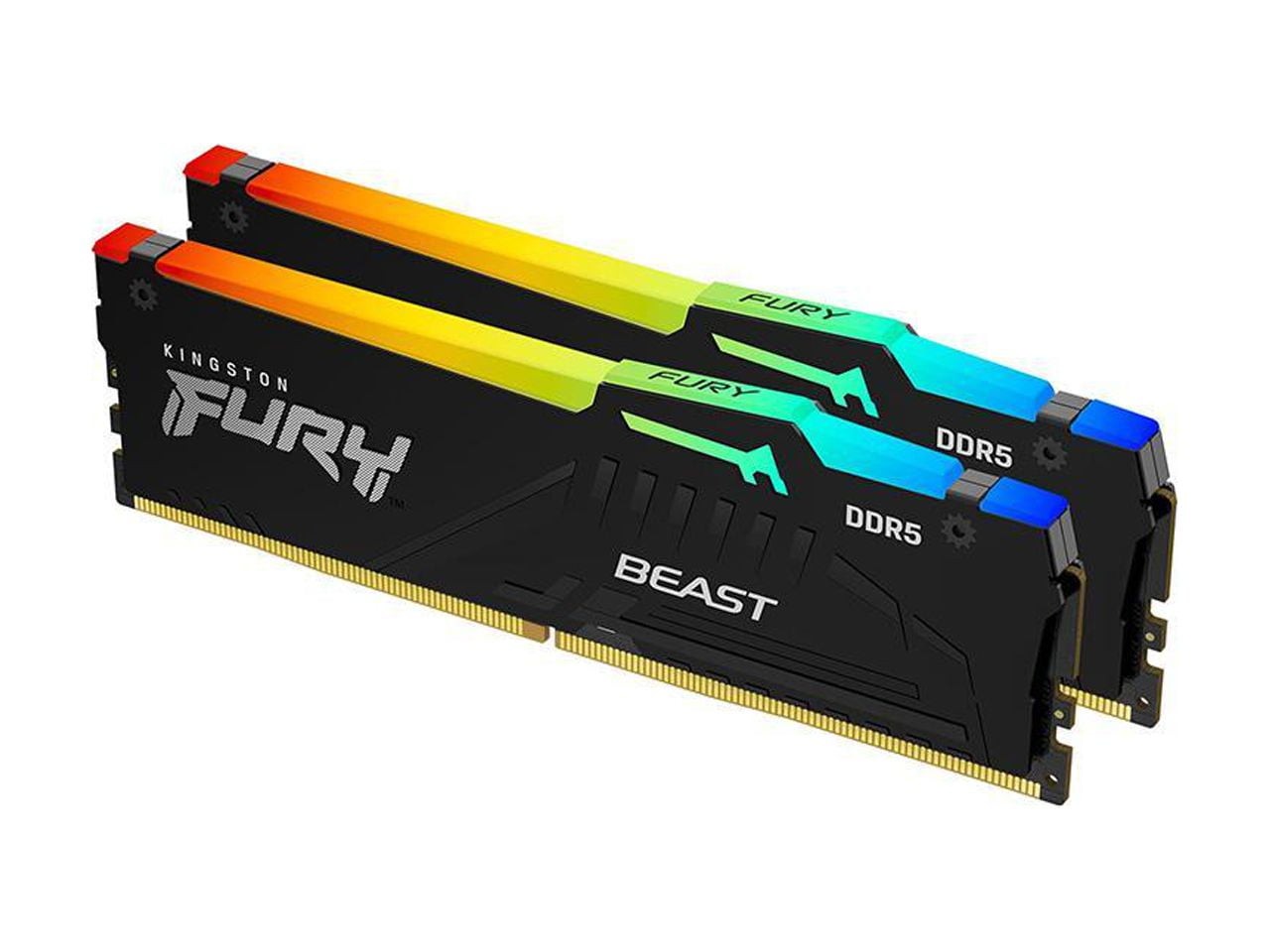

Kingston 64GB [2x32GB] DDR5 6400MT/s CL32 FURY Beast Black RGB EXPO (kf564c32bbeak2-64) Kingston 64GB [2x32GB] DDR5 6400MT/s CL32 FURY Beast Black RGB EXPO (kf564c32bbeak2-64)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Environmental Certification: Hazard Assessment of Perfluorooctane Sulfonate (PFOS)

Environmentally Friendly: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Product Description

This item is brand-new, factory sealed.

KF564C32BBEAK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)
DDR5-6400 CL32 288-Pin DIMM Kit
DESCRIPTION

Kingston FURY KF564C32BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.1 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V

EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V

XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V

XMP Profile #2: DDR5-6000 CL30-36-36 @1.4VCL(IDD)
40 cyclesRow Cycle Time (tRCmin)
48ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)Row Active Time (tRASmin)
32ns(min.)UL Rating
94 V - 0Operating Temperature
0o C to +85o CStorage Temperature
-55o C to +100o CItem Dimension (L"xW"xH")
1 x 5 x 7

Weight
1 lb

Warranty Information
Lifetime SpecificationPhysical CharacteristicsThickness279.9 milForm FactorDIMMLength5.3"Number of WarrantyLifetimeGeneral InformationBrand NameKingstonMarketing Information Kingston FURY KF564C32BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows: FACTORY TIMING PARAMETERS Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V FEATURES Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC Height 1.66" (42.23mm), w/heatsink Product TypeRAM ModuleProduct Name64GB (2x32GB) DDR5 6400MT/s CL32 FURY Beast Black RGB EXPOManufacturerKingston Technology CompanyManufacturer Part NumberKF564C32BBEAK2-64Product LineFURY BeastTitleProduct TitleKingston 64GB [2x32GB] DDR5 6400MT/s CL32 FURY Beast Black RGB EXPO (KF564C32BBEAK264)Technical InformationMemory TechnologyDDR5 SDRAMNumber of Modules2 x 32GBMemory Size64 GBCAS LatencyCL32Memory RankDual-rankMemory Speed6400 MHzRGBYesMemory Voltage1.40 VMemory StandardDDR5-6400/PC5-51200Error CheckingNon-ECCSignal ProcessingUnbuffered Shipping
