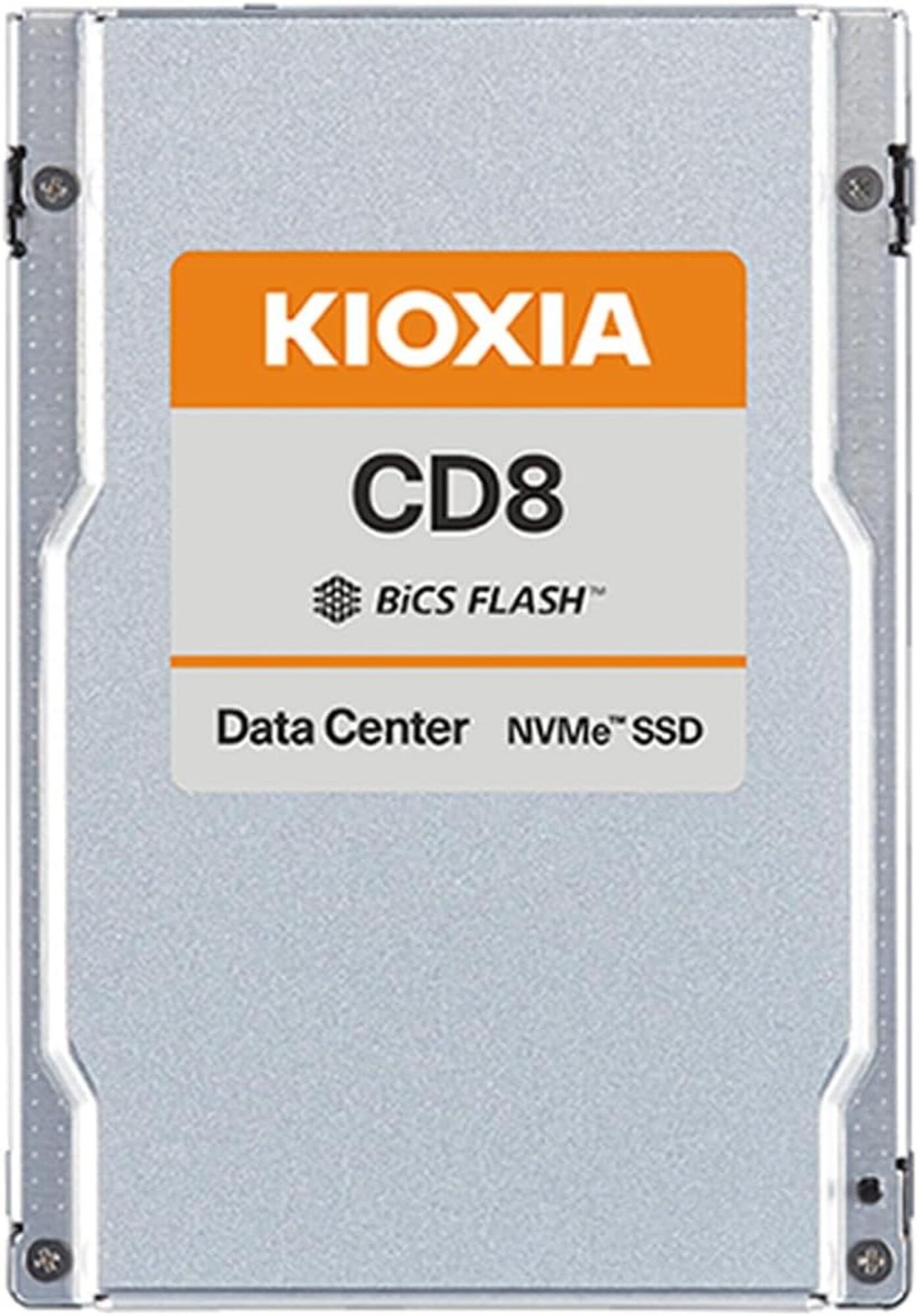

Image is an illustration, may not reflect the exact product sold. Kioxia America - KCD8XRUG1T92 - KIOXIA CD8-R KCD8XRUG1T92 1.88 TB Solid State Drive - 2.5 Internal - PCI Express NVMe 1333.80
KIOXIA CD8-R Series is a read intensive data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe®4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
- PCIe 4.0, NVMe 1.4 specification compliant
- Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mmthickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Detail Specifications
SIE Model Number
KCD8XRUG1T92
Capacity
1, 920 GB
5-inch, 15mm thickness
lnterface
PCIe 4.0, NVMe TM 1.4
Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)
Flash Memory Type
BiCS FLASH TM TLC
Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
7, 200 MB/s
Sustained 128 KiB Sequential Write
3, 500 MB/s
Sustained 4 KiB Random Read
1, 250K IOPS
Sustained 4 KiB Random Write
150K IOPS
Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %
Power Consumption (Active)
13 W typ.
Power Consumption (Ready)
5 W typ.
Reliability
MTTF
2, 500, 000 hours
DWPD
1
Environmental
Temperature (Operating)
0 o C to 75 o C
Temperature (Non-operating)
-40 o C to 85 o C
Humidity (Operating)
5 % to 95 % R.H.
Vibration (Operating)
21.27 m/s 2 ( 2.17 Grms ) ( 5 to 800 Hz )
Shock (Operating)
9.8 km/s 2 ( 1, 000 G ) ( 0.5 ms )
Item Dimension (L inchxW inchxH inch)
4 x 3 x 1
Weight
1 lb
Warranty Information
5 Years
Product Details Manufacturer Kioxia America Mfr Part KCD8XRUG1T92 Weight 1.0000 UPC
