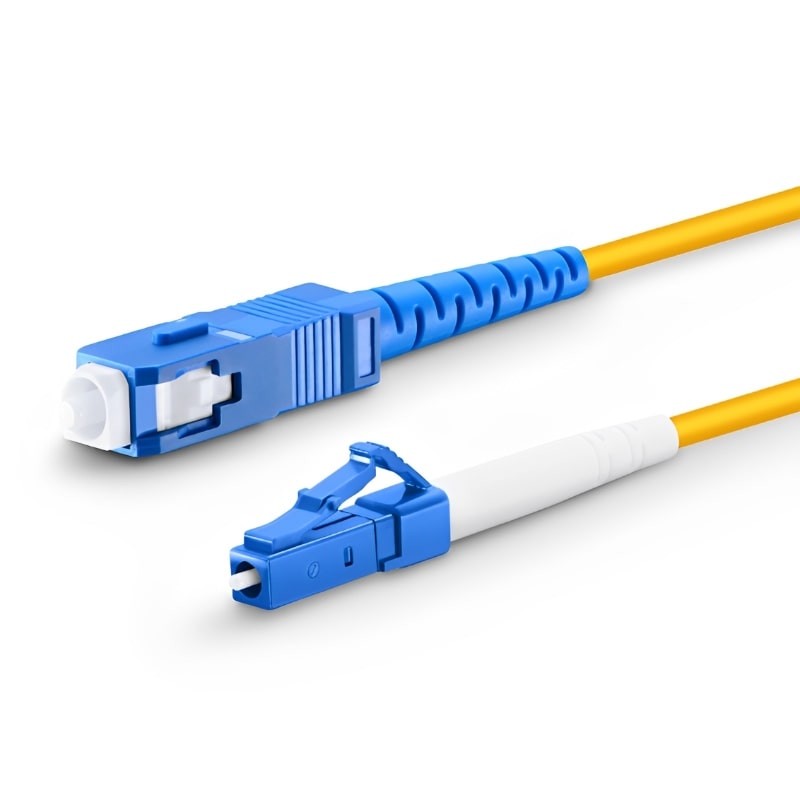

LC-SC UPC OS2 Single Mode Simplex Fiber Patch Cable | 9/125µm | OFNR Riser Rated For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable
Specifications Connector Type LC UPC to SC UPC Fiber Grade G.657.A1 (Compatible with G.652.D) Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Insertion Loss ≤0.3dB Return Loss ≥50dB Min. Bend Radius (Fiber Core) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Attenuation at 1310 nm 0.36 dB/km Attenuation at 1550 nm 0.22 dB/km Fiber Count Simplex Cable Diameter 2.0mm Cable Jacket PVC Polarity A (Tx) to B (Rx) Operating Temperature -20~70°C Storage Temperature -40~80°C
