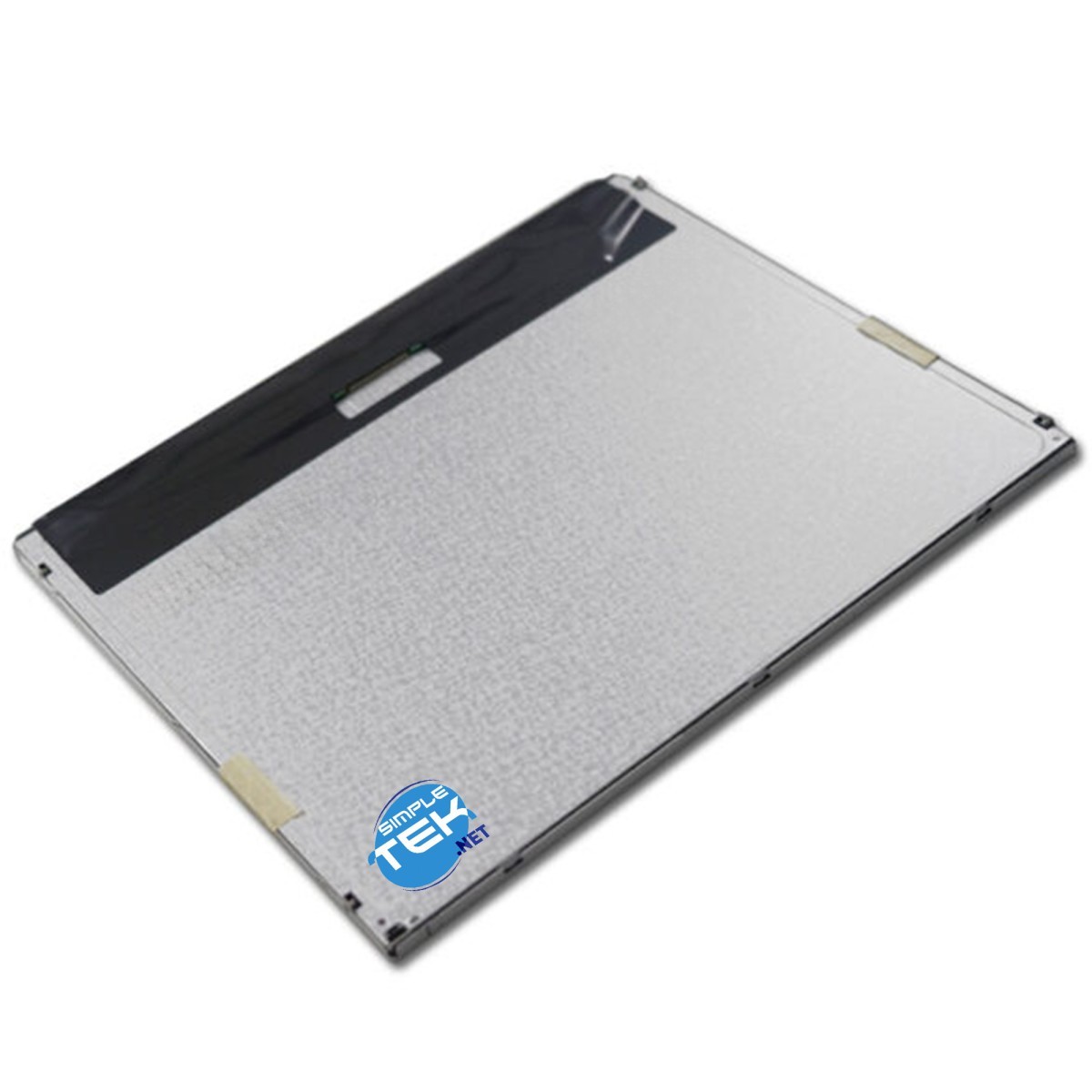

LCD Display Panel 17" 5:4 Square M170ETN01.1 With LVDS 30 Pin Cables
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
LCD Display Panel 17" 5:4 Square M170ETN01.1 With LVDS 30 Pin Cables
Price: IT $212.83

PLEASE NOTE THAT YOU ARE PURCHASING A PRODUCT FROM ANOTHER COUNTRY AND WILL THEREFORE BE SUBJECT TO CUSTOMS DUTIES

LCD Display Panel 17" 5:4 Square M170ETN01.1 With LVDS 30 Pin CablesThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.

LCD PANEL DISPLAY SCREEN 17" 5:4 SQUARE M170ETN01.1 WITH 30 PIN LVDS CABLES

Simpletek code: 20198

Conditions: NEW - New and never used product. Impeccable condition and without signs of wear.

Warranty: 12 months



Description

The AUO M170ETN01.1 is a 17″ TFT-LCD panel (1080 × 1024, 5:4 ratio) designed for desktop monitors, all-in-ones and industrial systems. It features edge-lit LED backlighting, dual-channel 30-pin LVDS interface, and requires an external controller. It has compact dimensions, scratch-resistant finish and slim design (~10 mm), perfect for direct replacements in Simpletek systems. It does not have a touch screen or built-in USB drivers.

⚙️ Technical Specifications

  • Format: 17″ (432 mm diagonal), 5:4 aspect ratio, SXGA 1280 × 1024 resolution

  • Backlight: edge-lit LED, 9 strings; consumption ~4.5 W, useful life > 30,000 h

  • Brightness: 250 cd/m² (typical)

  • Contrast: 1000:1 (typical)

  • Viewing angles: 85°/85° horizontal, 80°/80° vertical (CR ≥ 10)

  • Response time: Trise = 3.8 ms; Tfall = 1.2 ms (typ.)

  • Signal interface: dual-channel LVDS 8-bit RGB via 30-pin connector; includes LVDS cables

  • Diet: 5 V DC – LCD 3 W (display) + 4.5 W (LED) = approximately 7.5 W total

  • Size and weight: 358.5 × 296.5 × 10.3 mm (W×H×D); weight ~1.27 kg
