THIS LISTING IS FOR 100 ( ONE HUNDRED) LORAWAN GATEWAYS DESCRIBED BELOWPRODUCT NEW IN ITS BOX - UNUSED

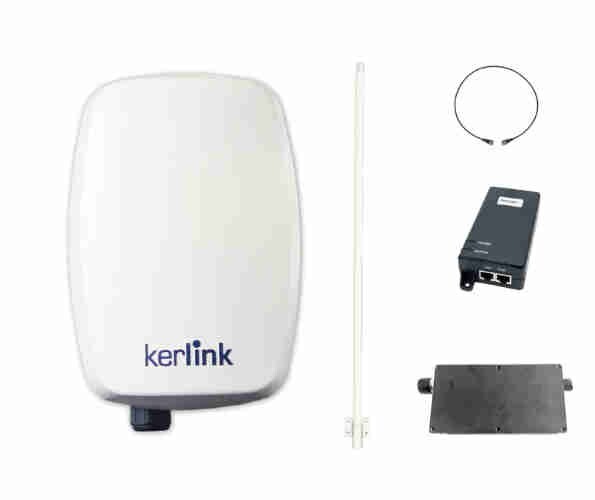

This Kerlink Wirnet iStation LoRaWAN Gateway is an excellent addition to your network. Made in France, it boasts a 915Mhz frequency and comes with an antenna, cavity filter, and POE injector for easy installationThe brand, Kerlink, is known for their high-quality networking products, making this gateway a reliable choice for any user.Whether you're looking to expand your existing network or create a new one, the Wirnet iStation is sure to meet your needs.
The Kerlink iStation outdoor LoRaWAN gateway is the ideal solution for your smart city, smart building or every smart project.With it’s carrier-grade IP67 casing, the iStation outdoor LoRaWAN gateway is perfect for industrial and outdoor use where both simple, fast installation and superior coverage is required.
Bundle Pricing Offer- BUY WHILE THEY LAST !The bundle pricing is based on the following costs:

• iStation Outdoor Gateway (stand alone) = $852
• 3 dBi antenna (only compatible with US915 MHz) = +$80
• Cavity Filter = +$80
•


Additional Benefits :

• 90 days FREE registration of your gateway on the SENZARY LORAWAN NETWORK
• 90 days FREE access to IOTLOGIQ IOT platform , with sensor data visualization immediately
• 50% discount on ABEEAWAY TRACKERS for surveying your coverage
• 50% discount in IOT COVERAGE SURVEY ( 400 USD VALUE)

Key Features

• Outdoor LoRaWAN Gateway
• Carrier-grade casing (IP67) for industrial and outdoor use
• 4G Worldwide module with 3G/2G fallback and Ethernet(RJ45) Backhaul connectivity
• Highly secured device relying on a hardware secure core
• Secure Storage (keys and certificates in secured area) ProvenCoreTM solution
• Easy deployment & mounting
• Fully integrated and internal antennas (GPS, 4G, LoRa), no external antenna installation required (external LoRa antenna as an option)

• Simple and convenient configuration, management, control and update using the Kerlink WanesyTM Management Center
• Battery backup to allow the clean shut down of applications in case of power cut

Kerlink | High performance, reliability & robustness
• Carrier-grade design with excellent heat dissipation
• Semtech Reference Design v1.5 components.
Security HW and SW architecture
• SecureBoot (Signed firmware),
• SecureStorage (keys and certificates in a secured area) using ProvenCore™ solution,
• Secured links and backhaul protection (OpenVPN/IPsec),
• Reboot (watchdog) and recovery to previous Management
config (or factory config if the boot issue is not fixed).

KerlinkWirnet iStation LoRaWAN gatewayis perfectly designed to reliably and seamlessly power outdoor LPWA IoT networks, for massive IoT use cases. ThisLoRaWANgatewaymeets the standard requirements of public operators, MVNOs, cable operators, tower cos, private businesses or public authorities, to deploy evolutive and reliable IoT connectivity. This outdoor gateway immediately connects high volumes of IoT sensors and manages millions of offerirectional messages, every day.

Kerlink exclusive zero-touch provisioning feature eliminates the need of expert radio knowledge, for a plug-and-play user experience . End users enjoy the easy installation, smooth operation, and unique superior coverage of this outdoor gateway.

This IoT gateway also comes with exclusive remote monitoring and advanced radio configuration features, in addition to ethernet or cellular backhauling options. This flexibly helps to adapt to specific network design on the field, to fit to tailored IoT applications. And to support their growth and evolution over time!

The Wirnet iStation is the ideal LoRaWAN gateway for your outdoor deployments

With a strong and robust design, Wirnet iStation has been thought to support your smart city, smart industry, or any other smart project, combining simplicity of outdoor installation, unique superior coverage and operational excellence.

The Wirnet iStation is a LoRaWAN gateway that specifically meets the standard requirements of public operators, MVNOs, cable operators, private businesses or public authorities that want to boost their businesses with IoT and to deploy evolutive and reliable networks, connect high volumes of end-devices, and manage millions of offerirectional messages every day.

The Wirnet iStation is easy to operate, even for non-telecom users

This long-range and low-power gateway comes with exclusive features for its remote monitoring, advanced radio network configuration and backhauling management with Kerlink’sWanesy Management Center: it becomes very easy to operate LoRaWAN network even for non-telecom users.

The Wirnet iStation is also compatible with theWanesy Small Private Networksolution to deploy standalone and self-operating LoRaWANprivate network.

The Wirnet iStation is industry-grade and futureproof

Its ruggedized and streamlined design brings together the best of the Wirnet Station and the optimizations of the i-series LoRaWAN gateways (Wirnet iFemtoCell, iFemtoCell-evolution and iBTS), using the same Software for easier and cheaper integration. The Wirnet iStation grants high availability and performance levels that enable flexible and scalable deployments across many industries.

It embeds:

• Backhaul connectivity: 4G Worldwide module with 3G/2G fallback, and Ethernet (RJ45)
• Fully integrated and internal antennas GPS, 4G, LoRa
• Carrier grade (IP67) casing for industrial use
• 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX,
• Mounting kit allowing simple and quick installation without opening the casing,
• Built-in high-rejection filters for co-localization with other radio devices and enabling strong interference resistance
• PoE injector powered

The Wirnet iStation LoRaWAN Gateway is highly secured

Thanks to its innovative software and hardware architecture and integration ofProve&RunSecureBoot and SecureStorage, Wirnet iStation is highly secured.

When integrated to Kerlink Wanesy Management Center, the configuration, management, update and monitoring is quick and convenient.

WIRNET ISTATION IN YOUR SMART IOT APPLICATION

IoT LoRaWAN Sensor

LoRaWAN communication

Wirnet iStation

Backhaul

Business application

EXAMPLES OF CONFIGURATIONThe Kerlink Wirnet iStation is the best LoRaWAN gateway for your business application

Thanks to its compact and robust design, Wirnet iStation answers the need for connectivity for several use cases. The LoRaWAN network powered by Wirnet iStation has already enabled solutions across the world, such as :

Smart Agriculture solution

Customer has created the world first automated stem-water measuring system based on a LoRaWAN network.

Smart City solution

Partnering with Pilot Things, Kerlink enabled a smart city solution in Bordeaux city that has been 3 times awarded for its innovative and interoperability. It allowed to manage within one IoT network sensors on public lighting systems, wastebin collectors and water meters.

Universal Contact Tracking solution

By teaming up with Senzary, a specialist in IoT digital twin, a solution to fight the spread of Covid19 pandemic has been created. Based on LoRa sensors and digital twins, the network solution has provided a reliable, future-proof, and anonymized solution.

Technical DocumentationDownload Datasheet
