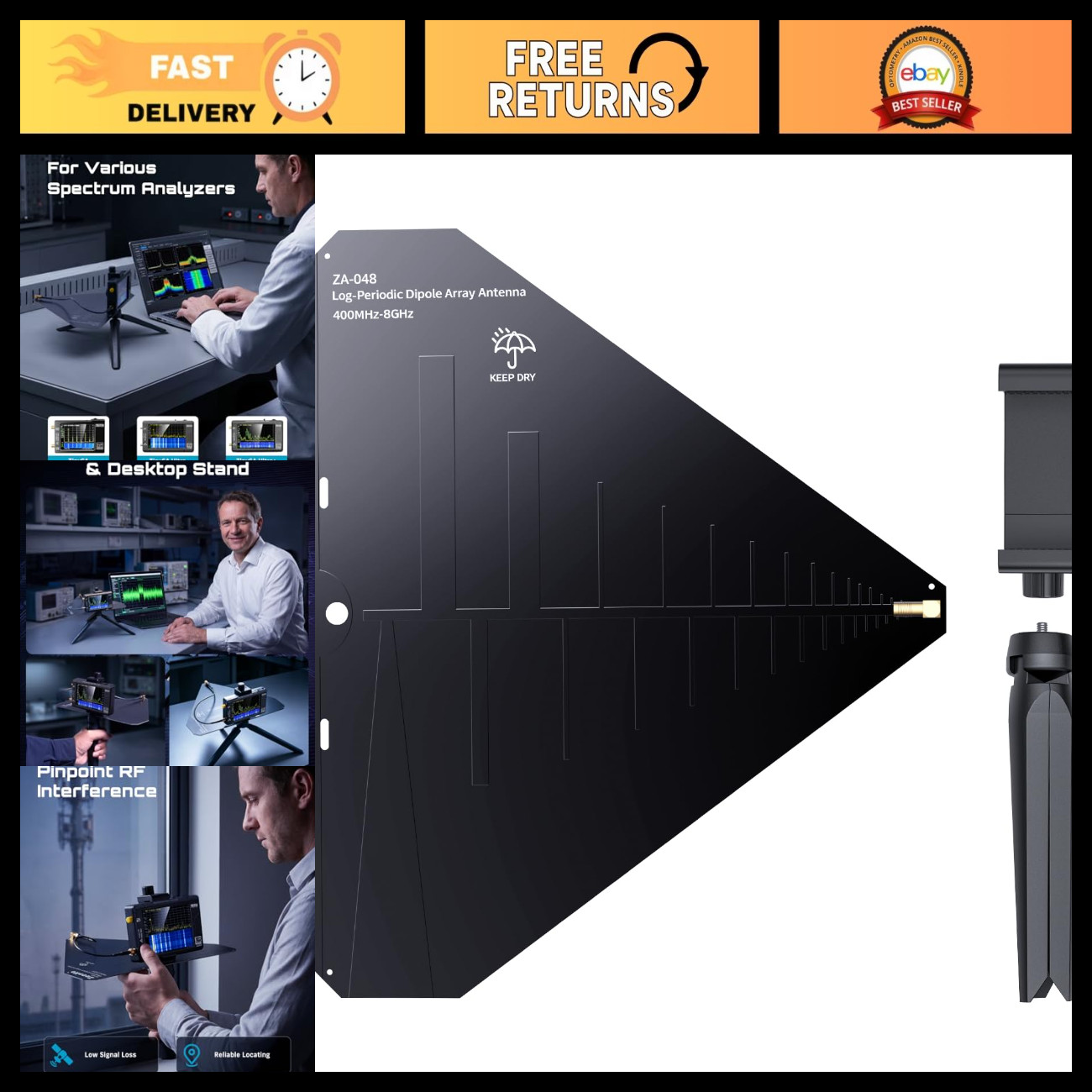

ZA-048 Log-Periodic Antenna

The ZA-048 is a cutting-edge printed Log-Periodic Dipole Array (LPDA) antenna designed for versatility and performance. Its optimized design reduces size, making it perfectly compatible with various spectrum analyzers and ideal for radio direction finding.

Key Features:

• Wide Frequency Range: Operates within an ultra-wide band of 400 MHz to 8 GHz, providing continuous coverage across low to high frequencies.
• Impedance & VSWR Characteristics: Nominal input impedance of 50Ω with excellent return loss performance. Above 1 GHz, return loss is about 10dB or lower; within 400MHz to 1GHz, around 4.5dB or lower.
• Direction-Finding Performance: Designed for effective radio direction finding in the 1 GHz to 8.5 GHz range, offering great sensitivity for locating signal sources.
• Stable Tripod Bracket: Features a tripod support structure with an adjustable clamp compatible with various models, ensuring a professional setup for RF signal direction finding.
• Portable and Compact Design: Lightweight and easy to carry, making it perfect for outdoor mobile testing and on-the-go applications.

Benefits:

• Supports wide-range spectrum scanning and spatial interference investigation.
• Adapts to most RF detection and direction finding scenarios.
• Stable enough for stationary desktop testing while remaining portable for field use.

Package Includes:

• 1x LPDA Antenna (400 MHz-8 GHz)
• 1x Lightweight Tripod Stand
• 1x Adjustable Spectrum Analyzer Clamp (TinySA ULTRA+ not included)

This antenna is an excellent choice for anyone needing a broadband solution that combines compatibility, portability, and high performance in RF applications.</
