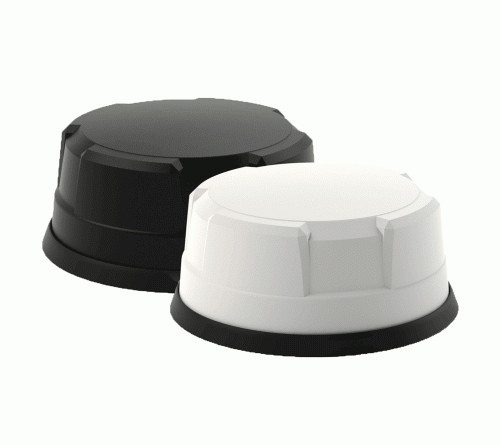

LPMDM4-6-60-24-58 "Great White" High Gain 4 x 4 MiMo 2G/3G/4G/5G and 2 x 2 MiMo WiFi Vehicle Antenna - White LPMDM4-6-60-24-58 "Great White" High Gain 4 x 4 MiMo 2G/3G/4G/5G and 2 x 2 MiMo WiFi Vehicle Antenna - WhiteGreat White 5G 6 in 1 Antenna
The LPMM4-6-60 – “Great White” is a range of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz.
To suit modems with 4 x 4 MiMo such as Digi, Cradlepoint etc.
This model comes with 4 x 30cm Cables and SMA connectors. Extension options available
This version of the LPMM4-6-60 consists of Four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE/5G frequencies. Additionally 2 x 2 WiFi.
None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Features
- Low profile antenna
- 4×4 MiMo 4G/5G LTE cellular for Modems with 4 x 4 MiMo or 2 of 2 x 2 MiMo in a failover setup.
- Kits with extension cables available for a range of LTE routers
Application
- 4WD
- Police Car
- Ambulance
- Public Bus
- Transportation
- Fire and Rescue class="ulList">
- Panel Mount
- Single Hole Installation
- Ground Plane Independent (Fit on plastic or metal panel)
Electrical DataLTE Frequencies617-960/1710-6000MHzPeak Gain (dBi)10LTE MiMo4×4WiFi MiMo2×2Max Input Power (W)20PatternOmni-directionalGround Plane IndependentYesMechanical DataAvailable ColoursBlack or WhiteHeight (mm)75Diameter (mm)176Operating Temperature-40 / +80°CMounting DataMounting TypePanel MountMounting Method18mm (3/4″) Mounting BushApprovals DataIP RatingIP69K
Spec Sheet: LPMM4-6-60 (Sheet contains full range of antennas)
