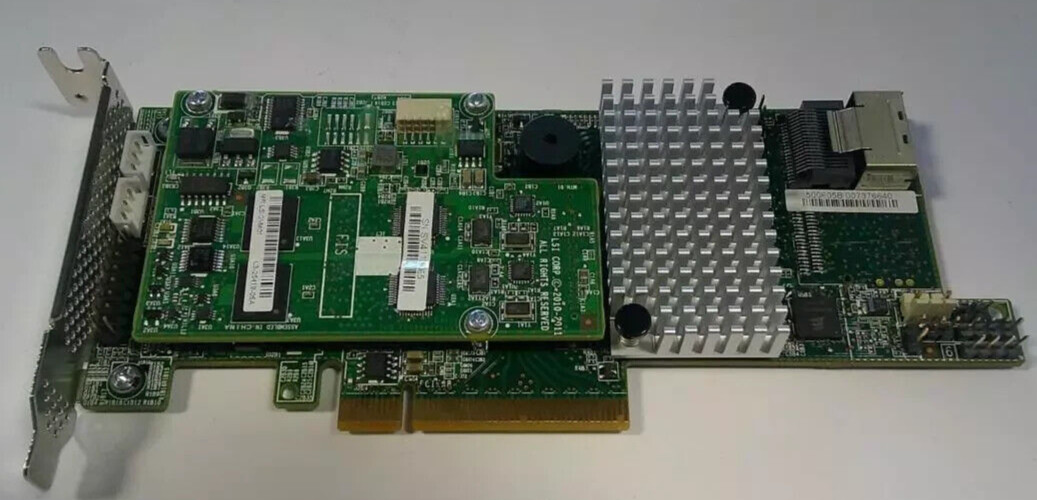

LSI MegaRaid MR SAS9271-4i L3-25413-17C 6Gb/s SAS Controller Card low profile For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Specifications: MegaRAID SAS 9271-4i SpecificationsSolution ProvidedFour-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)Physical DimensionsMD2 Low profile (6.6” X 2.536”)ConnectorsOne Mini-SAS SFF8087 internal connector (side mount)Device SupportUp to 128 SAS and/or SATA hard drives and SSDsHost Bus Typex8 lane PCI Express 3.0 compliantData Transfer RatesUp to 6Gb/s per portI/O Processor/SAS ControllerLSI SAS 2208 Dual-Core RAID on Chip (ROC)Cache Memory1 GB 1333MHz DDRIII SDRAMCache ProtectionMegaRAID CacheVault flash cache protection (optional – LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)Key RAID Data Protection Features
RAID levels 0, 1, 5, and 6
RAID spans 10, 50 and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SSD Support with SSD Guard™ technology
Patrol read for media scanning and repairing
64 logical drive support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible Hot Spare support
