LSI SAS9211-8i 8-Port SAS/SATA HBA – P20 IT Mode
This listing is for one genuine LSI SAS9211-8i 8-port HBA configured for direct-drive use with ZFS, TrueNAS, Unraid, Proxmox, Linux, and other storage platforms.
These are new / unused cards that were never placed into production service. They have been professionally configured, firmware-updated, and fully tested before sale.
Two cards are available. The PCB layout and appearance may vary slightly between the two units, but both are genuine SAS9211-8i / SAS2008-based controllers and are configured and tested to the same specifications.
Firmware / Configuration
Each card has been flashed and verified with the final LSI P20 firmware stack:
Firmware Mode: IT Mode
Firmware Version: 20.00.07.00
Legacy BIOS: 07.39.02.00
UEFI BSD ROM: 07.27.01.01
Controller: LSI SAS2008
Board: SAS9211-8i
Original SAS address preserved
PCIe 2.0 x8
6Gb/s SAS / SATA support
8 total drive lanes via 2x SFF-8087 connectors
This is a complete firmware configuration with both legacy BIOS and UEFI support.

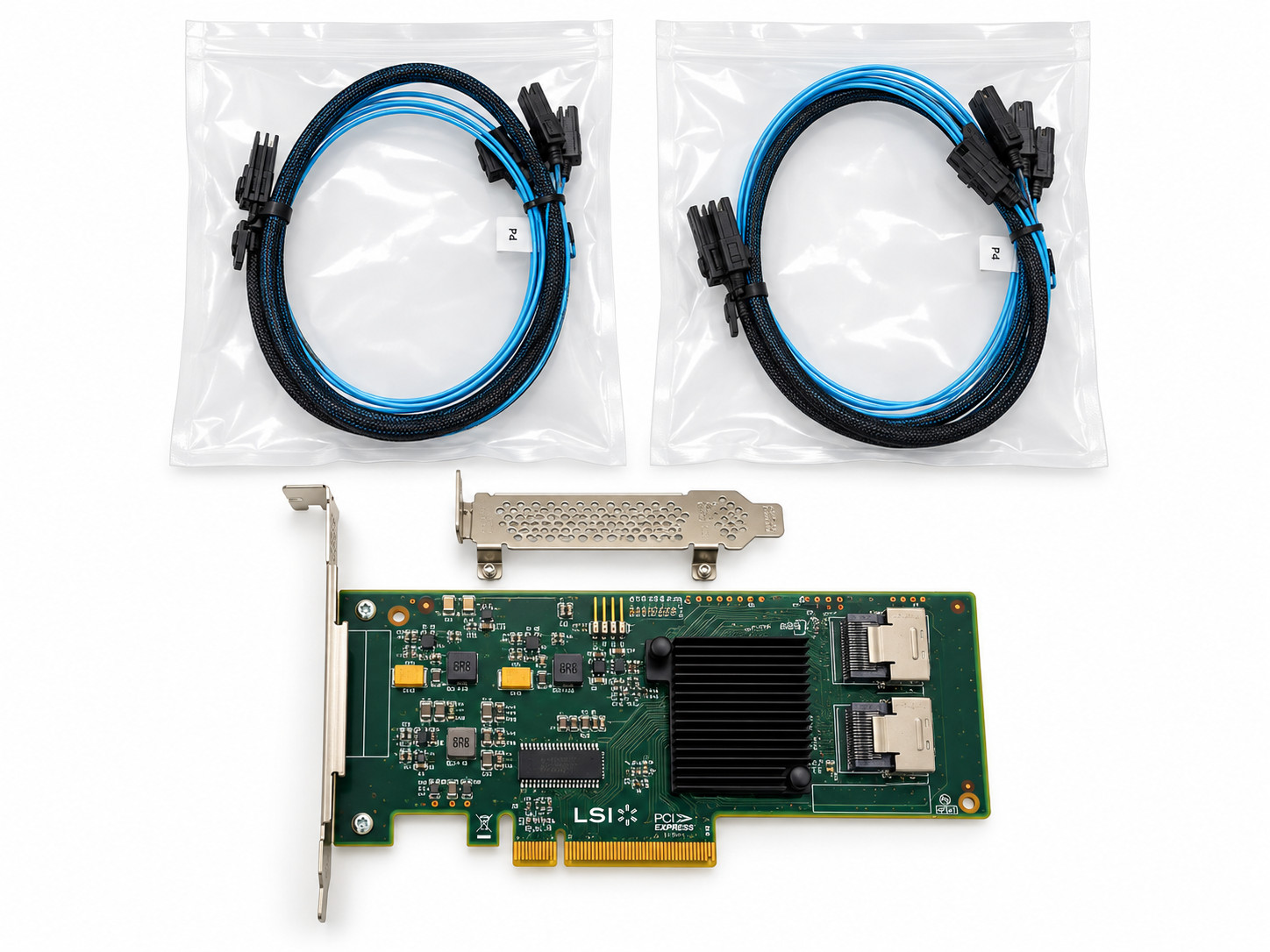

Included
Each purchase includes:
1x LSI SAS9211-8i HBA
1x Full-height mounting bracket
1x Low-profile mounting bracket
2x Cable Matters SFF-8087 to 4x SATA forward breakout cables
The included breakout cables allow connection of up to 8 SATA drives directly from the controller.
Testing
Each controller has been individually tested before listing.
Testing included:
Controller detection and firmware verification
SAS address verification
Both SFF-8087 ports tested
SATA drives detected directly through the HBA
ZFS mirror created using test drives
Multi-gigabyte read/write testing completed
ZFS pool remained ONLINE
0 read errors
0 write errors
0 checksum errors
The cards were tested in true IT-mode operation with drives presented directly to the operating system.
Applications
These controllers are well suited CORE / storage servers
NAS systems
Software RAID
JBOD / direct disk access
Home lab and enterprise storage applications
About the Seller
I am a retired IT professional with more than 30 years of industry experience, including work with Fortune 100 companies.
My background includes:
I do not simply resell untested surplus hardware. Each controller is inspected, configured, firmware-verified, and functionally tested before listing.
If a piece of hardware does not test correctly, I do not sell it as working equipment.
Multiple Quantity Discount
There are two controllers available.
A quantity discount is available when purchasing both units in the same order.
Condition / Appearance
These cards are new / unused, but they have been handled for firmware configuration and testing.
Because two units are available, the exact PCB layout, labels, heatsink style, or minor cosmetic details may vary slightly from the primary photos. Both units have the same controller family, firmware configuration, functionality, and included accessories.
Please review all photos for representative condition and included items.
