LSI Logic LSI20320IE PCI Express Ultra320 SCSI controller lot.
Pulled from a working system. Photos are of the actual items.
What’s included

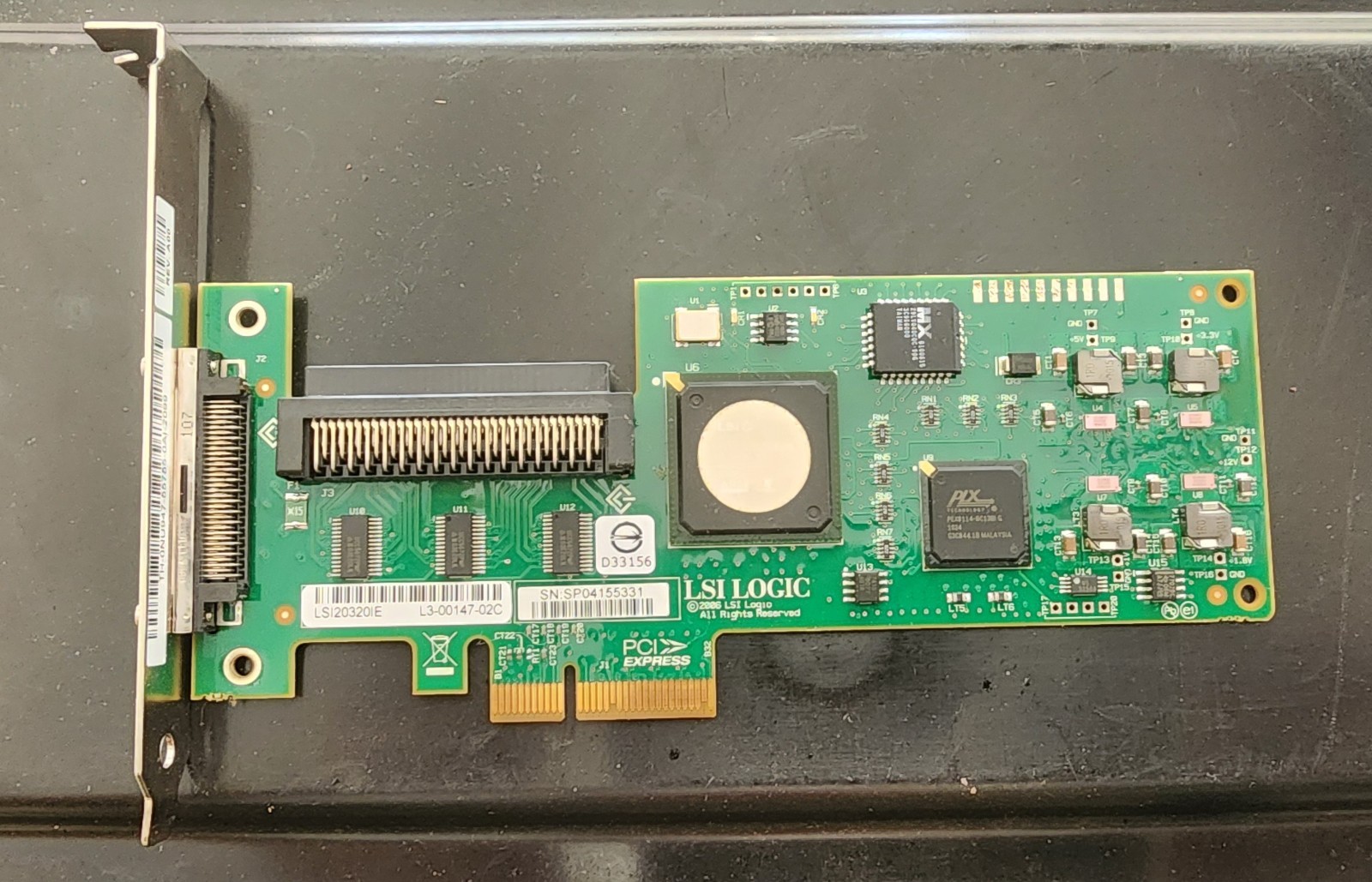

- LSI Logic LSI20320IE PCIe x4 Ultra320 SCSI HBA
P/N: LSI20320IE / L3-00147-02C
S/N: SP04155331
Full-height bracket marked SCSI CHANNEL LVD/SE
External 68-pin VHDCI + internal 68-pin HD connector - Internal Ultra320 LVD SCSI cable
Controller-end connector labeled CONTROLLER
Two blue 68-pin device connectors
Built-in terminator board marked ULTRA 320 - SCA-80 to 68-pin Ultra320 adapter
Marked Ultra 320/m SCSI Compliant / S8068LS320
80-pin SCA connector for hot-swap SCSI drives
68-pin HD connector, 4-pin Molex power, ID/LED/SYN/DLY/MTR jumpers
Card specs
- Single-channel Ultra320 SCSI — up to 320 MB/s
- PCI Express x4 (PCIe 1.0a), Fusion-MPT architecture
- LVD and single-ended (SE) compatible
- Up to 15 SCSI devices
- Universal LVD/SE termination
- MD2 form factor; this unit has the full-height bracket
- Assembled in Thailand; ©2006 LSI Logic
Good for attaching legacy Ultra320 / Ultra160 / Ultra2 SCSI hard drives, tape, scanners, or JBODs to a modern PC with a PCIe slot. Backward compatible with older Wide SCSI devices (bus speed drops to the slowest device).
ConditionUsed. Board is clean with normal handling marks. Cable jacket is worn and wrapped with heat-shrink as shown. SCA adapter shows typical use. Not tested in my current system — sold as pictured. No original box, no low-profile bracket, no external SCSI cable.
Notes
- This is an HBA, not a hardware RAID card.
- Mix LVD and SE devices on the same channel and the whole bus falls back to SE speed.
- Use the Ultra320-rated cable/terminator for full 320 MB/s.
- SCA adapter lets you run an 80-pin SCA-2 drive on a standard 68-pin internal cable (set SCSI ID on the jumpers; supply Molex power).
Local pickup in the Charlotte, NC area available if you want to inspect it first.
