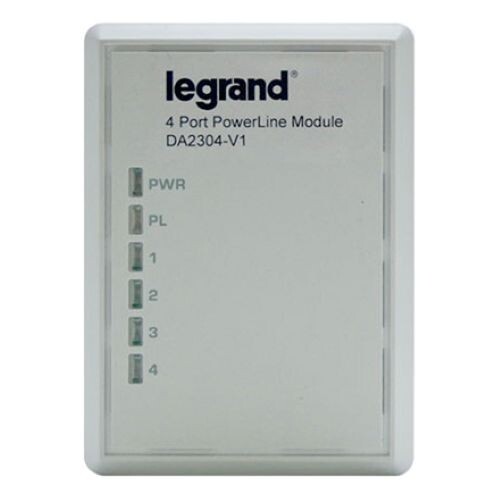

Legrand DA2304-V1 4-Port Powerline Network Adapter
Deliver high-speed internet using the Powerline NetworkAdapter. This handy device can plugs into any home outlet and will speedconnections for internet-capable TVs, Blu-ray players, computers, set-topboxes, and gaming systems-from one power line.
Deliver the Best – A professionally installed wiredEthernet network is the best solution to future-proof a home network for thefastest speeds. It is most cost effective when installed in a new home’sstructured wiring system.
Wonderful Wireless – Wireless networks use the Wi-Fistandard to transmit data to mobile devices around the home. The HomePlug AVstandard allows a wired Ethernet network to be expanded over the existingelectrical power lines in the home. These networks utilize Cat 5e, Cat 6, orCat6e twisted pair cable to transmit data around the home.
Specifications
- Cable Type: Cat 5 UTP
- Color: White
- Type: Powerline Ethernet Bridge
- Installation Location: Wall Outlet
Dimensions
- Height Metric: 3.3 cm
- Height (U.S.): 1.3″
- Length (U.S.): 4.13″
- Length Metric: 10.5 cm
- Width Metric: 7.6 cm
- Width (U.S.): 3″
- AC Voltage Input: 100-240VAC 50/60Hz
- External Power Input viaAC Outlet
- Frequency: 2 - 50 MHz
- Humidity: 10 to 90% maximum (non-condensing)
- LAN Ports: 4x RJ45
- Mounting: NEMA 5-15R outlet
- Operating Temperature (Celsius): 0°C to 40°C
- Operating Temperature (Fahrenheit): 32°F to 104°F
- Storage Temperature: -20°C to 70°C
- Supported Standards HomePlugAV Powerline certification, CE mark, IEEE 1901
- Connector Type (End One): RJ45 Female Jack
- Connector Type (End Two): NEMA 5-15R Male
- FCC Standard
- Fed Spec Number: FCC Class B
- UN SPS C: 43222612
Legrand is the world specialist in products and systems forelectrical installations and information networks, offering solutions for usein residential, commercial and industrial buildings. They are building upon alegacy of providing smart solutions to customer needs. Through a commitment tounderstanding each and every customer, Legrand continues to add value throughinnovation – making systems energy-smart, installer friendly while providingsignificant life-cycle benefits.
