well-configured, modern V3 system, this isnot entry-level

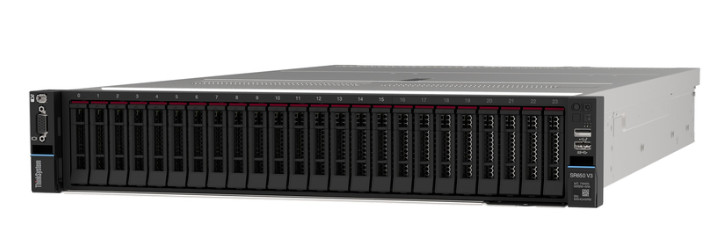

This is a Lenovo ThinkSystem SR650 V3 enterprise server, originally purchased as a replacement unit after a facility loss. Due to a strategic decision to sell the business property, the server was never placed into service.

This unit is effectively new and unused, with only minimal IT staging performed (no production use).
Server Summary

• Model:ThinkSystem SR650 V3, 2U rack chassis with up to 24 × 2.5" drives.

• Operating Mode / Environment:Efficiency--Favoring Performance Mode; Data Center environment at 25 °C / 77 °F

• CPU:Dual Intel Xeon Silver 4514Y processors, each 16 cores at 150W, ~2.0GHz

• Memory:64 GB total – 4 × 16 GB TruDDR5 RDIMM, 5600 MT/s (1Rx8)

• Storage:
   • RAID controller: ThinkSystem RAID 940-16i, Gen4, 12Gb, 4GB flash
   • Front storage: 2 × 960GB Read-Intensive SATA SSDs in RAID 1
   • Mixed-use storage: 5 × 1.92TB SATA SSDs, no RAID (unconfigured array)

• Backplane / Bays:2 × 8-bay (8 × 2.5") SAS/SATA backplanes

• PCI / Networking:Broadcom 5719 4-port 1GbE OCP Ethernet adapter; Gen5 PCIe riser(s) (x16/x8/x8) in riser slot(s)

• Power / Cooling:Dual hot-swappable 750W Platinum power supplies (230V/115V), standard 2U V3 fan modules

• OS & Licenses:Windows Server 2025 Standard Additional License (16 core) (No Media/Key) included; XClarity XCC2 Platinum Upgrade included

  • Includes: 20 Client Access Licenses

• Security / Management Features:TPM 2.0 with Secure Boot; Lenovo XClarity management; onboard management and firmware modules

• Warranty / Service:3-Year Premier Next Business Day Response; KYD (Keep Your Drive) add-on.

Server Details

Base

1 × ThinkSystem V3 2U 24x2.5" Chassis

1 × Operating mode selection for: "Efficiency - Favoring Performance Mode"

1 × Data Center Environment 25 Degree Celsius / 77 Degree Fahrenheit

Processors

2 × Intel Xeon Silver 4514Y 16C 150W 2.0GHz Processor

Memory

4 × ThinkSystem 16GB TruDDR5 5600MHz (1Rx8) RDIMM

Storage

1 × Select Storage devices - configured RAID

1 × ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 12Gb Adapter

1 × Controller 1 HW RAID Array 1 RAID 1

2 × ThinkSystem 2.5" VA 960GB Read Intensive SATA 6Gb HS SSD v2

1 × Controller 1 Array 2 No RAID

5 × ThinkSystem 2.5" VA 1.92TB Mixed Use SATA 6Gb HS SSD v2

2 × ThinkSystem 2U 8x2.5" SAS/SATA Backplane

OS & Software

1 × Windows Server 2025 Standard Additional License (16 core) (No Media/Key) (POS Only)

1 × Lenovo XClarity XCC2 Platinum Upgrade (FOD)

1 × Windows Server 2025 Standard Additional License (16 core) (No Media/Key) (POS Only)

1 × Windows Server 2025 Standard (16 core) - English

1 × Registration only

1 × Windows Server 2025 Standard (16 core) - English

1 × Drop-in-the-Box

1 × Preload

PCI

1 × ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter

1 × ThinkSystem SR650 V3 x16/x8/x8 PCIe Gen5 Riser1 or 2 v2

Power

2 × ThinkSystem 750W 230V/115V Platinum Hot-Swap Gen2 Power Supply v3

2 × 2.8m, 10A/120V, C13 to NEMA 5-15P (US) Line Cord

Others

6 × ThinkSystem 2U V3 Standard Fan Module

1 × ThinkSystem 2U V3 EIA Latch Standard

1 × XCC Platinum

1 × ThinkSystem SR650 V3 MB

1 × SR650 V3 Laser service indicator

1 × RAID Configuration

1 × Trigger MFG to scan the SN from the CPU Board via this MI

1 × Windows Specify

1 × Preload Specify

1 × Drop-in-the-Box Specify

2 × Controller 1 HW RAID Array 1 HDDs

5 × Controller 1 HW RAID Array 2 HDDs

1 × Top Choice flag

5 × ThinkSystem 1x1 2.5" HDD Filler

2 × ThinkSystem MCC CPU Clip

2 × ThinkSystem SR650 V3 AL Extrusion Entry Heatsink

1 × ThinkSystem 2U MS 3FH Riser Filler

1 × ThinkSystem 2U V3 EIA right with FIO

1 × ThinkSystem logo Label

1 × ThinkSystem 2U Main Air Duct

1 × Right EIA with FIO assembly

1 × ThinkSystem 750W Pt Power Rating Label WW

1 × ThinkSystem SR650 V3 Service Label for WW

1 × ThinkSystem SR650 V3 model name Label

2 × ThinkSystem 2U MS 24x2.5" SATA/SAS HDD Type Label1

1 × ThinkSystem SR650 V3 Agency Label No ES mark

1 × ThinkSystem RAID 930/940 SuperCap

1 × ThinkSystem HV 2U WW General PKG BOM

1 × ThinkSystem SR650 V3 Firmware and Root of Trust Security Module v2

1 × ThinkSystem small Lenovo Label for 24x2.5"/12x3.5"/10x2.5"

1 × ThinkSystem Response time Service Label LI

1 × ThinkSystem 2U MS 3FH Riser 1&2 Cage w/Label1

1 × MI for PXE with RJ45 Network port

1 × MS 2FH Riser Filler

1 × XCC Label

1 × ThinkSystem 4x1 2.5" HDD Filler

1 × ThinkSystem 8x1 2.5" HDD Filler

1 × ThinkSystem 1U SuperCap Cable from Riser3 to SFF RAID

1 × ThinkSystem V3 2U SFF C0 (RAID) to Front 8x2.5" BP2,SFF to CPP Exp

1 × ThinkSystem V3 2U SFF C0 (RAID) to Front 8x2.5" BP1

2 × ThinkSystem V3 2U Power Cable from MB to Front 2.5" BP v2

1 × ThinkSystem WW Lenovo LPK

1 × N+N Redundancy With Over-Subscription

1 × Low voltage (100V+)

1 × G5 x16/x8/x8 PCIe Riser BPQU for Riser 1 Placement

1 × Configuration ID 01

1 × ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 12Gb Adapter Placement

1 × Controller 01

1 × Configuration ID 01

Security

1 × TPM 2.0 with Secure Boot

1 × Enable IPMI-over-LAN

Services

1 × 3Yr Premier NBD Resp SR650 V3

1 × 3Yr KYD Add-On SR650 V3
