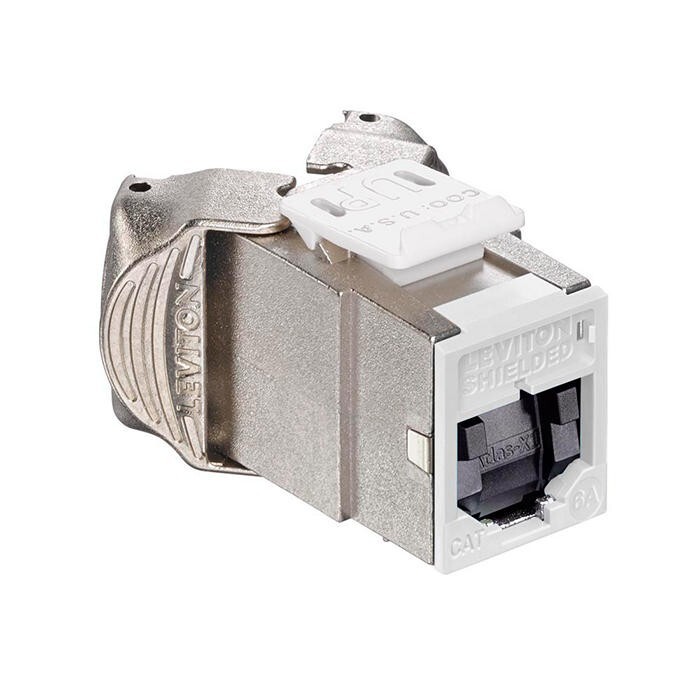

Leviton 6ASJK-SW6 Atlas-X1 Cat 6A Shielded Quickport Jack with Shutters White Click Thumbnails to EnlargeDESCRIPTION
• Atlas-X1 Cat 6A Shielded Quickport Jack with Shutters White.
APPLICATION
• The ATLAS-X1 Category 6A Component-Rated Shielded QUICKPORT Jack supports 10GBASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 6A shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI and/or security may be a concern.
FEATURES
• Independently tested and guaranteed to exceed all component, permanent link, and channel margins.
• Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity.
• For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects.
• Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression.
• Unique design supports tool-free termination/re-termination and requires no specialized termination tool.
• Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.).
• Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types.
• Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity.
• Available in 13 ANSI/TIA-606-C compatible colors.
• Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions.
• Jack with internal shutter protects against dust and debris.
• Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications.
• Tine geometry prevents arcing damage where plug and jack make contact.
• Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously.
• ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) Brand Name: Leviton
PRODUCT SPECIFICATIONSPart Number 6ASJK-SW6Product TypeShielded jackwith Shutters
MaterialDie-Cast Zinc
ColorWhiteNumber of Ports
1Category Rating
Cat Shutters
Spring-Wire Contacts
High-quality copper-basedalloy plated with 50 micro-inches of goldfor lowest contact resistance and maximum life
