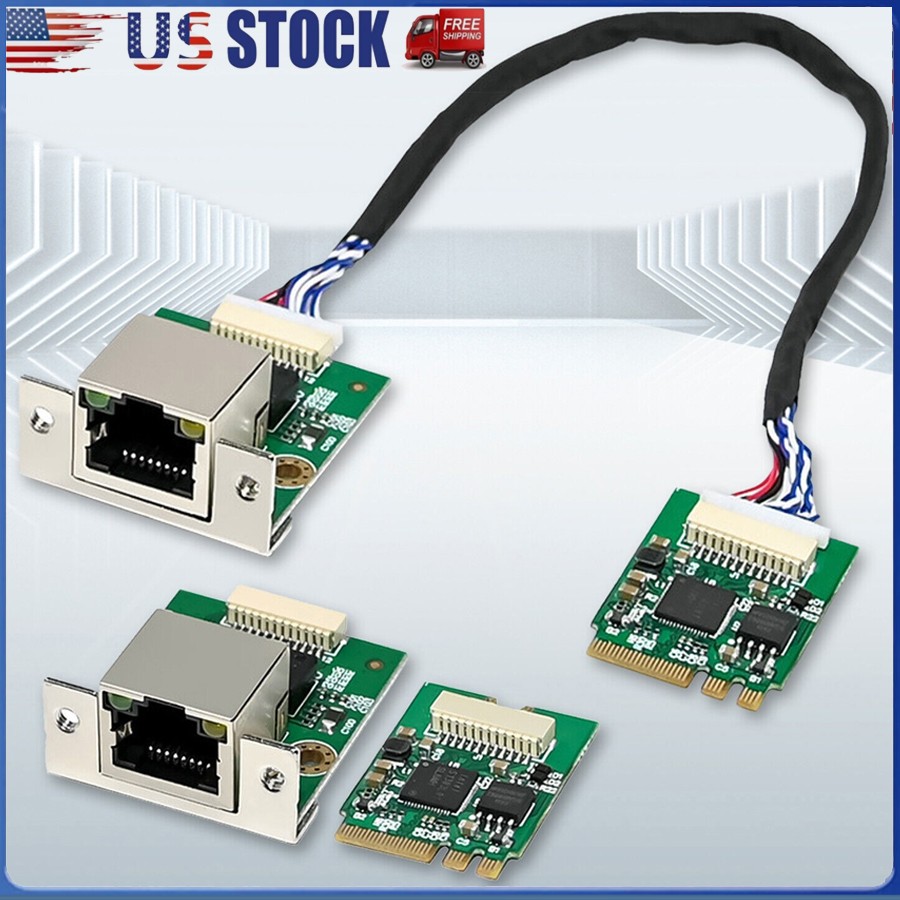

M.2 A+E 2.5GbE Intel I226-V Ethernet. NIC Card Multi-Gig 2.5G/ 1G/100M NGFF 2230
The M.2 A+E key Intel I226 2.5GbE Network Card, featuring the advanced Intel I226-V high-performance network controller. This controller, equipped with a Base-T copper networking interface, offers a compact, single-port solution for integrated multi-gigabit connectivity, supporting speeds of up to 2.5Gbps. Compliant with IEEE802.3 Ethernet standards, it provides seamless compatibility for 2500BASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-TE connections. Additionally, it boasts compatibility with Intel vPro technology on specific Intel platforms. Engineered for versatility, this network card is ideal for use in mobile devices, desktops, workstations, value-servers, and industrial designs where space is at a premium
Product Features:
?* Compliant with PCI Express specification Revision 3.1(5GT/s)
?* Compliant with M.2 Key A+E NGFF card Electromechanical Specification
?* Compatible with M.2 Key A/E (2230) card Electromechanical Specification
?* MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
?* Complies with single port 1GbE RJ45 port (copper)
?* Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE application (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3)
?* 3 Auto-negotiator
?* 3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames
?* Automatic cross-over detection function (MDI/MDI-X)
?* IEEE 1588 Protocol and 802.1AS implementation
?* Supporting Time Sensitive Networking (TSN) Capabilities
?* Support IEEE802.3az - Energy Efficient Ethernet (EEE)
?* Full Wake-On-Lan support
?* TCP/UDP, IPv4 checksum offloads (Rx/Tx)
?* Transmit Segmentation offloading (TSO) (IPv4,IPv6)
?* Support for packets up to 9.5KB Jumbo Frames
Order DetailsShipmentReturn responseAbout USOrder Details
· Provide valid and sufficient address.
We are not responsible for undeliverable address. We will charge the shipping fee for returned items due to wrong address provided by buyer.
· Provide CPF/CNPJ/EORI/RUT (Norway, Chile, Brazil, Item location in US : shipped within 1 day
Item location in CN : shipped within 5 days
(Sat. & Sun. & Public holiday excluded.)
· All orders shipped with Tracking Number
Our orders are shipped from China via and from the United States will be shipped out via USPS/UPS.
If your order has not arrived within 20 business days, or if there is an issue with tracking, please do not hesitate to contact us.
Return
- Please do contact us before opening any disputes and leaving response, If you are not completely satisfied with your purchase, we will do everything to resolve any issue. We can't help you if you didn't communicate first.
- Our warranty does not extended to any products that are physically damaged or that are not under normal operating conditions as a result of misuse or improper installation on the buyer/user's part.
responseYour response is very important to us, please leave us a positive response with all 5-star for the Detailed Selling Rating when you received the item.CaptionAbout USWe welcome friends from all over the world to talk about the future cooperation, and we are experienced in drop shipping, welcome to contact us.Country of OriginChinaAdapter SocketRJ45Applicable Network TypeMulti-Gig EthernetBrandUnbrandedChipsetIntel I226Compatible BrandUniversalCompatible PortNGFFCompatible Product LineUniversalExternal InterfacesRJ-45Internal InterfacesM.2 A+EKindInternalMaximum Data Rate2.5GbpsModelIntel I226-VNumber of Ports1 PortPortM.2 A+ETransmission Rate10M/100M/1000M/2.5GTypeWiredUPCDoes not apply
