M2 E Key to M2 M Key Adapter
Professional Range:
The components in the Pro range offer very above-average quality and performance, for demanding enthusiasts and professionals.
In addition to their design and finish qualities, these cards offer the particularity of having drivers pre-installed in their Bios chip, so they are recognized and installed automatically by your PC or MAC without having to resort to a driver CD or a download from the internet (see description below, the pre-installed drivers may vary depending on the model)!.
Features :
To use a Wifi, Bluetooth, GSM card... in E Key format in an M2 PCIe M Key SSD slot
Format 2280 M Key
PCIe x1
USB interface for E Key socket to connect to an internal USB 2.0 port (cord provided). Rq: Wifi cards are generally PCIe, Bluetooth cards USB, and AL cards PCIe and USB. If you use a PCIe Wifi card you will not have to connect this USB interface to the motherboard.
Socket on 2230-D3-E E Key type card
For 1630/2230/3030 M.2 E Key or AE Key WiFi, Bluetooth, AL Band Wireless Module
100% hard'are, transparent for the operating system, compatible with all Windows, Mac, Linux
RoHS

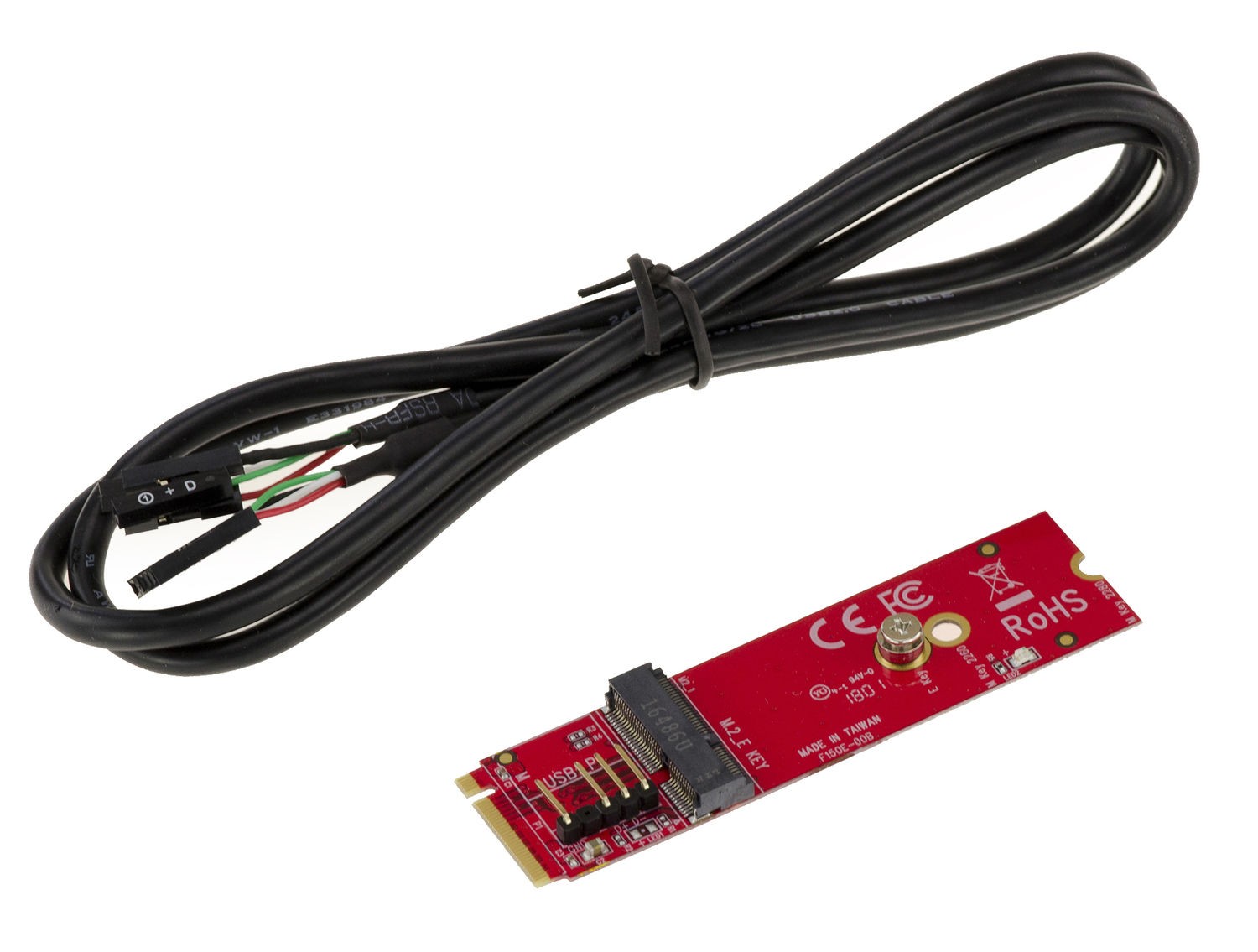

Features: M.2 NGFF type 2280-D5-M M Key notch 75Pin 80mm PCBA module
PCIe x1 signal interface from main board M.2 M-Key slot
USB2.0 signal interface from main board USB port to M.2 E Key socket
M.2 type 2230-D3-E E Key socket on board
Support 1630/2230/3030 M.2 E Key and'a-E Key WiFi, Bluetooth and d'al Band Wireless Module
100% OS-transparent hard'are bridge converter to support Windows, MAC and Linux
Supports operating temperature range: -40 - 80 ºC
Includes USB 5Pin-to-4Pin cable for USB 2.0 signal interface from main board
Require an empty M.2 M-Key slot and USB2.0 port in computer
Fully RoHS compliant
Most M.2 WiFi module use PCIe interface, Bluetooth module uses USB interface, and d'al Band Wireless Module use both PCIe + USB interface >The components in the Pro range offer very above-average quality and performance, for demanding enthusiasts and professionals. In addition to their design and finish qualities, these cards offer the particularity of having drivers pre-installed in their Bios chip, so they are recognized and installed automatically by your PC or MAC without having to resort to a driver CD or a download from the internet (see description below, the pre-installed drivers may vary depending on the model)!. USB interface for E Key socket to connect to an internal USB 2.0 port (cord provided). Rq: Wifi cards are generally PCIe, Bluetooth cards USB, and AL cards PCIe and USB. If you use a PCIe Wifi card you will not have to connect this USB interface to the motherboard. Most M.2 WiFi module use PCIe interface, Bl Recommended products Provided by M2 NGFF M Key To MiniPCIe Or M.2 NGFF B Key To MSATA Adapter View product M2 Adapter (M.2 NGFF B Key) To MicroSATA View product Adapter M2 (NGFF) B Key to B+M Key View product M.2 E A Key To PCIe 1X (M2 NGFF) View product M.2 Converter - M2 NGFF E Or A Key To MicroSD - Micro SD SDHC SDXC 2TB View product M2 Controller Card (M.2 NGFF) - Gigabit Ethernet - M2 A E Key - PRO RANGE View product M.2 Controller Card - M2 NGFF E Or A Key To MicroSD - Micro SD SDHC SDXC 2TB View product Adapter M.2 (M2 SATA NGFF B / B+M Key) to SATA 3.0 - Half Slim View product
