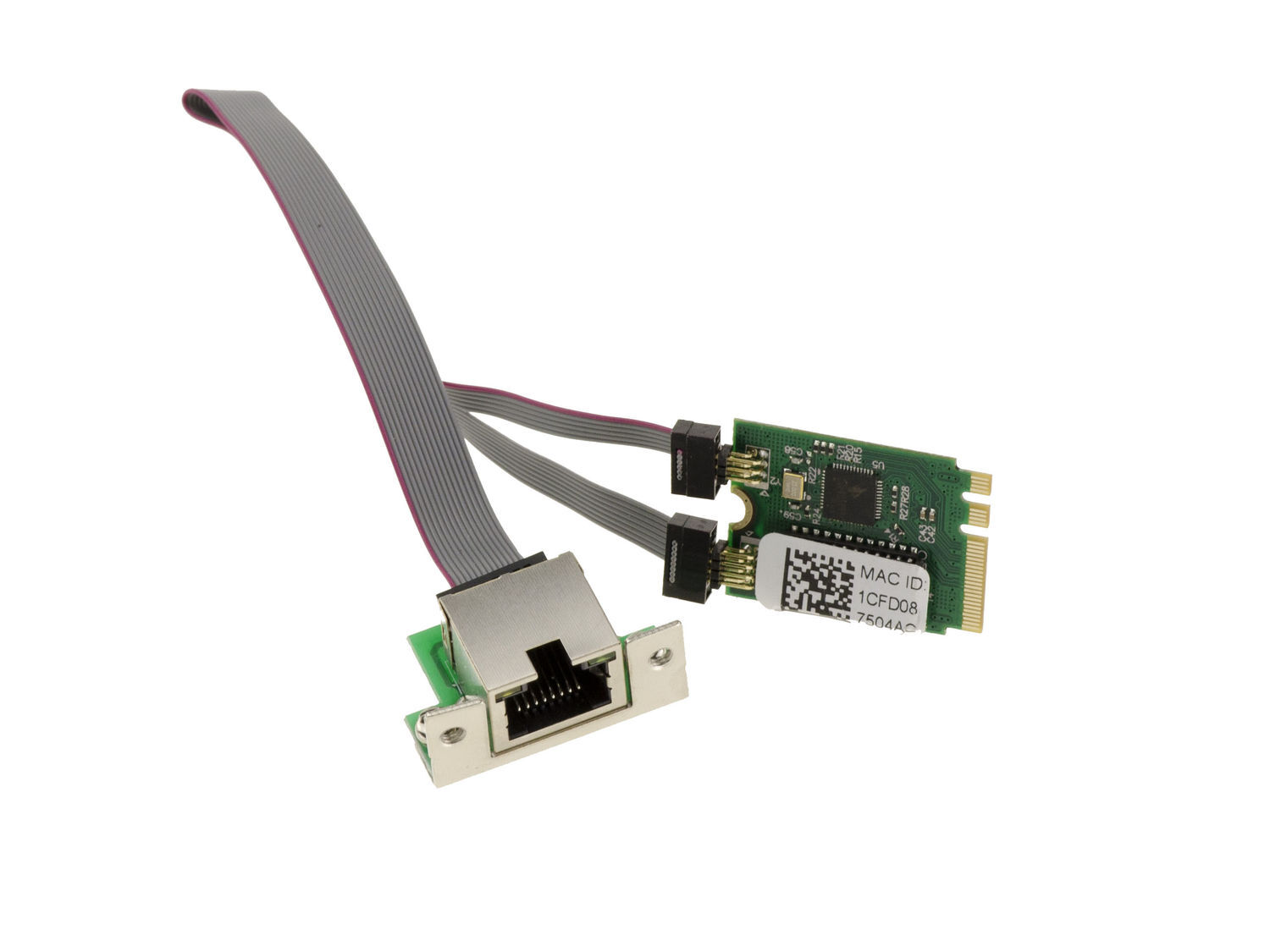

Mounts on the M2 EA Key port of laptops (PCIe type)
Compatibility:
Windows ME, 98SE, 2000, XP, Vista, 7, 8, 10 and 11 32-/64-bit. Windows Server 2003, 2008, 2012 and 2016 32 -/64-bit. Linux, MAC OS and DOS.
Features :
REALTEK RTL8125 chipset.
2.5G and 1G lite compatible. Auto-negotiation 10/100/1000M/2.5Gbps.
Crossover detection, with automatic correction. IEEE802.3, 802.3u and 802.3ab compatible.
Compatible with IEEE 1588v1,IEEE 1588v2,IEEE 802.1AS synchronizations. IEEE 802.1Qav shaper algorithm compatible.
Compliant IEEE 802.1ad Dual VLAN, IEEE 802.3az (ENERGY Efficient Ethernet), IEEE 802.3bz (2.5GBase-T), IEEE 802.1P layer 2 Priority Encoding.
Compatible with 802.1Q VLAN tagging. Full Duplex flow control (IEEE.802.3x). Supports jumbo frame packets up to 16K bytes.
Compatible Virtual Machine Queue (VMQ), quad core Receive-Side Scaling (RSS), Protocol Offload (ARP&NS).
Compatible with Microsoft WPI (Wake Packet Indication), Wake-On-LAN and “RealWoW” Technology remote wake-ups.
Supports the ECMA-393 ProxZzzy standard.
Supplied with installation CD.
