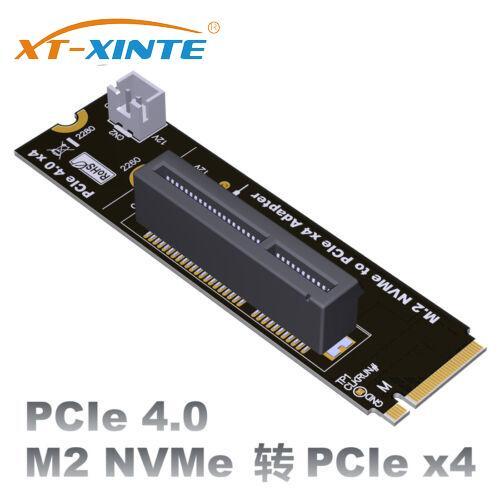

M2 key-M To PCI-e 4.0 X4 X1 Slot Riser Card for M.2 NVMe M Key 2260 2280 SSD Adapter Board Converter Card with SATA Power Cord

Brand: XT-XINTE

Product model: R42A 4.0

Product name: M2 NVMe key-M to PCIe x4 adapter board

Product size: 22x80mm

Bandwidth speed: PCIe 4.0 x4

Applicable matching cards: high-speed network card, capture card, for NVMe SSD hard disk card, USB adapter card, PCI-E x4 and other interfaces.

Purchase restriction: only designated by professional engineers for purchase, general purpose is not suitable and cannot be used, ordinary buyers do not purchase.

Procurement Tips: Be sure to buy 1~2 samples first, and then buy them in bulk after testing and verifying that they are correct.

Friendly reminder: Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. The external graphics card of the notebook is not supported!

Accessories: Equipped with a SATA power adapter cable, this product must be connected to the power cord to have 12V power supply.

Product advantages:

Material advantages: use PCIe 4.0 high-quality connectors, PCB selects high-quality materials with high frequency and low resistance, PCB workmanship is precise, PCB uses high TG plates, and the copper thickness is thickened to 1oz; the connector is gold-plated and has good electrical conductivity, which can reduce oxidation Problems such as slow disconnection and slow stuck caused by the increase of rust resistance.

Design advantages: Differential signal enhanced layout design, no CAF micro short circuit phenomenon, high-speed signal data transmission, no parasitic capacitance and parasitic inductance signal attenuation interference, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference, It is easy to install the product without the hardware card. The adapter board does not require a driver

Product Image:
