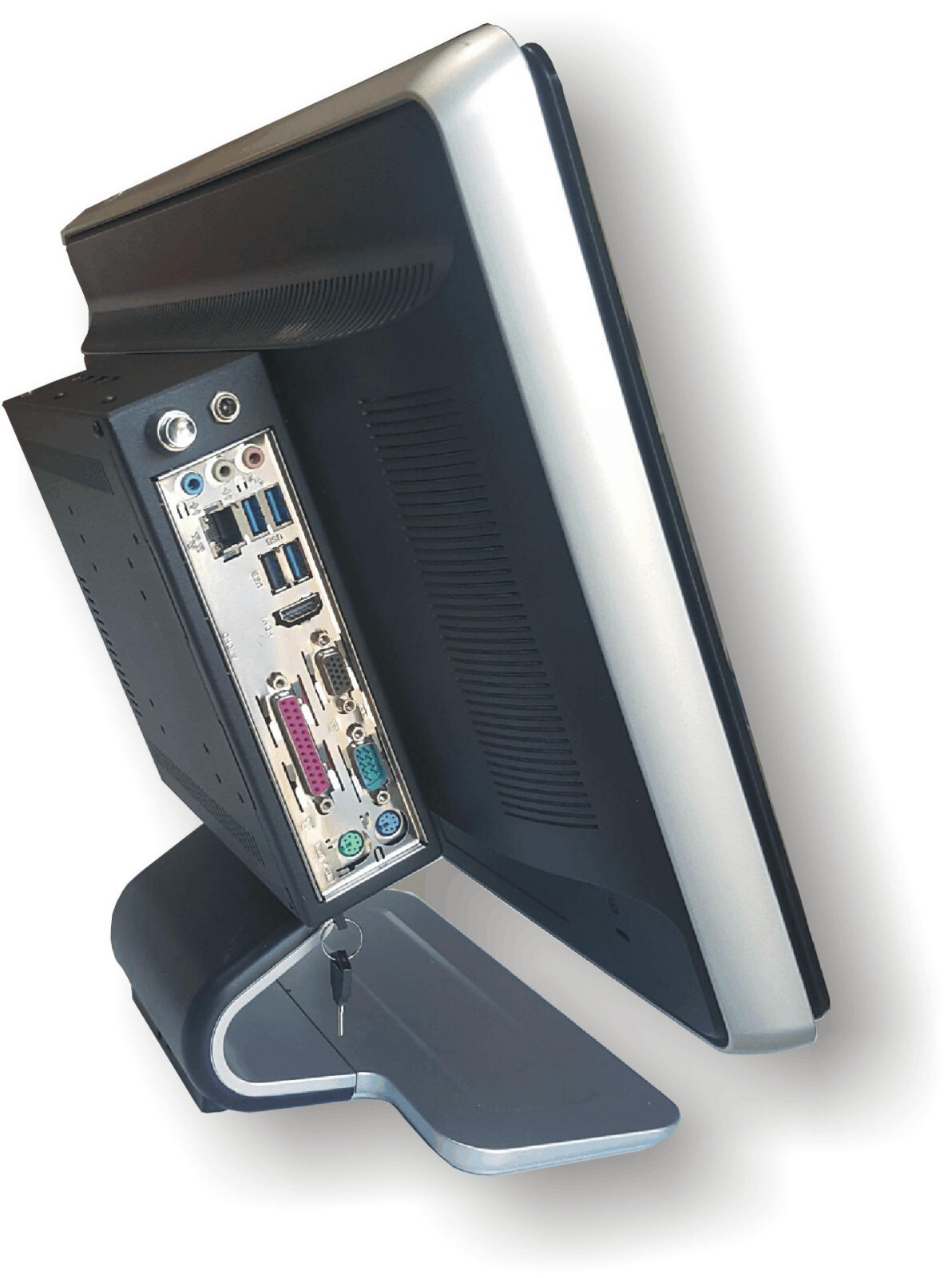

Fully functional Mini Computer with mini-ITX motherboard, 15-17" TFT LCD Monitor, USB or PS/2 Mouse and slim Keyboard. CPU built with new and reconditioned parts. Monitor reconditioned like new. CPU box mounted at back of Monitor in piggyback for small footprint as an All-in-One machine. Machine secured with Keylock to prevent unauthorized use in organizational environments. All modular equipment for expeditious maintenance by component substitution. With plenty of RAM memory, a very good mid-level machine for common applications such as internet browsing, office apps, apps with databases, coding, etc. Particularly suitable for desktops where space is at a premium.
You will receive:
(1) Computer CPU box – w. permanently functional Windows 10 Pro, but no activation. Activation via license key optional.
(2)Pristine Monitor – 15" to 17" Flat Panel LCD Monitor – Reconditioned pre-owned.
(3)Keyboard and optical Mouse – Reconditioned Pre-Owned
Quality control: All tested perfectly working.
OPTIONAL EXPANSION- Expandable with addition set of (4) USB 2.0 ports, for a total of (8) USB 2.0 Ports. ($20 additional)
Plenty to directly connect all the USB 2.0 peripherals you might want to plug in.
- Windows 10 Pro license key ($12 additional)
FEATURES DETAILS
CPU
- Intel® Quad-Core Processor J3455 (1.5 GHz up to 2.3 GHz)
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots – Includes total of 8GB RAM in two cards
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- Includes 15' to 17” Pre-owned, whichever is in stock
- Integrated Intel® HD Graphics 500: 12 EU's inside (Up to750MHz)
- DirectX 12, Pixel Shader 5.0
- Dual graphics output: VGA D-Sub and HDMI ports. Supports independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K(3840x2160) @ 30Hz or 2560x1600 @ 60Hz
- Supports VGA D-Sub with max. resolution up to 1920x1200 @60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG
- 1 x COM serial port on chassis
- (4) USB 2.0 ports on chassis
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin) and (1) Placeholder on chassis for Chassis fan
- 1 x 24 pin ATX Power Connector with built-in micro ATX power supply
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- Includes a 320GB HDD Sata Hard Drive
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and HotPlug
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
To configure 7.1 CH HD Audio, must use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode) on motherboard, only for internal use, no outside insertion.
BIOS - UEFI
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumper-free
- SMBIOS 3.0 support
Power Supply
- (1) Power Supply cube rated for 12V and 2.5A – For CPU Box
Hardware Monitoring
- CPU, Chassis temperature sensing
- CPU, Chassis Fan Tachometer
- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed byCPU temperature)
- CPU, Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
- Placeholder for one miniature Chassis cooling fan (with3-conductor connector)
WARRANTY
90-day manufacturer warranty. Will either repair or replace defective parts or components. Warranty covers and applies only to returned received equipments with prior notification.
RETURN POLICY
Returns under standard return policy terms. Up to 30 days after receiving the merchandise to enter a return request. Item must be received back within 10 days of return authorization. To avoid a blemish fee, all items must be returned in same original receiving conditions, with all packaging and accessories.
