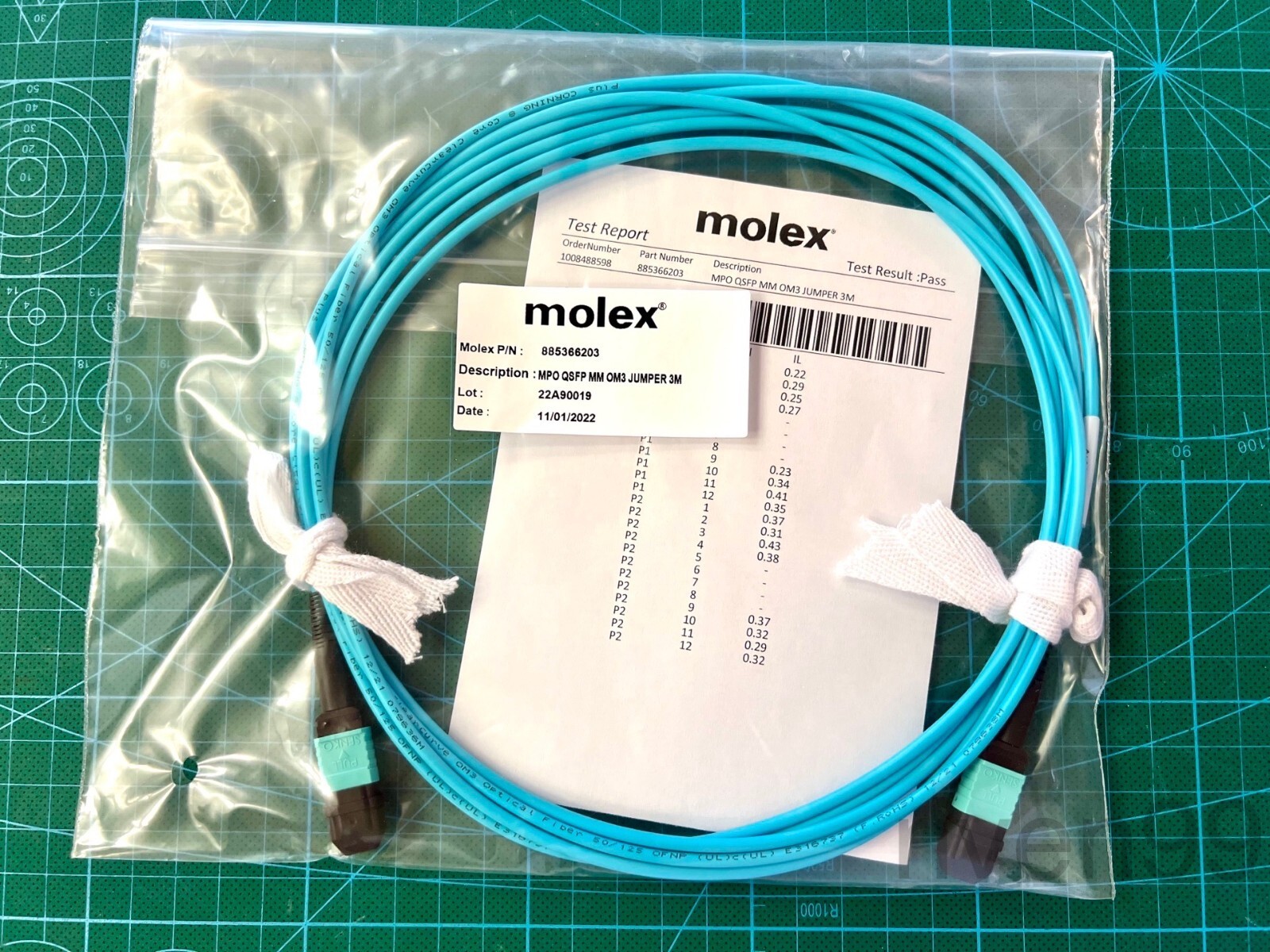

MOLEX QSFP MPO/MTP Female 8F Fiber Optic Trunk Patch Cable, Multimode OM3 Aqua
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
MOLEX QSFP MPO/MTP Female 8F Fiber Optic Trunk Patch Cable, Multimode OM3 Aqua
Price: US $25.99
Up for sale are New bulk pack GenuineMolexQSFP MPO-to-MPO Female Fiber Optic Trunk Patch Cables
  • Contains 8 Corning ClearCurve OM3 Multimode 50/125μm Fibers for 850/1300nm
  • 3.0mm aqua jacket, OFNP (Plenum rated)
  • Polarity: Type B (tx's connected to rx's)
  • Select Length above:
    • 3m (9.8ft),p/n:88536-6203
    • 5m (16.4ft),p/n:88536-6205
    • 10m (32.8ft),p/n:88536-6210
    • 15m (49.2ft),p/n:88536-6215
  • Each cable is labeled with part number and serial number; includes insertion loss test data sheet with matching serial number
  • MPO-8 connectors contain 8 fibers (4 tx, 4 rx) in a standard pinless MPO-12 layout, with the center 4 positions unused
  • Connector end A: MPO/APC Female
  • Connector end B:MPO/APC Female
  • See Molex site for complete specs and dimensions
My items are always packed properly and securely! :)ESD-safe packaging and precautions are used with items thatrequireit.
Thanks for looking!
