Product Description
- Switch to Switch uses Type B crossover sequence jumpers.
- Type B crossover jumper is required for direct connection between devices.
- Type A straight-through jumpers cannot be used for direct connection between devices.
- Support custom cable lengths and Type A/Type B/Type C wire sequences and MPO Male connectors.
- Lots of stock, should you need more quantity please contact us to handle. Thanks!
Parameter:

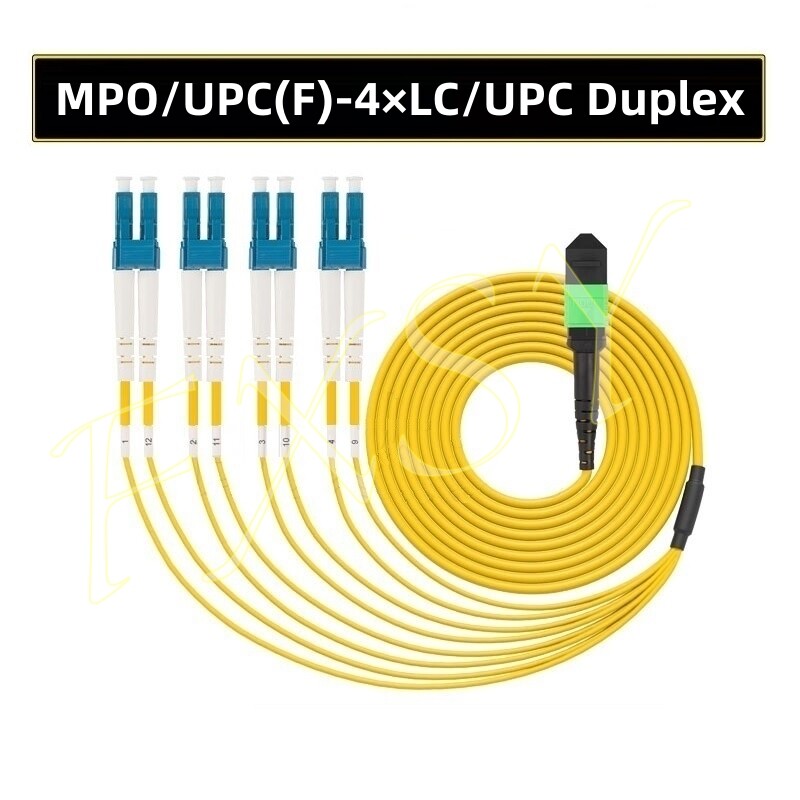

- Connector A:MPO/UPC Female orMPO/APC Female(Without Pin)(By choice)
- Connector B: LC/UPC Duplex Male orLC/APCDuplex Male(By choice)
- Polarity:Type B(Cross over type：1-1,2-8 | 3-2,4-7 | 5-3,6-6 |7-4,8-5)
- Polarity:Type A(Straight through type：1-1,2-2,3-3,4-4,5-5,6-6,7-7,8-8)
- Number of cable cores: 8
- Length: 1-20M（The default LC branch length is 0.5m, if you need another branch length, please leave us a message)
- Diameter: 3.0mm to 2.0mm
- Fiber Type: Single-mode
- Insertion Loss: ≤0.35dB
- Return loss: UPC≥50dB,APC≥55dB
- Ferrule Material：Ceramic (zirconia)
- Sheath: LSZHjacket
- Operating temperature：-40~+85°C
Package List:
- 1Pcs MPO-LCFiber Optic Patch Cord
More Types MPO jumpers:
MPO-OM3-Aqua：
MPO/Female-MPO/Female 8|12F TypeB/TypeA
MPO/Male-MPO/Male 8|12F TypeB/TypeA
MPO/Male-MPO/Female 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex TypeB/TypeA
MPO/Female-6×LC Duplex TypeB/TypeA
MPO/Male-4×LC Duplex TypeB/TypeA
MPO/Male-6×LC Duplex TypeB/TypeA
MPO-OM4-Aqua：
MPO/Female-MPO/Female 8|12F TypeB/TypeA
MPO/Male-MPO/Male 8|12F TypeB/TypeA
MPO/Male-MPO/Female 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex TypeB/TypeA
MPO/Female-6×LC Duplex TypeB/TypeA
MPO/Male-4×LC Duplex TypeB/TypeA
MPO/Male-6×LC Duplex TypeB/TypeA
MPO-OM4-Red：
MPO/Female-MPO/Female 8|12F TypeB/TypeA
MPO/Male-MPO/Male 8|12F TypeB/TypeA
MPO/Male-MPO/Female 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex TypeB/TypeA
MPO/Female-6×LC Duplex TypeB/TypeA
MPO/Male-4×LC Duplex TypeB/TypeA
MPO/Male-6×LC Duplex TypeB/TypeA
MPO-OS2-Yellow：
MPO/Female-MPO/Female UPC/APC 8|12F TypeB/TypeA
MPO/Male-MPO/Male UPC/APC 8|12F TypeB/TypeA
MPO/Male-MPO/Female UPC/APC 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex UPC/APC TypeB/TypeA
MPO/Female-6×LC Duplex UPC/APC TypeB/TypeA
MPO/Male-4×LC Duplex UPC/APC TypeB/TypeA
MPO/Male-6×LC Duplex UPC/APC TypeB/TypeA
