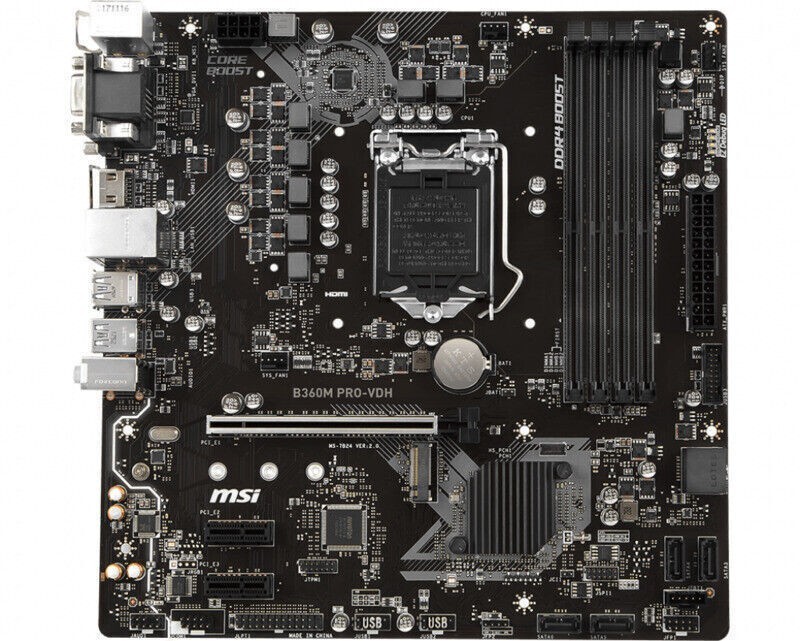

MSI B360M PRO-VDH Motherboard Intel B360 LGA 1151 DDR4 M.2 m-ATX VGA Core DVI-D For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
8th Generation Intel® Core™ processors supporting LGA1151, and Intel® Pentium® Gold and Celeron® processors
Chipset
Intel® B360 Chipset
RAM
4 DDR4 slots supporting up to 64GB combined
Supports DDR4 2666/ 2400/ 2133 MHz memory
Support dual channel mode
Supports non-ECC, unbuffered memory
Supports Intel® Extreme Memory Profile (XMP)
Expansion slot
1 PCIe 3.0 x16 slot
2 PCIe 3.0 x1 slots
Onboard graphics card
1 VGA port, supports the highest resolution 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 DVI-D interface, supports the highest resolution 1920x1200@60Hz
1x HDMI™ 1.4 interface, supports the highest resolution 4096x2160@30Hz
Storage
Intel® B360 Chipset
6 SATA 6Gb/s ports s1
1 M.2 slot (M Key)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Support 2242/ 2260/2280/ 22110 specification storage devices
Intel® Optane™ Memory Ready2
When the M.2_1 slot is equipped with an M.2 SATA SSD module, the SATA1 interface will not be available. Before using the Intel® Optane™ memory modules, please ensure that the drivers and BIOS are updated to the latest versions on the MSI website.
USB
Intel® B360 Chipset
6 USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C on back panel, 2 via onboard USB)
6 USB 2.0 (High-speed USB) ports (2 Type-A ports on back panel, 4 via onboard USB ports)
Sound effect
Realtek® ALC887 decoder chip
7.1-channel high-quality sound
The internet
1 x RTL8111H Gigabit NIC
Built-in interface
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 SATA 6Gb/s ports
1 USB 3.1 Gen1 port (can support 2 additional USB 3.1 Gen1 ports)
2 USB 2.0 ports (additional 4 USB 2.0 ports can be supported)
1 x 4-pin CPU fan connector
2 x 4-pin system fan headers
1 panel audio interface
1 parallel interface
1 serial interface
2 system panel connectors
1 TPM module interface
1 chassis opening port
1 Thunderbolt expansion card connector
1 clear CMOS function jumper
Backplane interface
PS/2 mouse port
VGA port
HDMI interface
LAN interface
USB 3.1 Gen1
USB 3.1 Gen1 Type A
PS/2 keyboard interface
DVI-D interface
USB 2.0 interface
USB 3.1 Gen1 Type C
HD audio interface
Form Factor
m-ATX ; 9.6 x 9.6 inches (24.4 x 24.4 cm)
Mounting hole
8 mounting holes
