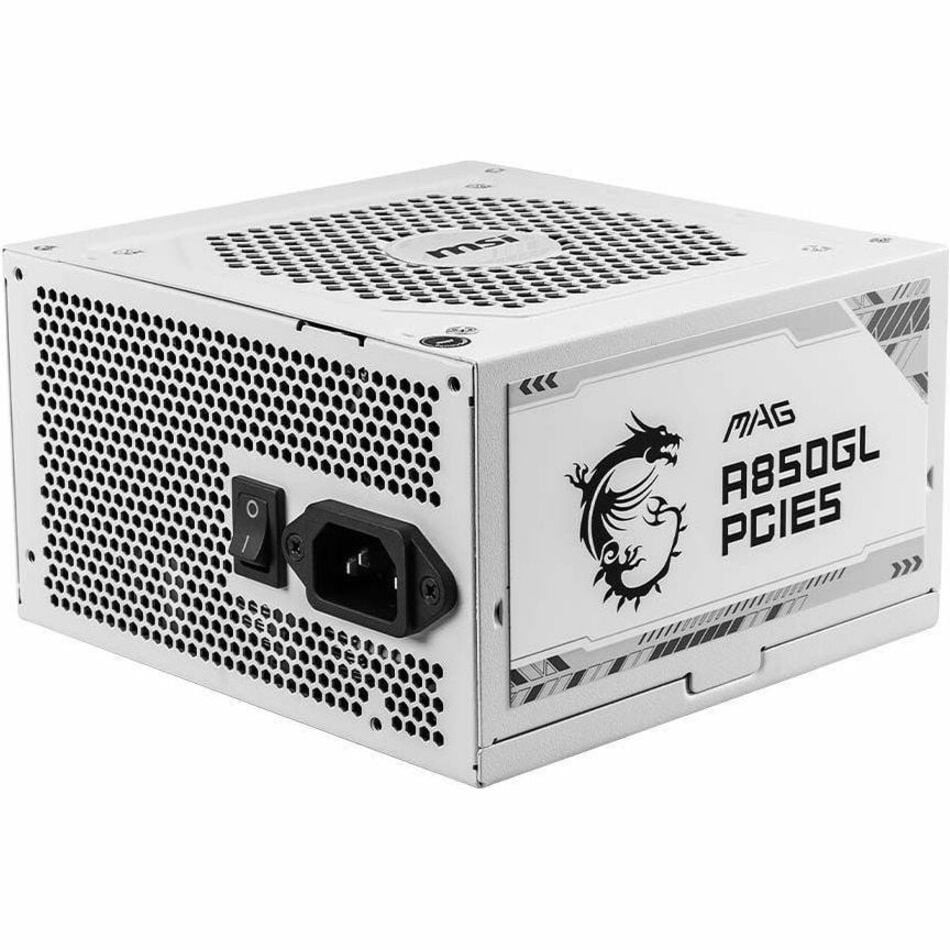

MSI MAG A850GL PCIE5 White Power Supply (maga850glpcie5wt) MSI MAG A850GL PCIE5 White Power Supply (maga850glpcie5wt)Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Product Description
This item is brand-new, factory sealed.
MAG A850GL PCIE5 WHITE
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 WHITE power supply can hold up to 2x total power excursion and 3x GPU power excursion.
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for Nvidia GeForce RTXTM 40 Series graphics cards.
It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your systems performance and your power consumption. The 80 PLUS Gold and Cybenetics Platinum certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the systems overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supplys fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Yes (full modular)
Fan Size
120 mm
Fan Bearing
Fluid Dynamic Bearing
PFC Type
Active PFC
Input Voltage Range
100 to 240 VAC
Power Watt
850W
Power Excursion
1700W (up to 200% of the PSUs rated power for 100s)
Input Frequency Range
47-63Hz
Protection
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.0 (16 pin)
1 (600W)
PCI-E (6+2 pin)
4
SATA (15 pin)
8
MOLEX (4 pin)
4
FDD (4 pin)
1Item Dimension (L inchxW inchxH inch)
11 x 6 x 10
Weight
5 lbs
Warranty Information
3 YearsItem Dimension (L inchxW inchxH inch)
12 x 9 x 5
Weight
6.39 lbs
Warranty Information
10 Years SpecificationPower DescriptionInput Frequency63 HzOutput Power850 WInput Voltage
Physical CharacteristicsForm FactorInternalWeight (Approximate)6.39 Warranty10 YearGeneral InformationBrand NameMSIMarketing Information The MSI MAG A850GL PCIE5 850W Power Supply fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 WHITE power supply can handle up to 2x total power excursion and 3x GPU power excursion. The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency. Product TypePower SupplyProduct NameMAG A850GL PCIE5 White Power SupplyManufacturerMSIManufacturer Part NumberMAGA850GLPCIE5WTProduct ModelMAG A850GL PCIE5TitleProduct TitleMSI MAG A850GL PCIE5 White Power Supply (MAGA850GLPCIE5WT)Technical InformationSpecification ComplianceATX 3.0NVIDIA SLI SupportedYesEfficiency90%Number of Fans1Fan Bearing TypeFluid Dynamic BearingProtection Type
- Over Current
- Over Power
- Over Voltage
- Over Temperature
- Short Circuit
- Under Voltage
ModularYesPower Factor Correction (PFC)Active Shipping
