In Good Condition, Full Working Order
Tested
1 Year Warranty
Back to Front Airflow

Included

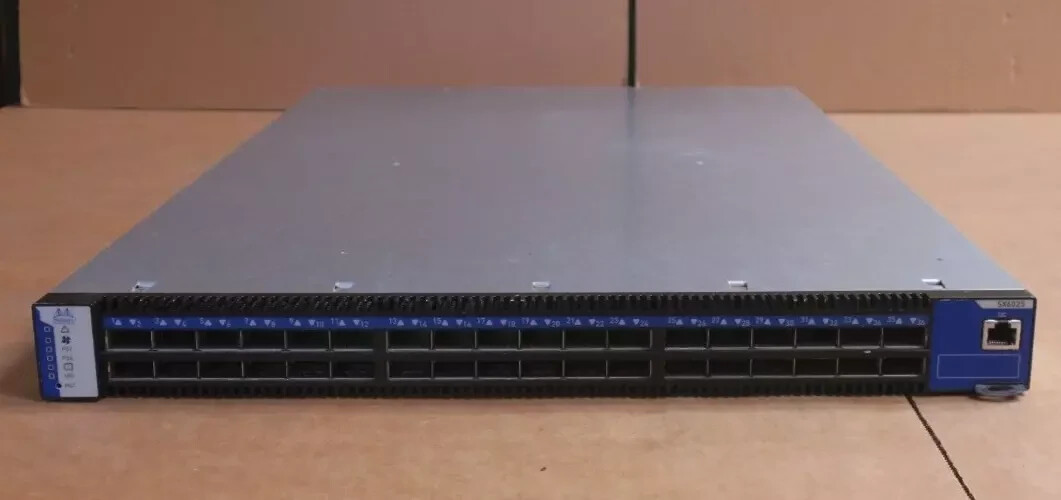

• 1 x Mellanox Infiniband IB SX6025 FDR 36-Port SwitchMSX6025F-1SFS
• 2 x 300W Power Supply MSX60-PF
• 1 x Fan Module SX6025
  • 19’’ rack mountable chassis, 1U withredundant power supplies and Fan units
  • 36 QSFP non blocking ports with aggregatethroughput up to 4.032 Tb/s (FDR)
  • Port-to-port latency 170ns
  SWITCH SPECIFICATIONS
  • Compliant with IBTA 1.21 and 1.3
  • 9 virtual lanes: 8 data + 1 management
  • 256 to 4Kbyte MTU
  • Adaptive Routing**
  • Congestion control**
  • Port Mirroring**
  • 4X48K entry linear forwarding data base
  MANAGEMENT PORTS
  • I2C (RJ45)
  • System reset button
  CONNECTORS AND CABLING
  • QSFP connectors
  • Passive copper or active fiber cables
  • Fiber media adapters
  INDICATORS
  • Per port status LED Link, Activity
  • System status LEDs: System, fans, powersupplies
  • Port Error LED
  • Unit ID LED**
  PHYSICAL CHARACTERISTICS
  • Dimensions: (1.72’’H X 16.84’’W X 24.7’’D)
  • Weight: 20.5 Lbs (9.3 Kgs)
  POWER SUPPLY
  • Dual redundant slots
  • Hot plug operation
  • Input range: 100 - 240VAC
  • Frequency: 50-60Hz, single phase AC
  POWER CONSUMPTION
  • FDR - Typical power consumption:
  • Passive cable - 113W
  • Active cable - or rear-to-front cooling option
  • Hot-swappable fan unit
