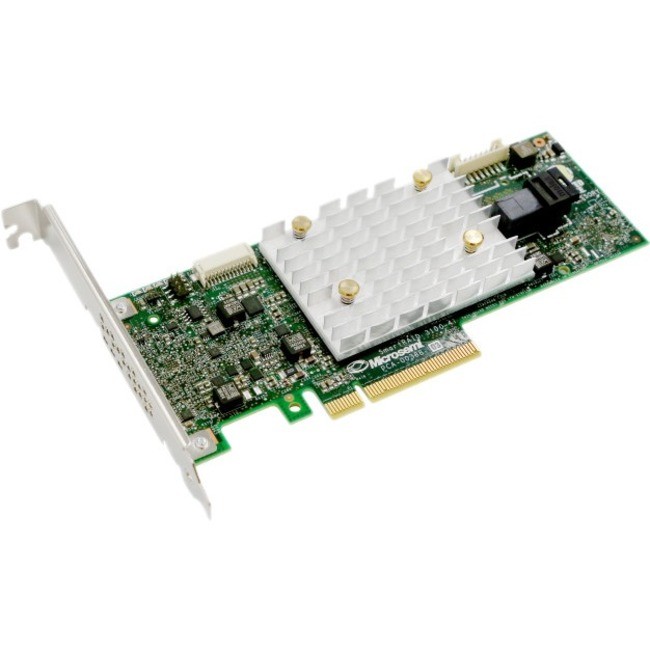

Microchip Adaptec® SmartRAID 3101E-4i Single (2304400R) Microchip Adaptec® SmartRAID 3101E-4i Single (2304400R)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Environmentally Friendly: Yes
Platform Supported:
Country of Origin: Singapore
Product Description
This item is brand-new, factory sealed.
Features:
RAID levels: 0, 1, 10, 1 ADM and 10 ADM
Supports simultaneous use of RAID and raw devices (mixed mode)
Up to 8 native SAS/SATA ports in a LP/MD2 design
12 Gbps and 6 Gbps compatibility with HDD or SSD SAS/ SATA devices
12 Gbps throughput per SAS port using mini-SAS HD connectors
840K random read 4 KB IOPS2
The SmartRAID 3101E-4i 12 Gbps PCIe Gen 3 SAS/SATA RAID adapter delivers an entry-level solution with the robustness and performance of hardware RAID and the industry leading power of the SmartRAID 3100 series. This solution provides significant performance acceleration over other entry-level adapter card solutions through built-in 1 GB DRAM cache , thus delivering a performant hardware RAID solution for cost-sensitive platforms that dont require cache protection or the full capabilities of our full featured SmartRAID adapters. The SmartRAID 3101E-4i supports RAID levels: RAID 0, 1, 1 ADM, 10, and 10 ADM.
With broad operating system support and ecosystem compatibility, SmartRAID adapters are easy to implement and scale, and the unified maxView management tools and drivers across the Adaptec HBA, RAID, and expander solutions enable easy manageability across the entire product line.
SmartRAID 3101E-4i RAID adapters are ideal solutions for of industrial PC workstations or entry-level servers that require connectivity to 6G SATA or SAS-3 drives for redundant boot support and I/O intensive applications such as databases or video editing. Product Type
RAID Adapter Port Count
4 internal Interface
8-Lane PCIe Gen 3 RAID Level
Hardware RAID 0, 1, 10, 1 ADM and 10 ADM Form Factor
Low-profile, MD2 MTBF at 40oC
1.37M hours Controller
12 Gbps SmartROC 3100 Connectors
1 (x4) SFF-8643 Cache
1 GB DDR4/2100 MHzItem Dimension (L inchxW inchxH inch)
15 x 10 x 2Weight
3.00 lbWarranty Information
3 Years SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)1.10 lbWarrantyLimited Warranty3 YearInterfaces/PortsNumber of SAS Ports (Internal)4Total Number of SAS Ports4SAS Connector Details1 x SFF-8643MemoryCache Memory1 GBGeneral InformationBrand NameMicrochipMarketing InformationMicrochip's SmartRAID 3101E-4i 12 Gbps PCIe Gen 3 SAS/SATA RAID adapter delivers an entry-level solution with the robustness and performance of hardware RAID and the industry leading power of the SmartRAID 3100 series. This solution provides significant performance acceleration over other entry-level adapter card solutions through built-in 1 GB DRAM cache , thus delivering a performant hardware RAID solution for cost-sensitive platforms that don't require cache protection or the full capabilities of our full featured SmartRAID adapters. The SmartRAID 3101E-4i supports RAID levels: RAID 0, 1, 1 ADM, 10, and 10 ADM. With broad operating system support and ecosystem compatibility, SmartRAID adapters are easy to implement and scale, and the unified maxView management tools and drivers across the Adaptec HBA, RAID, and expander solutions enable easy manageability across the entire product line. SmartRAID 3101E-4i RAID adapters are ideal solutions for of industrial PC workstations or entry-level servers that require connectivity to 6G SATA or SAS-3 drives for redundant boot support and I/O intensive applications such as databases or video editing.Product TypeSAS ControllerProduct NameSmartRAID 3101E-4i SingleManufacturerMicrochip Technology Inc.Manufacturer Part Number2304400-RProduct Model3101E-4iProduct Series3100Product LineSmartRAIDTitleProduct TitleMicrochip Adaptec® SmartRAID 3101E-4i Single (2304400R)Technical InformationRAID SupportedYesHost InterfacePCI Express 3.0 x8Controller Type12Gb/s SASRAID Levels
