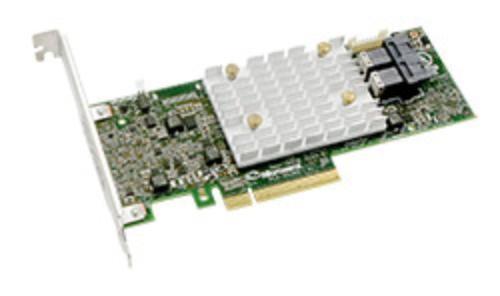

Microchip Adaptec® SmartRAID 3152-8i Single Microchip Adaptec® SmartRAID 3152-8i Single
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: SmartRAID 3152-8i Single Low Profile Vented Bracket
Environmentally Friendly: Yes
Platform Supported:
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
The 12 Gbps SmartRAID 3100 adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS as well as acceleration and latency optimization through caching for the most performance-hungry transactional and database applications.
SmartRAID 3100 adapters are full featured RAID adapters with integrated cache backup, up to 1.7 million IOPS, available in up to 24 native ports in LP/MD2, and have SSD caching on most adapter SKUs.
Features
>1.7M 4K random read IOPs, a >60% boost over prior generations
maxCache 4.0 caching software
RAID levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM
Supports simultaneous running of RAID and raw devices (mixed mode)
Fourth-generation Zero-Maintenance Cache Protection (ZMCP), integrated with all SmartRAID 315x products
Up to 24 native SAS/SATA ports in a LP/MD2 design
12 Gbps and 6 Gbps compatibility with HDD or SSD SAS/SATA devices
12 Gbps throughput per SAS port using mini-SAS HD connectors
Microsemi's 12 Gbps SmartROC x8 PCIe Gen3 interface with 12 Gbps SAS ports to enable a new generation of performance
Ports
8 internal Connectors
2 x SFF-8643 maxCache 4.0
Yes Cache Protection
Yes, integratedAll Core Boost Speed
SmartRAID 3152-8i adapter with integrated flash backup
Additional low profile vented bracketRAID Levels
0, 1, 5, 6, 50, 60, 1 ADM, 10 ADMForm Factor
MD2-Low ProfileBus Interface
8-Lane PCIe Gen3Processor
12 Gbps ROCKey software features
- maxCache 4.0 caching software (all SmartRAID 315x products with cache protection)
- Mixed mode allows to use RAID and HBA devices simultaneously
- Adapter dynamic power management to save up to 30% power
- Supports up to 256 SAS or SATA devices using SAS expanders
- Support for native 4K sector SAS and SATA devices in addition to 512-byte sector devices
- Triple mirroring, move array, split mirroring
- RAID advanced data management
- Quick initialization
- Online capacity expansion
- Copyback hot spare
- Dynamic caching algorithm
- Native command queuing (NCQ)
- Background initialization
- Hot-plug drive support
- RAID level migration
- Hot sparesglobal, dedicated, and pooled
- Automatic/manual rebuild of hot spares
- SES and SAF-TE enclosure management
- Configurable stripe size
- S.M.A.R.T. support
- BMC support
- Dynamic sector repair
- Staggered drive spin-up
- Bootable array support
- Support for tape devices, autoloaders
- MSI-X support for all device drivers for all supported operating systems
- Secure boot support for the uEFI host BIOS
- USB image available on /en-us/support/start to boot maxView GUI from any USB device for enhanced GUI-based setup and offline maintenanceManagement utilities
- maxView Storage Manager:
- Web-based GUI management utility
- OS support: Windows, Linux, Solaris, VMware
- Remote configuration, monitoring, and notification
- Remote firmware updates
- SMI-S
- SMTP ARCCONF
- Command-line interface
- SMI-S support for VMware
BIOS Configuration Utility (CTRL+A):
- Legacy configuration utility
- Flashable BIOS support uEFI BIOS Configuration Utility
- HII-based configuration utility
- Flashable BIOS support
Event Monitor:
- Lightweight event monitoring and logging tool
- Distributes adapter events and notifies userCache
2GB DDR4/2100 MHOperating Systems
Microsoft Windows, Red Hat Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, FreeBSD, VMware ESXi. The latest drivers are available at /en-us/support/start. Supports open-source Linux drivers and inbox driversOperating Temperature
0oC to 55oC with 200 LFM airflow, without flash (SmartRAID 3154-24i requires 250 LFM), 0oC to 50oC with 200 LFM airflow, with flash (SmartRAID 3154-24i requires 250 LFM)Regulatory Certification
CE, FCC, UL, C-tick, VCCI, KCC, CNSEnvironmental Compliance
RoHSMTBF
1.37 million hours, measured at 40oCItem Dimension ( L inchxW inchxH inch)
15 x 10 x 2Weight
2.00 lbWarranty Information
3 Years SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)1.10 Warranty3 YearInterfaces/PortsNumber of SAS Ports (Internal)8Total Number of SAS Ports8SAS Connector Details2 x SFF-8643MemoryCache Memory2 GBGeneral InformationBrand NameMicrochipMarketing Information The 12 Gbps SmartRAID 3100 adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS as well as acceleration and latency optimization through caching for the most performance-hungry transactional and database applications. SmartRAID 3100 adapters are full featured RAID adapters with integrated cache backup, up to 1.7 million IOPS, available in up to 24 native ports in LP/MD2, and have SSD caching on most adapter SKUs. Advancing the performance capabilities of SSD caching to a broader set of application workloads, SmartRAID 315x adapters support read and write-back caching. By caching writes to a redundant SSD cache pool, maxCache 4.0 leverages the performance and latency capabilities of SSD technology for both read and write workloads. The read caching function is also improved with maxCache 4.0, with additional optimizations to the learned-path algorithm and SSD caching software. Integrated Cache Protection The SmartRAID family continues Microsemi's battery-free portfolio. The SmartRAID 3100 Series integrates flash-based cache protection to enable instant cache protection. The tethered Microsemi Adaptec ASCM- 35F capacitor module supports a five-year lifetime and is continuously monitored by the Smart firmware to make sure that the data can be safely backed up to the flash memory on the SmartRAID adapter in case of a power loss. Advanced Data Protection and Ease of Use Microsemi's industry-leading Smart Storage stack delivers maximum reliability and best-in-class performance that all RAID levels come to expect, plus unique features like Mixed Mode support (RAID and HBA devices can be used simultaneously), adapter power management (reduces power consumption up to 30 percent), and advanced data management features that allow data migration from existing RAID arrays to new ones when upgrading old hard disks or worn-out SSDs. Microsemi's Adaptec maxView provides an HTML5 web interface that can be used in standard desktops and mobile browsers for all storage configuration and management needs. It supports local and remote management, and comes with plugins for major storage management software suites for enterprises and data centers. Features >1.7M 4K random read IOPs, a >60% boost over prior generations maxCache 4.0 caching software RAID levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM Supports simultaneous running of RAID and raw devices (mixed mode) Fourth-generation Zero-Maintenance Cache Protection (ZMCP), integrated with all SmartRAID 315x products Up to 24 native SAS/SATA ports in a LP/MD2 design 12 Gbps and 6 Gbps compatibility with HDD or SSD SAS/SATA devices 12 Gbps throughput per SAS port using mini-SAS HD connectors Microsemi's 12 Gbps SmartROC x8 PCIe Gen3 interface with 12 Gbps SAS ports to enable a new generation of performance Product TypeSAS ControllerProduct NameSmartRAID 3152-8i SingleManufacturerMicrochip Technology Inc.Manufacturer Part Number2290200-RProduct ModelSmartRAID 3152-8iProduct Series3100Product LineSmartRAIDTitleProduct TitleMicrochip Adaptec® SmartRAID 3152-8i Single (2290200R)Technical InformationRAID SupportedYesHost InterfacePCI Express 3.0 x8Controller Type12Gb/s SASRAID Levels
Data Backup TypeFlash Backed Cache Shipping
