Item SpecificsItemDetailsConditionBrand New / OriginalBrandMikroTikProduct LineCloud Core Router (CCR)Model / MPNCCR1009-7G-1C-1S+TypeEnterprise / Carrier RouterCPUTILE-Gx9 / TLR4-00980CPU Cores9 CoresCPU Speed1.2 GHzRAM2 GBStorage128 MB NANDEthernet7 × Gigabit EthernetCombo Port1 × Gigabit Ethernet/SFP ComboHigh-Speed Fiber1 × SFP+ 10GOperating SystemMikroTik RouterOSRouterOS LicenseLevel 6DisplayLCDSerial ConsoleRS232USBMicroUSB Type ABMemory ExpansionmicroSDPowerDual AC PSU + Passive PoE inputAC Input100–240VPoE Input15–57VMaximum Power39WForm Factor1U RackmountDimensions443 × 175 × 44 mmOperating Temperature-20°C to +60°CCertificationsCE, EAC, RoHS
These specifications are confirmed by MikroTik's official product documentation.
Description

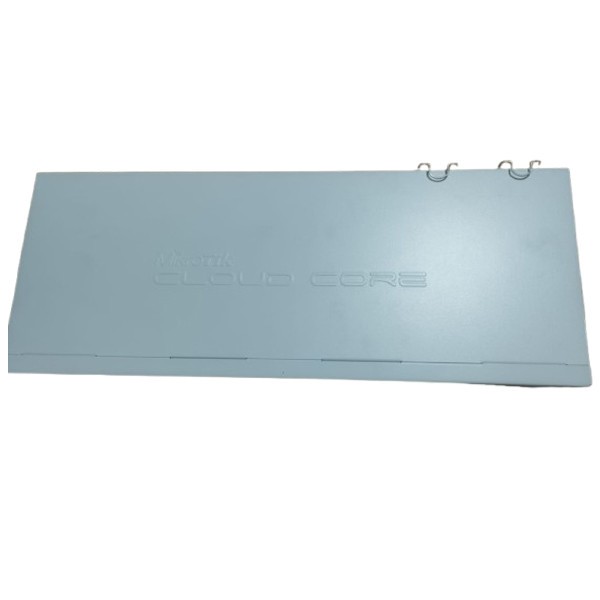

The MikroTik CCR1009-7G-1C-1S+ Cloud Core Router is a professional enterprise/carrier-grade network router powered by a 9-core 1.2GHz TILE processor with 2GB RAM and MikroTik RouterOS Level 6.
It provides 7 independent Gigabit Ethernet ports, a flexible Gigabit Ethernet/SFP combo port, and a 10-Gigabit SFP+ interface for high-speed fiber connectivity. Unlike earlier CCR1009 designs using a switch chip, this revision connects the Ethernet ports directly to the CPU, allowing greater utilization of the processor's routing capability.
Key Features
- Genuine MikroTik
- Cloud Core Router series
- 9-core 1.2GHz processor
- 2GB RAM
- 128MB NAND storage
- 7 × Gigabit Ethernet
- 1 × Gigabit Ethernet/SFP combo
- 1 × 10G SFP+
- RouterOS Level 6
- LCD panel
- Dual power supplies
- Passive PoE input
- RS232 serial console
- microSD expansion
- SmartCard/Mini-SIM slot
- 1U rackmount design
MikroTik's published testing shows fast-path routing throughput reaching roughly 15.8 Gbps with 1518-byte packets under its laboratory configuration. Actual performance depends on configuration and workload.
Typical Applications
Suitable for enterprise networks, ISP infrastructure, data centers, network aggregation, high-performance routing, VLAN networks, VPN applications, firewalling, bandwidth management, fiber networks and other professional network deployments.
Included Accessories
MikroTik originally supplied this model with:
- Rack ears
- 2 × IEC power cords
- USB OTG cable
- Screw/fastening kit
Only state these are included if they are actually present with your unit.
Important Model Distinction
Do not confuse your rackmount model with CCR1009-7G-1C-1S+PC.
The PC version is a smaller passively cooled model running its 9-core CPU at 1GHz, while the rackmount CCR1009-7G-1C-1S+ runs at 1.2GHz and uses dual AC power supplies.
Also note that MikroTik now marks the CCR1009-7G-1C-1S+ as discontinued, which is useful to disclose for an older new-old-stock unit.
