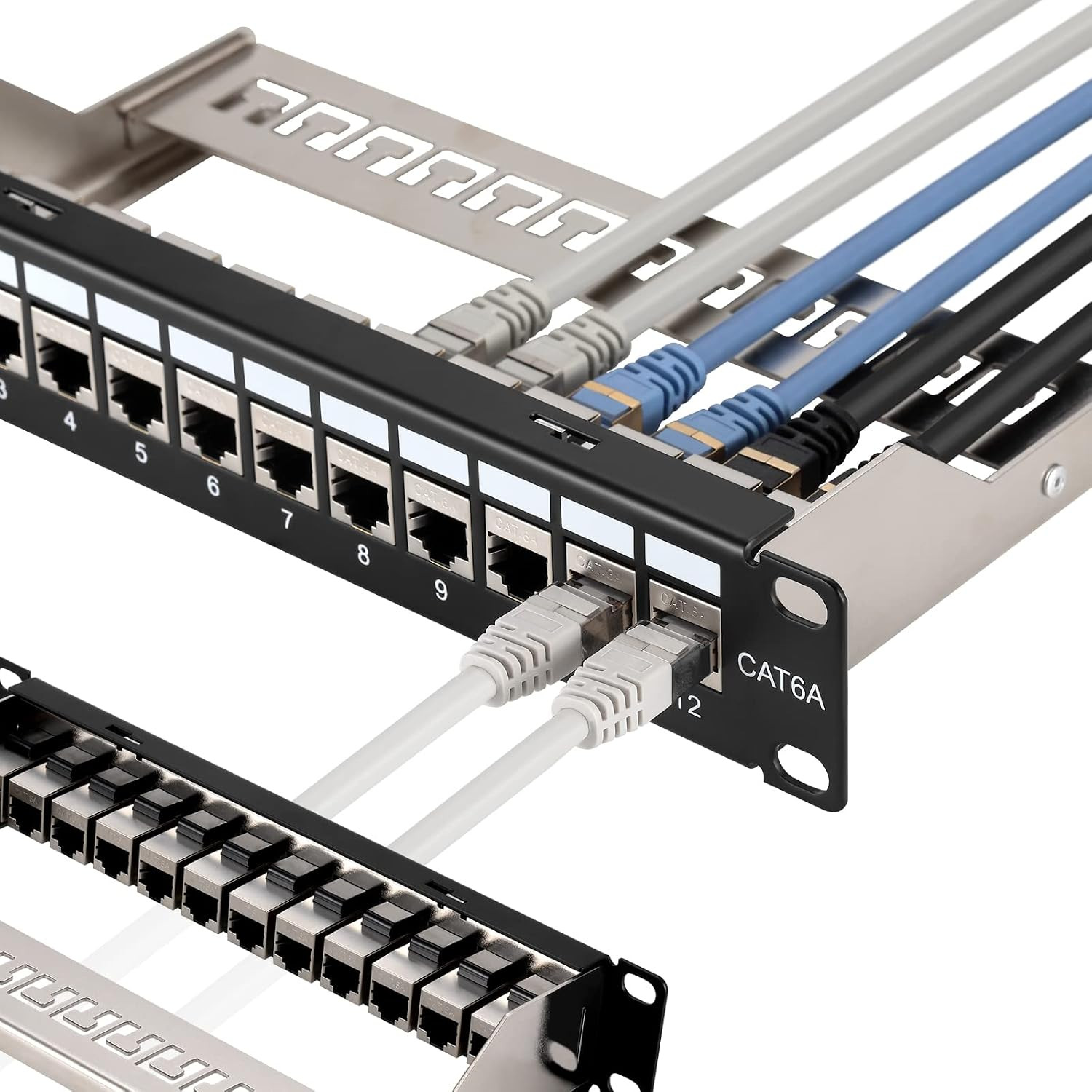

Mini 12 Port Cat6A Patch Panel with Inline Keystone 10G Support, Shielded 10-Inch with Removable Back Bar, 1U Network Patch Panel for Cat7, Cat6, Cat6A, Cat5EDescription Connector Type HDMI, RJ45, VGA Cable Type Ethernet Compatible Devices Laptop, PC, Router, Server, Television Other Special Features of the Product 10gigabits/s, High Speed Compatible Phone Models No Compatible Phone Models Ethernet Cable Category Cat 6a Connector Gender Female-to-Female Data Transfer Rate 10 gigabits_per_second Number of Pins 8 Frequency 10 GHz Recommended Uses For Product network connection, cable management, improving network stability Specification Met EIA, TIA Indoor Outdoor Usage Indoor, Outdoor Outer Material Steel Customer Package Type FFP Model Patch Panel Mini Item Length 10 inches Unit Count 1 Count Number of Items 12 Color Gold Item Shape Round Special Feature 10gigabits/s, High Speed

Product DescriptionAssembly Instruction for Cat6A Coupler Patch Panel

1. Plug all network cables into the back of keystone loaded on shielded patch panel cat6a.

2. Assembly detachable back bar into the patch panel

3. Fasten the network cable onto the back bar to sturdy cable and back bar. This stpe is very important to secure keystone, cable and back bar.

4. Put the whole patch panel onto 10 inch wall mount and screw the screw included.

Searching for 10 Inch patch panels?

10 inch patch panels are in compact size and in 10 inch wide instead of 19 inch. Therefore can only be used in 10 inch network racks or cabinet.

Used with10 inch data cabinet, it is a good sulution to store IT equipment in a more space saving manner for home network.

However, when purchasing a 10 inch patch panel, you need to check if your rack or cabinet are suitable for the appropriate 10 inch size. If your cabinet is not 10 inch type, then please turn to standard 19 inch patch panel.

Patch Panel 12 Port Cat6A with Inline Coupler Built for Easy Use, Excellent Speed and Reliable Connectivity

The Rapink ethernet patch panel support excellent performance transmission up to10-Gigabit, compatiable with the TIA/EIA 568-C.2 standard and cat7, cat6a, cat6, cat5e, cat5e UTP and STP cabling system.

10-inch 1u patch panel suitable for Rackmount, Wallmount, or cabinets.

This patch cat 6 wall mount contains thick steel detachable back bar. With zip ties, the back bar helps with cable management and takes some stress off the coupler, improve the working stability of the network connection port, and avoid keystone loose and the occurrence of network failures.

Cat6a patch panel came with 10g couplers making it easier to connect the cables.

Use this to replace a punch down patch panel.

Plug and play on both sides for ethernet cables.

This 10 inch rack blank panel is less prone to failure as well.

CAT6A passthrough coupler tested full 10 gigabyte certified.

Clean up the look of your cabinet or wallmount in 5 minutes.

Inline modular patch panel much better than punching down Keystones

These cat6 shielded patch panel were easy to install and use. Pass through design is more friendly to non-professional person since it is use terminated cables and plugged directly into switches.

Coupler patch panel let you don’t have to spend time wiring Cat5/6 in order to get your system up and running.

This network patch panel cat 6 will make your rack look much cleaner.

Cat 6 patch panel is well manufactured product with thick steel

1. Thick steel detachable back bar help reduce the stress of assemblied coupler.

2. Thick steel patch panel frame.

3. Label spaces are able to label everything. It completely reorganized your cables and everything looks a lot more tidy.

Comes with 12 couplers loaded on patch panel.

1. Loaded 12 pcs 10g coupler keystone

2. Detachable back bar

3. 10 inch bolt hole for fastening on rack or cabinet

Tie wraps help fasten cable and removable back bar

1.It is helpful that included extra and right-size zip ties to secure cables to bracket and stress relieve from couplers keystone.

2. Earth wire for STP cabling using.

What you get?

12 pcs sturdy cat6a coupler keystone loaded patch panel wall mount, removable cable back bar, screws, tie wraps.

• 【10 Inch width only, not for standard 19 inch】This 10 Inch 12 port patch panel can only match 10 inch rack or cabinet, can't match standard 19 inch rack or cabinet. Before purchasing pass through patch panel 10 inch, need to check if your rack or cabinet are suitable for the appropriate 10 inch size. If your cabinet is not 10 inch type, then please turn to standard 19 inch patch panel. This home networking panel is toolless termination and not require puch down tools.
• 【Why choose 10 Inch patch panel】Cost effeictve and space saving because of its compact 10 inch size. This 10 inch ethernet patch panel don't match standard 19 inch rack or cabinet. Up to 70% time save and only 5 minutes needed to install Cat6a shielded inline 1u patch panel.
• 【Easy expansion and repaire】Its patch panel holder allows easy input and output cat6a coupler. Therfore, convenient to repaire when 1 port network broken. Meanwhile, cat6a coupler replacable with other coupler such as fiber adaptor, coax coupler, HDMI, VGA and so on.
• 【10G speed via Gold plated pins】 All 8P8C of rj45 jack panel keystone are golden plated to support better network connection up to 10G speed Ethernet network. This is a well made keystone panel and can be used as cat7 patch panel to upgrade cat7 network.
• 【Detachable back bar included】This patch panel wall mount contains thick steel detachable back bar. With zip ties, it can effectively reduce the deformation of the ethernet cable, improve the working stability of the network connection port, and avoid keystone loose and the occurrence of network failures caused by the loosening and deformation of the cable. What you get?12 pcs sturdy cat6a coupler keystone loaded patch panel wall mount, removable cable back bar, screws, tie wraps.
