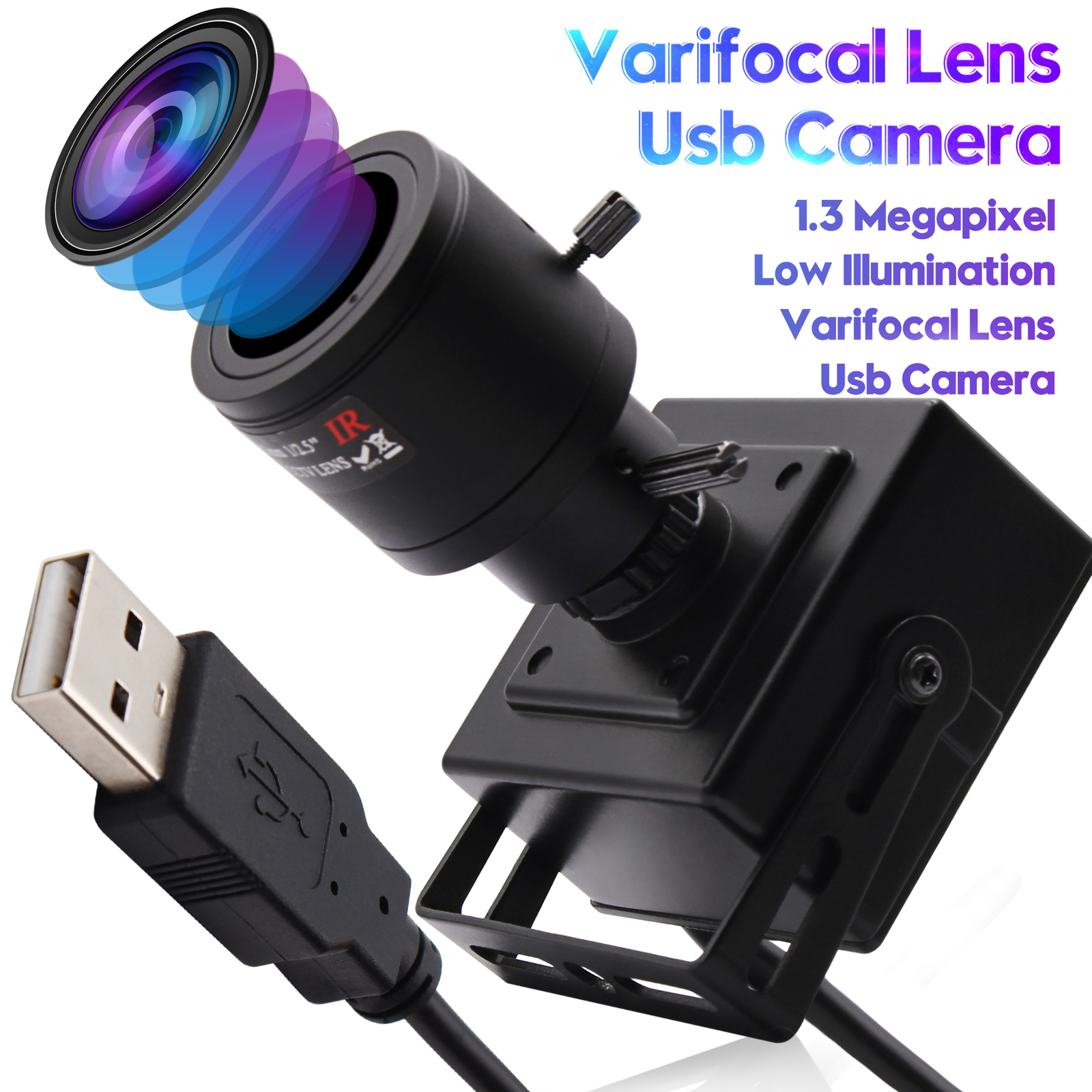

ELP LOW LIGHT WebcameraAR0130 1/3 CMOS Sensor 960P High Speed USB2.0 interface Camera with 2.8-12mm varifocal LensFeatures:*1.3Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image and accurate color reproduction.*low light performance – ideal for any lighting condition.*Super small outline and thin profile for embedded applications.*High frame rate–30 fps in 1280X960 resolution.*High quality lens, true and undistorted color image.*Low power consumption – ideal for portable equipment.*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.*Camera with UVC.
Key Specifications:
Module Size
38mm × 38mm 32mm × 32mm
Temperature (Operation)
-20°C to 70°C
Temperature (Stable Image)
0°C to 60°C
Camera Board Assembly technique
SMT (ROSH)
Lens
varifocal lens
Object (Center)
interface
USB 2.0 High Speed
protocol
USB Video Class(UVC)
Power
USB bus power
Operating system request
Win XP\Win7\Win8\Android\Linux\Mac OS
Certifications
FCC and CE
Sensor Type
AR0130 (1/3” )
Active Array Size
1280 *960
Minimal illumination
0.01Lux
Pixel Size
3.75um
Maximum Image Transfer Rate
1280 (H) x 960 (V) pixels MJPEG 15fps
1280 (H) x 720 (V) pixels MJPEG 30fps
800 (H) x 600 (V) pixels MJPEG 30fps
640 (H) x 480 (V) pixels MJPEG 30fps
320 (H) x 240 (V) pixels MJPEG 30fps
S/N Ratio
44dB
Dynamic shutter/ frame exposure
Lens Type
Lens Construction
5G+IR
Focal Length
2.8-12mm varifocal Filter
650±10nm
DSP Formats
YUYV/MJPEG
IR CUT
SUPPORT
Adjustable parameters
Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Cable
1M(2M/3M/5M Optional)
ApplicationsCMOS sensor for high quality image and low power consumption
