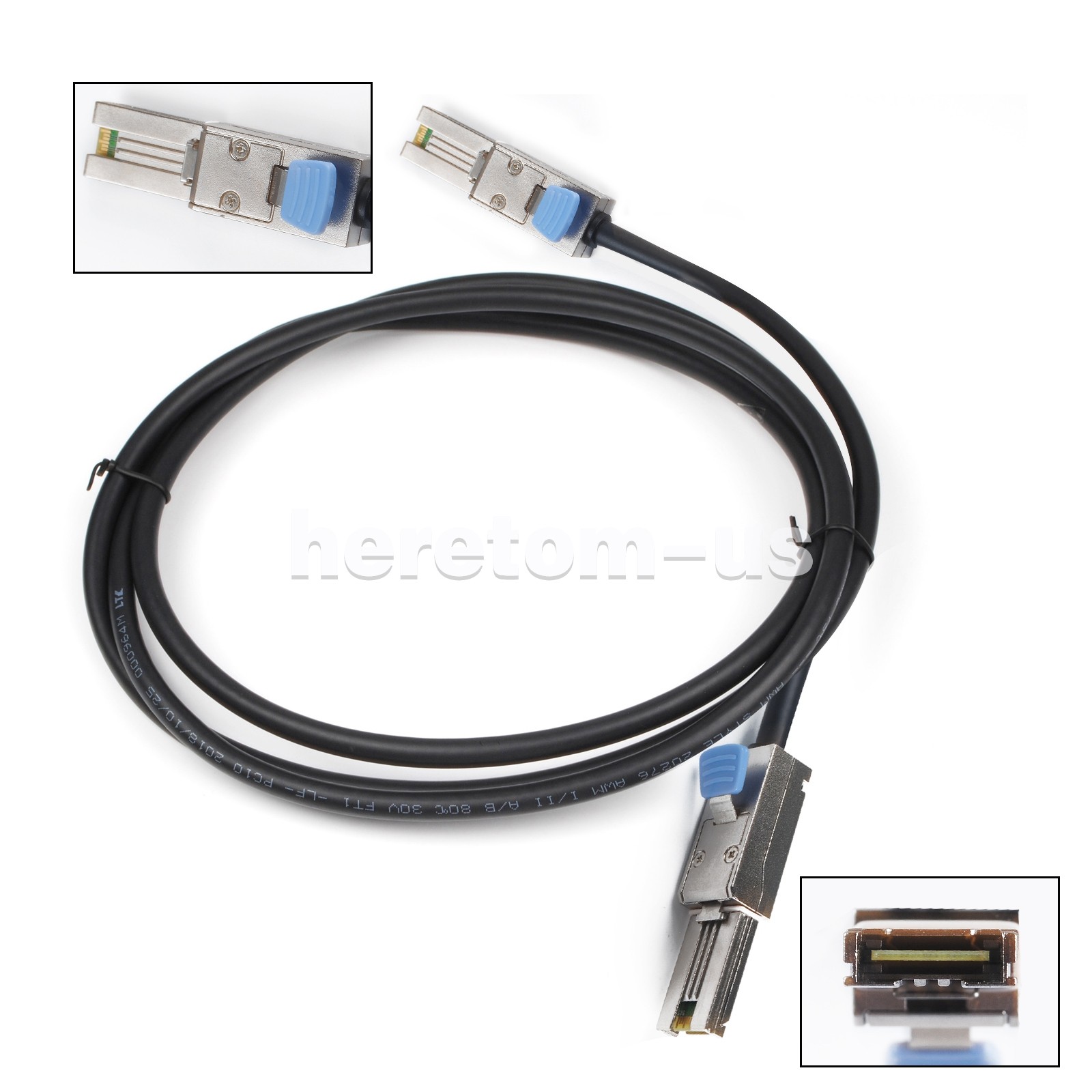

SFF-8088 TO SFF-8088
External SAS Cable features "mini-SAS" SFF-8088 to SFF-8088 with heavy- duty metal backshells. This 4-channel cable is constructed with a high-performance Madison cable, which features individually shielded parallel pairs, double EMI/RFI shielding, EMI Noise Suppressor, and 3.0 Gigabytes per second performance on each channel. The transfer speed can reach 6.0G/s
.MINI SAS 26P TO 26P. Mini SAS 26 cable, SFF-8088 to SFF-8088 cable, 1/2/3M
. SFF-8088 to SFF-8088 External Mini SAS 26pin Cable
. Host-Based SFF-8088 26-CKT External Universal Key
. Target-Based SFF-8088 26-CKT External Universal Key
Compatible Products:
Adaptec RAID 3085
Adaptec 1045
Adaptec RAID 2045
Adaptec RAID 5085
Adaptec RAID 51245
Adaptec RAID 51645
Adaptec RAID 52445
Adaptec RAID 5445
Adaptec RAID 4x Mini-SAS (SFF-8088) to HD Mini-SAS (SFF-8644) Cables function as a "Hybrid Cable"; thus permitting the installer to link up legacy Mini-SAS devices with the latest generation of Mini-SAS HD (High Density) hardware. This 4x HD Mini-SAS to Mini-SAS cable features a universal keyed SFF-8644 pull to release lanyard connector on one end and a universal keyed SFF-8088 pull-to-release lanyard connector on the other, each of which are fully intermateabie with ANY manufacturer's 4x iPass+ HD (Mini-SAS HD) and 26-pin Mini-SAS receptacle ports. Due to Amphenol's technological lead on high-speed over copper, our HD Mini-SAS cable assemblies are thinner (i.e. 30 AWG) and more flexible than competing HD Mini-SAS products -- providing convenient routing options and improved airflow while exceeding the performance parameters of a thicker grade cable (i.e. 28 AWG).Specifications:
External 4x Mini-SAS HD to Mini-SAS hybrid cable assembly
Guaranteed SAS 2.1 drive performance at 6.0 Gbps data rates per lane
SFF-8644 (4x HD Mini-SAS) to SFF-8088 (4x Mini-SAS) connectors
All connectors feature universal keying with pull-to-release lanyards
30 AWG Twinaxial SKEWCLEAR 8-pair high-bandwidth low-skew wire
External cabling solution for connecting Mini-SAS to HD Mini-SAS devices
Zinc Die-Cast connector housings for excellent durability & EMI resistance
Precision matched impedance design (100 Ohm +/- 20%)
Mating Durability: 250 cycles minimum / 500 cycles nominal
Maximum Voltage Rating: 30V AC
Maximum Current Rating: 500 mA AC
Temperature Handling: Tested to 105ºC for 72 hours
Insertion Loss: No more than 6.0 dB max at 4.5 GHz
Length:1M/2M
Fully compliant to the latest SAS 2.1 AND SAS 3.0 interface specifications
Subject to Serial Attached SCSI 6.0 Gbps test certification before shipment
Components are UL listed
Package Included:
