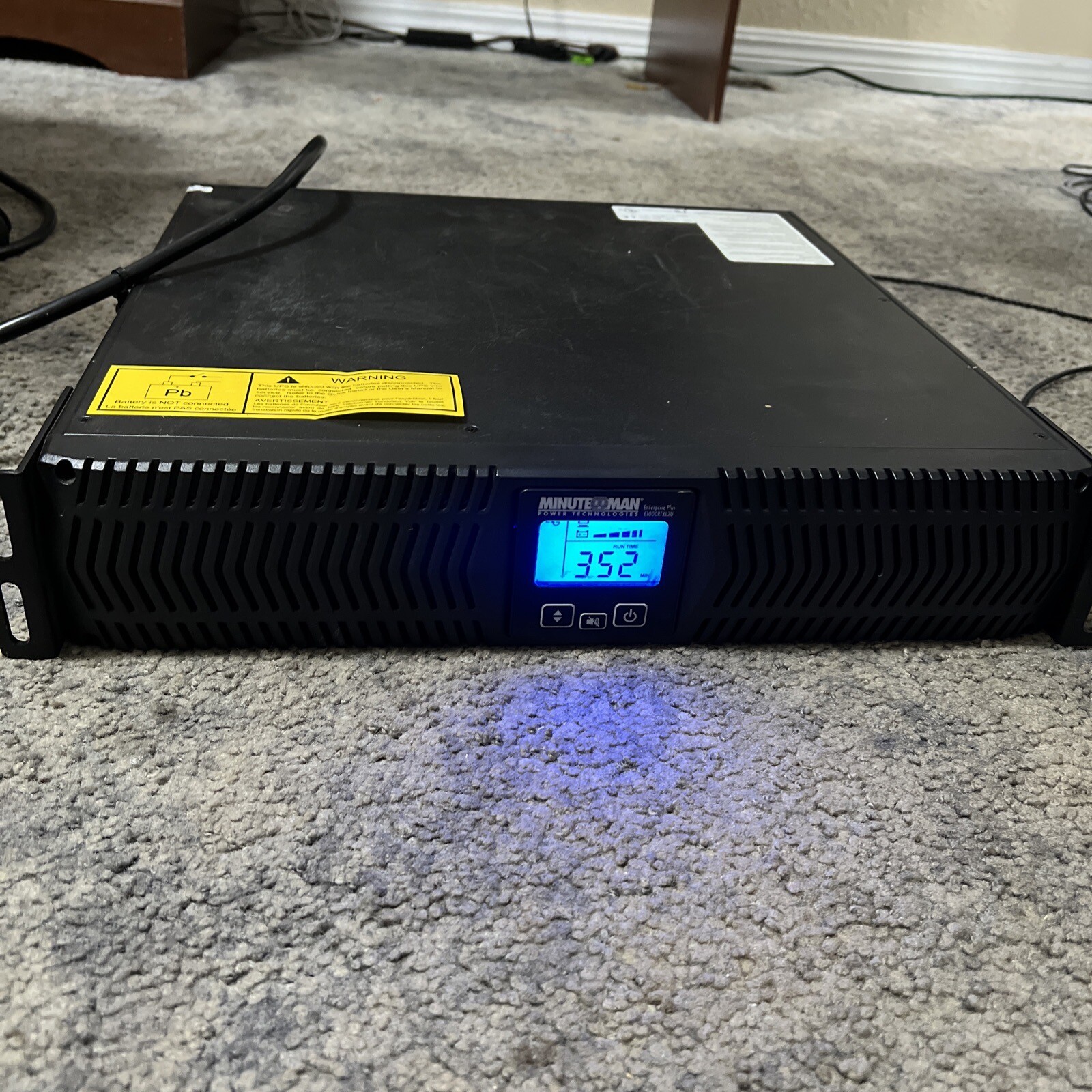

1000 VA Line Interactive Rack/Wall/Tower UPS with 8 Outlets
Model: E1000RTXL2U
On-Battery Output Waveform: True sine wave
Applications: Voice and Data Networking, Servers, Sensitive Electronics
UPC: 784755158321
Description:
The EnterprisePlus LCD E1000RTXL2U is a 1000VA/800W 120 VAC line interactive, extended runtime rack/wall/tower UPS designed for critical, power-sensitive electronic environments.
Back-up time - full load: 6.2 minutes
Back-up time - half load: 14.2 minutes
Runtimes for small loads of less than 10 percent of the stated capacity of a given UPS may vary greatly. Please call to confirm most accurate runtime for small loads.
Features:
0.8 power factor - increases the capacity of the unit without migrating to larger models (0.88 power factor for 2000VA and 0.853 power factor for 3000VA).
Load shedding - extends the time of critical applications without adding external battery packs by removing power to non-essential devices connected to the same UPS
Independent Battery Bypass - allows the UPS to provide voltage regulation with surge and spike protection on the utility AC power even when batteries are weak or dead.
Virtually unlimited extended runtime for critical applications - virtually an unlimited number of battery packs can be connected to the EnterprisePlus LCD UPS for extending run times
Flexibility in installation - floor-standing tower and 19-inch rackmount hardware is included. Optional installation kits are available for 23-inch racks/cabinet and wallmount installation.
Small form factor - 3.5-inch (2U) rack/tower case style
Independent battery pack chargers - reduces battery recharge times
Simultaneous DB-9, USB and SNMP communications (SNMP communications card sold separately)
Minuteman® SentryHD UPS monitoring and control software included
Easy to read front panel LCD display - provides Input / Output voltage & frequency, UPS and battery mode / status, Load capacity, Estimated runtime based on connected load
Properties:
Device type: Uninterruptible Power Supply
Input plug type: 5-15P 5-15P
Input voltage: 120/125
Output voltage: 120/125
Number of fully protected outlets: 8 (5-15R) 5-15R
Number of surge protected only outlets: None
Phone / modem (RJ-11) protection? Yes
Network (RJ-45) protection? Yes
No. of serial (DB-9) ports: 1
No. of dry contact ports: 1
USB communications port: Yes
Battery:
User replaceable battery? Yes
No. of internal batteries: 1
Replacement battery description: Battery module
Replacement battery part no.: BM0029
Replacement battery suggested retail price: $240.00 USD (each)
Technical Attributes:
SNMP manageable? Yes
Power in Watts: 800
EMI/RFI filtering? Yes
Max. energy dissipation: 1000 (Joules)
Protected equipment insurance value: $100000 USD (US and Canada Only)
Switchover time: 2-6 ms typical
Software:
*Operating system shutdown software included: Yes
Op. System(s) supported by SentryHD software: Windows 10, 8, 7 - Windows Server 2019, 2016, 2012, 2008, 2003 - Linux CentOS, Citrix XenServer, Fedora, Linux KVM, OpenSuSE, ubuntu
Product Dimensions (in inches) :
Length: 17.40
Width/Depth: 19.00
Height: 3.50
Weight: 43.70 lbs.
