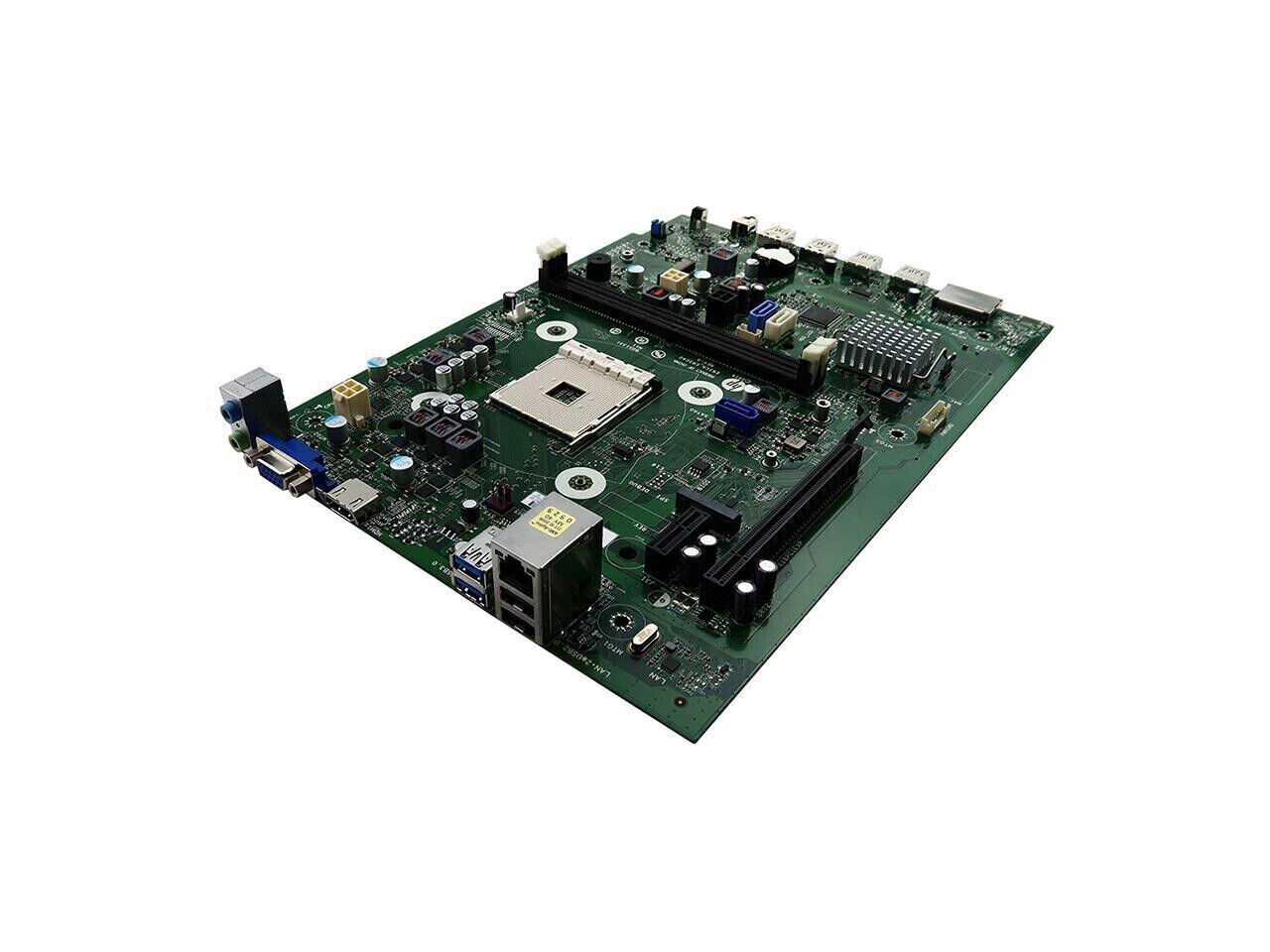

NEW HP Pavilion TG01 TG01-0023w Erica Motherboard AM4 mATX L56021-601 L56021-001
HP Desktop PCs - motherboard specifications, EricaMotherboard description
Form Factor
- Mini ATX
- Dimensions: 29.09 x 20.3 cm (11.45 x 7.99 in)
Chipset
Processor upgrade information
- TDP: up to 65 W
- Socket type: AM4
- Motherboard supports the following processor upgrades:ProcessorTDPIntegrated graphicsAMD Ryzen 5 3400G, 3.7 GHz Base frequency, up to 4.2 GHz burst frequency, 4 MB cache, Quad core (Picasso)65 WRadeon Vega 11 GraphicsAMD Ryzen 3 3200G, 3.6 GHz Base frequency, up to 4.0 GHz burst frequency, 4 MB cache, Quad core (Picasso)65 WRadeon Vega 8 GraphicsAMD Athlon 300UGE, 3.6 GHz Base frequency, 4 MB cache, Dual core (Picasso)65 WRadeon Vega 3 GraphicsAMD Ryzen 5 3500, 3.4 GHz Base frequency, up to 4.1 GHz burst frequency, 16 MB cache, Hexa core (Matisse)65 WNAAMD Ryzen 7 3700X, 3.6 GHz Base frequency, up to 4.4 GHz burst frequency, 32 MB cache, Octa core (Matisse)65 WNA
Memory upgrade information
- Dual channel (1 DIMM per channel) memory architecture
- Two DDR4 UDIMM (288-pin) sockets
- Supports PC4-25600 (DDR4-3200)
- Supports 4 GB, 8 GB, and 16 GB DDR4 UDIMMs
- Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
- Supports up to 32 GB (unbuffered) on 64-bit computersNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.
VideoIntegrated graphics
AudioIntegrated audio
- Audio Codec: ALC3601-CG
- High Definition (Azalia) 5.1 channel audio supportNOTE:The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound.
- Audio jack presence detectionNOTE:An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.Integrated audio is not available if a sound card is installed.
NetworkLAN: 1000BASE-T
- Technology: Realtek RTL8118ASH
- Data transfer speeds: up to 10/100/1000 Mb/s
- Transmission standards: 1000BASE-T Ethernet
Expansion slots
- One PCIe x16 socket
- One PCIe x1 socket
- One M.2 socket 1, key A
- One M.2 socket 3, key M for SSD (PCIe x2)
I/O portsFront I/O ports(1) USB 3.1 Gen 1 Type-C(2) USB 3.1 Gen 2 Type-A(2) USB 3.1 Gen 1 Type-A(1) Headphone/Microphone jack portBack I/O ports(4) USB 2.0 Type-A(1) RJ-45/Ethernet port(1) HDMI v1.4b/HDCP 2.2 port(1) VGA port(3) Audio ports
