Innovative and aesthetically-designed 270 series outdoor wireless access points deliver gigabit Wi-Fi performance to 802.11ac mobile devices under any weather conditions. The 270 series is also the only outdoor AP that enables 802.11n clients to operate three-times faster at greater distances.

Purpose-built to survive in the harshest outdoor environments, 270 series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial- strength surge protection.

With a maximum data rate of 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, 270 series outdoor APs supports concurrent dual-radio operation at speeds that greatly exceed Fast Ethernet.

WI-FI CLIENT OPTIMIZATION

To eliminate sticky client behavior and ensure consistently high performance, every Aruba AP includes ClientMatch technology, which gathers session performance metrics that steer mobile devices to the best AP and radio on the WLAN in real time.

UNIQUE BENEFITS

•Innovative industrial design
-Eliminates installation complexity-Inconspicuous design that improves aesthetics-Delivers IP66- and IP67-rated protection from

the elements•Best-in-class RF management

-Integrated Adaptive Radio Management technology manages the 2.4-GHz and 5-GHz radio bands and ensures that APs stay clear of RF interference

•Reliable and predictable Wi-Fi performance-Patented ClientMatch technology ensures that

roaming clients associate with the best AP to

maximize performance
-AppRF technology identifies and prioritizes applications

on the network
-Unified wired and wireless policy with Dynamic

Segmentation•Spectrum analysis

-Capable of part-time or dedicated spectrum analysis, which scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference

• Limited lifetime warranty – an industry first for outdoors

CHOOSE YOUR OPERATING MODE

The 270 series of outdoor APs offers a choice of operatingmodes to meet your unique management and deployment AP or Remote AP (RAP) running ArubaOS. When managed by Aruba Mobility Controllers,the 270 series offers centralized configuration, dataencryption, policy enforcement and network services, aswell as distributed and centralized traffic forwarding.

•Aruba Instant AP running InstantOS. In Aruba Instant mode, one AP automatically distributes the networkconfiguration to other APs. Just power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.

•Secure enterprise mesh

In addition to operation mode, the APs can be optionallyconfigured to perform the following functions:

• Spectrum analysis: Dedicated scan mode identifiessources of RF interference.

• Air monitoring: Dedicated scan mode provides wirelessintrusion protection.

• Hybrid AP: Serves Wi-Fi clients and simultaneously provideswireless intrusion protection and spectrum analysis.

For large installations with multiple sites, the Aruba Activate service reduces deployment time by automating provisioning,firmware upgrades, and inventory management. With ArubaActivate, Instant APs are factory shipped to any site andconfigure themselves when powered up.

If WLAN and network requirements change, a built-in migration path allows 270 series Instant APs to become part of a WLAN that is centrally managed by a Mobility Controller.

ACCESS POINT MODELS

•AP-274 and IAP-274
-2.4-GHz and 5-GHz radios, each with 3x3 MIMO and

three external antenna connectors•AP-275 and IAP-275

-2.4-GHz and 5-GHz radios, each with 3x3 MIMO and three integrated omni-directional antennas

•AP-277 and IAP-277
-2.4-GHz and 5-GHz radios, each with 3x3 MIMO and three

integrated 80o H x 80o V beamwidth directional antennas

WIRELESS RADIO SPECIFICATIONS

• AP type: Outdoor, dual radio, 5-GHz 802.11ac and2.4-GHz 802.11n
-In addition to 802.11n data rates, the 2.4-GHz radio

supports 802.11ac 256-QAM modulation. This gives TurboQAM-enabled clients a 33% boost to deliver up to 600 Mbps.

• Supported frequency bands (country-specific restrictions apply):
-2.4000 GHz to 2.4835 GHz
-5.150 GHz to 5.250 GHz

-5.250 GHz to 5.350 GHz-5.470 GHz to 5.725 GHz-5.725 GHz to 5.875 GHz

• Available channels: Dependent upon configuredregulatory domain

•Dynamic frequency selection (DFS) optimizes the use of available RF spectrum

DATA SHEET

ARUBA 270 SERIES OUTDOOR ACCESS POINTS

• Supported radio technologies:
-802.11b: Direct-sequence spread-spectrum (DSSS)-802.11a/g/n/ac: Orthogonal frequency-division

multiplexing (OFDM)
-802.11n/ac: 3x3 MIMO with up to three spatial streams

• Supported modulation types:
-802.11b: BPSK, QPSK, CCK
-802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

(with TurboQAM clients)
-802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

• Transmit power: Configurable in increments of 0.5 dBm •Maximum (aggregate, conducted total) transmit power

(limited by local regulatory requirements):-2.4-GHz band: +28 dBm (23 dBm per chain)-5-GHz bands: +28 dBm (23 dBm per chain)

•Advanced cellular coexistence (ACC) feature to minimize interference from cellular systems

•Maximum ratio combining (MRC) for improved receiver performance

•Cyclic delay diversity (CDD) for improved downlink RF performance

•Short guard interval for 20-MHz, 40-MHz and 80-MHz channels

•Space-time block coding (STBC) for increased range and improved reception

• Low-density parity check (LDPC) for high-efficiency errorcorrection and increased throughput

•Explicit transmit beam-forming (TxBF) for increased reliability in signal delivery

• Supported data rates (Mbps):
-802.11b: 1, 2, 5.5, 11
-802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54-802.11n: 6.5 to 450 (MCS0 to MCS23, 1 to 3

spatial streams)
-802.11ac: 6.5 to 1,300 (MCS0 to MCS9, 1 to 3

spatial streams)
• 802.11n high-throughput (HT) support: HT 20/40 • 802.11ac very high throughput (VHT) support:

VHT 20/40/80
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU Power • Maximum power consumption: 23 watts
• Direct AC source: 100-240-Volt AC
• Power over Ethernet (PoE): 48 Vdc (nominal)

802.3at compliant

DATA SHEET

ARUBA 270 SERIES OUTDOOR ACCESS POINTS

ANTENNAS

• AP-274: Six N-type female connectors for external antennas • AP-275: Six integrated omni-directional antennas for 3x3

MIMO with maximum antenna gain of 5 dBi in 2.4 GHz and 5 dBi in 5 GHz. Built-in antennas are optimized for horizontal mounted orientation of AP-275.

• AP-277: Six integrated multipolarized directional antennaswith 80o H x 80o V beamwidths for 3x3 MIMO with maximum antenna gain of 6.5 dBi in 2.4 GHz and 5 GHz.

OTHER INTERFACES

• One PoE+ PD port 10/100/1000BASE-T Ethernet network interface (RJ-45)

•One port 10/100/1000BASE-T Ethernet networkinterface (RJ-45)

•AC power interface, power cords sold separately•Serial console interface (micro USB)
•Reset button
• Visual indicator (LED):

-Power/system status; automatically disabled after initial operation period

MOUNTING

•Must be ordered separately• Optional mounting kits:

-AP-270-MNT-V1: Aruba 270 series AP long mount kit forpole/wall mounting. Reduces impact of obstruction by pole or extends away from corner.

-AP-270-MNT-V2: Aruba 270 series AP short mount kit forpole/wall mounting

-AP-270-MNT-H1: Aruba 270 series AP hanging bracketfor horizontal/inclined surface/ pole Dimensions/weight (excluding mount):
-23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover-9.0” (W) x 9.4” (D) x 7.5” (H)
-2.7 kg/6 lbs
-23 cm (W) x 24 cm (D) x 14 cm (H) without aesthetic cover-9.0” (W) x 9.4” (D) x 5.5” (H)
-2.4 kg/5.3 lbs

AP-275

• Dimensions/weight (excluding mount):-23 cm (W) x 24 cm (D) x 27 cm (H)-9.0” (W) x 9.4” (D) x 10.6” (H)
-2.4 kg/5.3 lbs

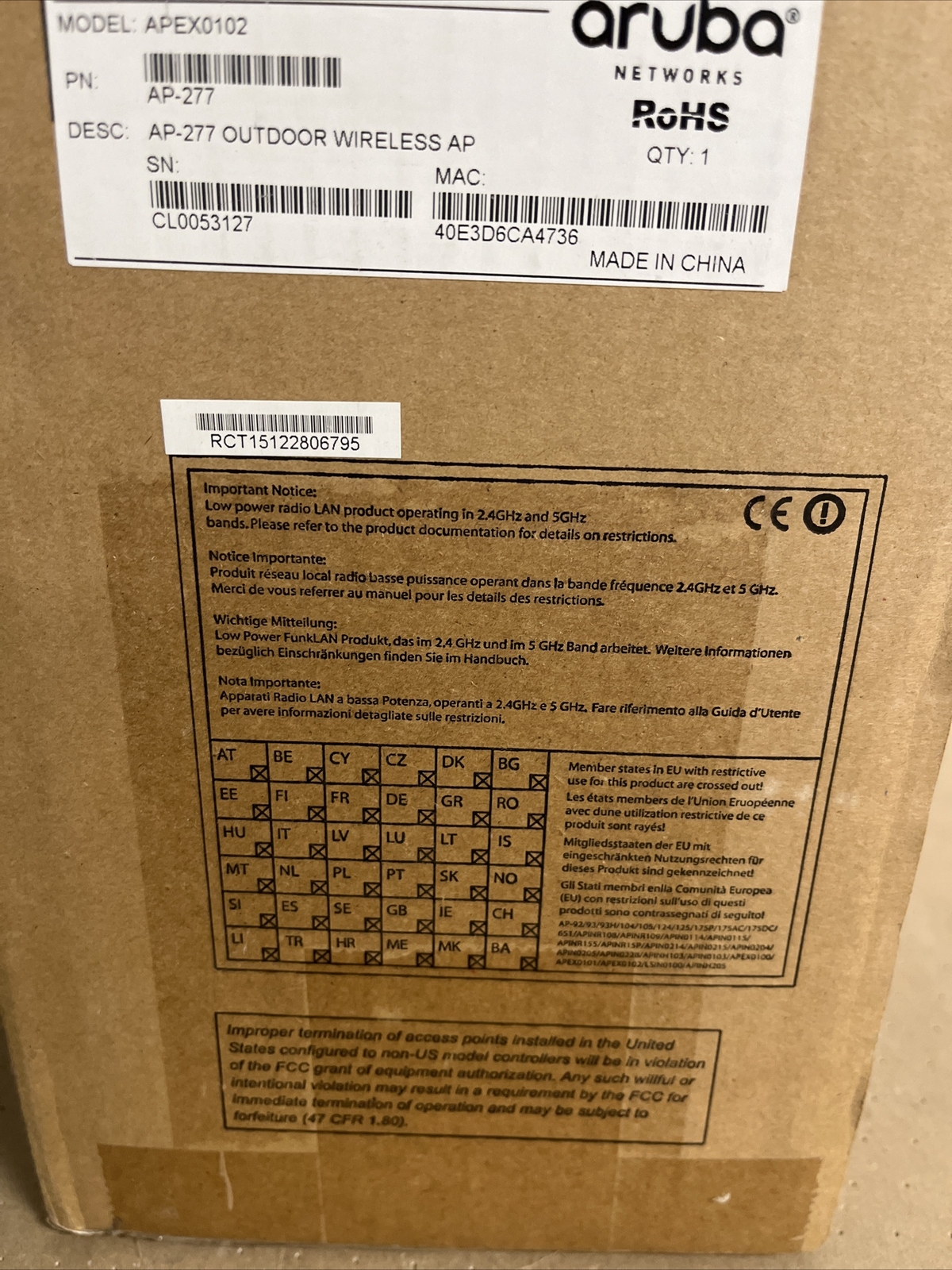

AP-277

• Dimensions/weight (excluding mount):-23 cm (W) x 22 cm (D) x 13 cm (H)-9.0” (W) x 8.7” (D) x 5.1” (H)
-2.1 kg/4.6 lbs

ENVIRONMENTAL

• Operating:
-Temperature: -40° C to +65° C (-40° F to +150° F)-Humidity: 5% to 95% non-condensing

• Storage and transportation:
-Temperature: -40° C to +70° C (-40° F to +158° F)

• Operating Altitude: 3000m
• Chassis Rating: IP66 and IP67
• Wind Survivability: Up to 165 mph
• Shock and Vibration: ETSI 300-19-2-4 spec T41.E of Canada
•CE Marked
•RED Directive 2014/53/EU
•EMC Directive 2014/30/EU
•Low Voltage Directive 2014/35/EU•EN 300 328

• EN 301 489
• EN 301 893
• UL/IEC/EN 60950
•EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information andapprovals, please see your Aruba representative.

REGULATORY MODEL NUMBERS

• AP-274 and IAP-274: APEX0101 • AP-275 and IAP-275: APEX0100 • AP-277 and IAP-277: Scheme Safety, cTUVus
• Wi-Fi Alliance certified lifetime warranty

MINIMUM OPERATING SYSTEM SOFTWARE VERSIONS

•ArubaOS 6.4 (AP-274, AP-275), Aruba OS 6.4.3 (AP-277)•Aruba Instant 4.1 (AP-274, AP-275),

Aruba Instant 4.2.0 (AP-277)

DATA SHEET

ARUBA 270 SERIES OUTDOOR ACCESS POINTS

RF PERFORMANCE TABLE

Maximum transmit power (dBm) per transmit chain

Receiver sensitivity (dBm) per receive chain

802.11b 2.4 GHz

1 Mbps 23.0 2 Mbps 23.0 5.5 Mbps 23.0 11 Mbps 23.0802.11g 2.4 GHz and 802.11a 5 GHz

6 Mbps 23.0 54 Mbps19.0802.11n HT20 2.4 GHz and 5 GHz
MCS0/8 23.0 MCS7/15 18.0802.11n HT40 2.4 GHz and 5 GHz

MCS0/8 23.0 MCS7/15 18.0802.11ac VHT20 5 GHz
MCS0 23.0MCS916.0802.11ac VHT40 5 GHz

MCS0 23.0MCS915.0802.11ac VHT80 5 GHz
MCS0 23.0MCS915.0

-95.0 -93.0 -61.0

Maximum capability of the hardware provided. Maximum transmit power is limited by local regulatory settings. RF performance numbers for AP-274 are slightly lower due to additional internal RF circuitry.
