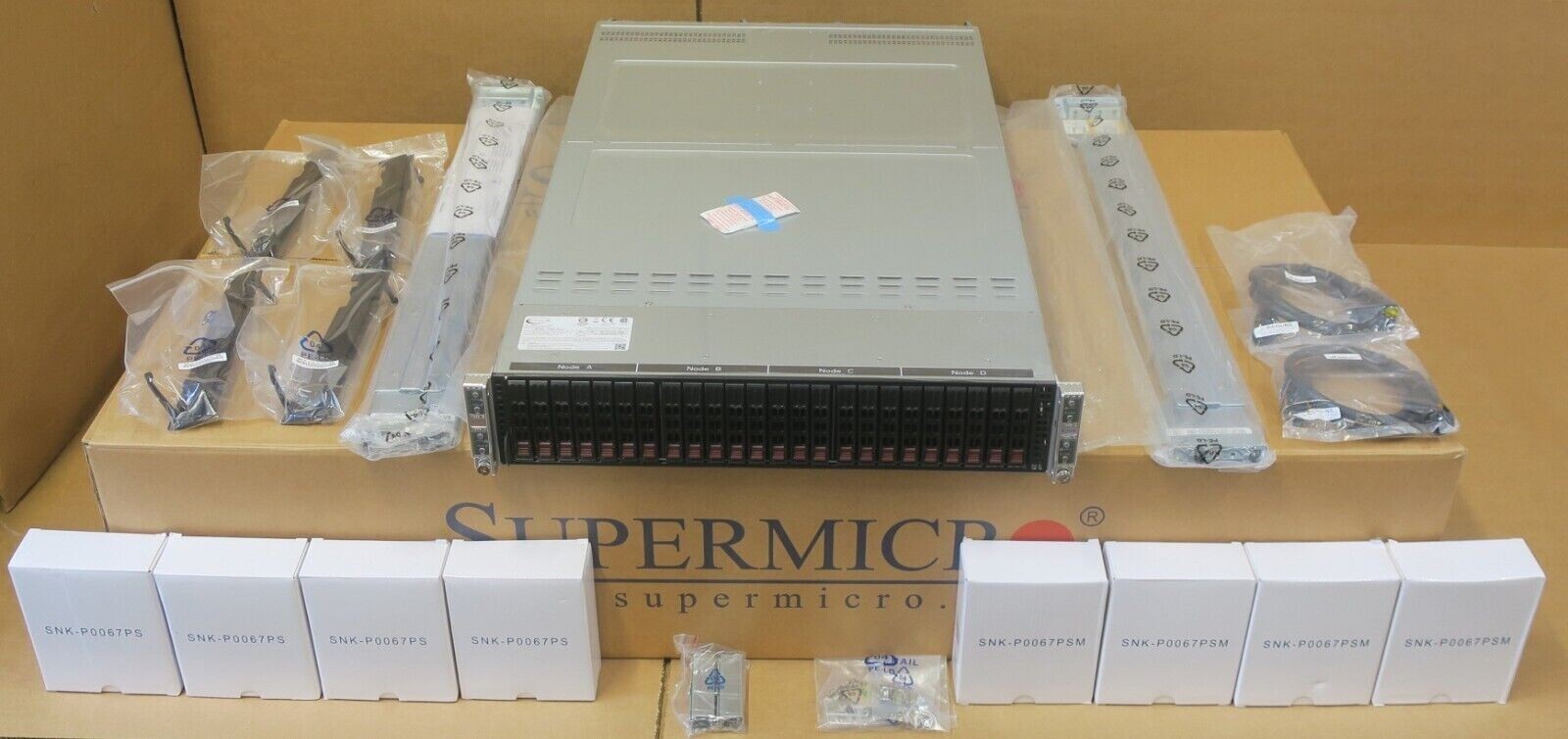

NEW Supermicro SuperServer 2029TP-HC0R 24x 2.5" Bay 4x X11DPT-PS CTO Server CSE-217Node P/N:Super X11DPT-PS
New2 Years Warranty
Rails & Accessories Included
Included:

• 1 x Supermicro SuperServer 2029TP-HC0R4-Node Server
• 24 x 2.5" SAS/SATA Bays with 24 x 2.5" Drive Caddies
• 1 x 24-Port 4-Node Backplane 6x 2.5" Drive Bays Per NodeBPN-SAS3-217HQ2
• 2 x 2200W Power SuppliesPWS-2K20A-1R
• 4 x Server Nodeseach with:
• 2 x Heatsinks (1xSNK-P0067PS, 1x SNK-P0067PSM)
• 16 x DDR4 Memory Slots
• Motherboard -Super X11DPT-PS
• Backplane Adapter -BPN-ADP-S3008L-L6IP
• 1 x Right Side Riser Card With 1x PCIe x16 SlotRSC-R1UTP-E16R
• 1 x Left Side Riser Card With 1x PCIe Specification:
  Product SKUsSYS-2029TP-HC0R
  • SuperServer 2029TP-HC0R (Black)
  Motherboard (Four per System)
  Super X11DPT-PSProcessor (per Node)CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W*
  Cores
  • Up to 28 Cores

  Note*Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)System Memory (per Node)Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
  Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
  ††Cascade Lake only. Contact your Supermicro sales rep for more info.On-Board Devices (per Node)Chipset
  • Intel® C621 chipset
  SAS
  • Broadcom 3008 SAS3 (12Gbps) controller;
    RAID 0, 1, 1E/10 support
  Network Controllers
  • Barebones and Complete System must have at least oneSIOMornetworkcardinstalled per node
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  Graphics
  • ASPEED AST2500 BMC
  Input / Output (per Node)SAS
  • 6 SAS3 (12Gbps) ports
  LAN
  • 1 RJ45 Dedicated IPMI LAN port
  USB
  • 2 USB 3.0 ports (rear)
  VGA
  • 1 VGA port
  Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header (internal)
  Others
  • 2SuperDOMsupport on the motherboard
  • 1 NVMe or 2 SATA M.2 (22x80/60/42 mm) support with option part: AOC-SMG3-2H8M2
  • M.2 and SuperDOM are for OS boot and they cannot coexist
  System BIOSBIOS Type
  • AMI 32MB SPI Flash ROM
  ManagementSoftware
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM,SPM,SUM
  • SuperDoctor® 5
  • Watchdog
  Power Configurations
  • ACPI Power Management
  PC Health MonitoringCPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 5+1 Phase-switching voltage regulator
  FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
  Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  Omni-Path Fabric CPUs
  • Do not support
  ChassisForm Factor
  • 2U Rackmount
  Model
  • 17.25" (438mm)
  Height
  • 3.47" (88mm)
  Depth
  • 28.5" (724mm)
  Weight
  • Gross Weight: 90 lbs (40.9kg)
  • Net Weight: 72 lbs (32.7 kg)
  Available Colors
  • Black
  Front PanelButtons
  • Power On/Off button
  • UID button
  LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
  Expansion Slots (per Node)PCI-Express
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 1 SIOM card support

    Note: Barebones and Complete System must bundle with Network Card


  (With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function)
  Drive Bays (per Node)Hot-swap
  • 6 Hot-swap 2.5" SAS/SATA HDD trays
  System CoolingFans
  • 4 Heavy duty 8cm PWM fans with optimal fan speed control
  Power Supply2200W Redundant Power Supplies with PMBusTotal Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
  AC Input Frequency
  • (W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    CertificationTitanium Level

    Operating EnvironmentRoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
