• This is a high-end adapter card built for data centres, HPC (high-performance computing), and other performance-sensitive network environments.

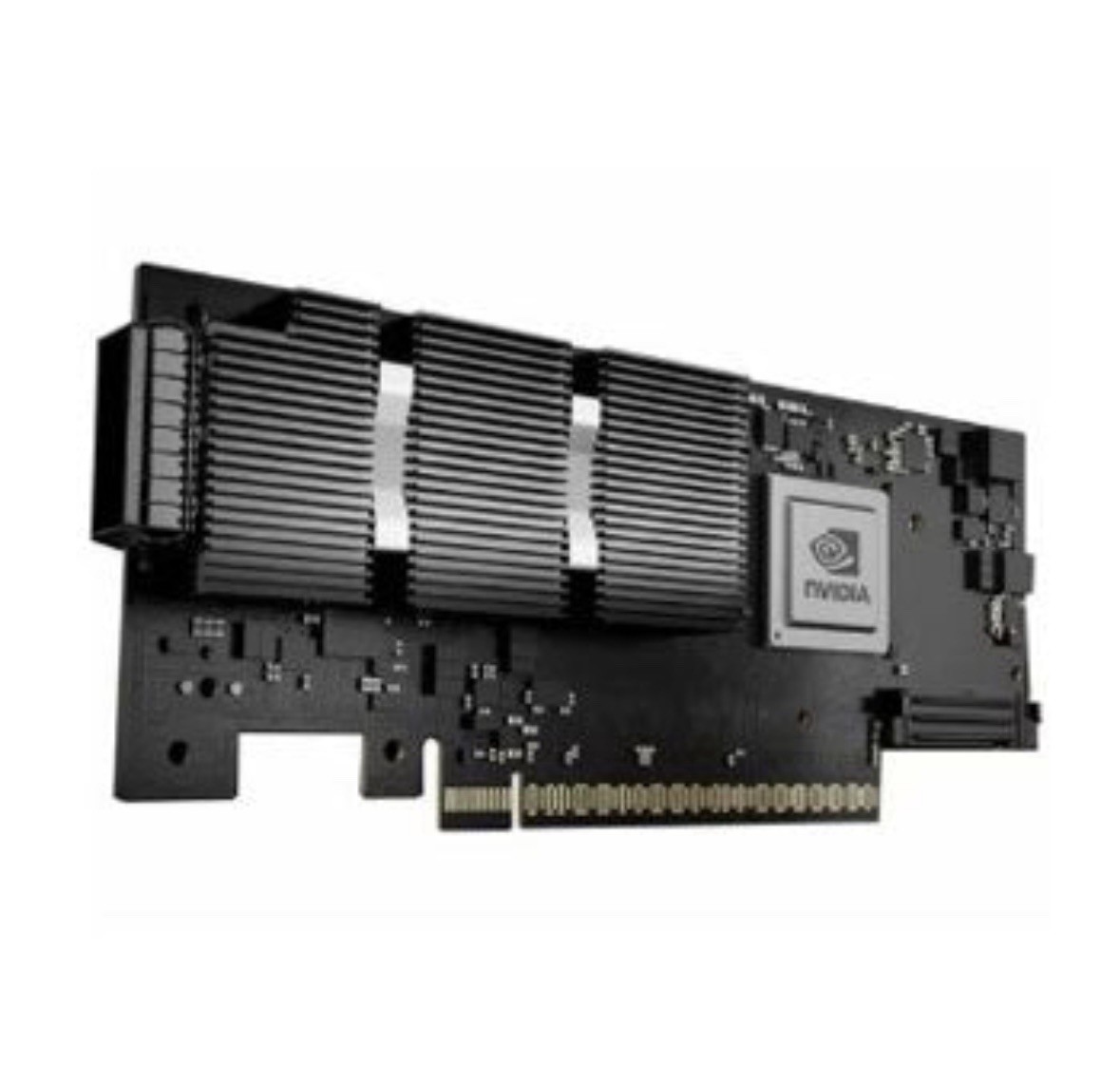

• Specifically: “MCX75310AAS-HEAT ConnectX-7 InfiniBand/Ethernet 200Gb/s Single-port OSFP PCIe x16” describes its core identity.
• It supports both Ethernet and InfiniBand protocols (so it’s “bifurcated” in that sense) and a top speed around 200 Gb/s in its default Specifications & Features
Here are the salient specs and features of the Factor
PCIe half-height, half-length: 2.71″ × 6.6″ (≈68.90 mm × 167.65 mm)
Interface
PCI Express x16; supports Gen 4.0/5.0 (SERDES at 16/32 GT/s) and backwards compatible with Gen 3.0
Network Port
Single port, OSFP type connector.
Data Rates – InfiniBand
NDR200 (2 lanes × 100 Gb/s per lane) default, HDR, HDR100, EDR, FDR, SDR supported.
Data Rates – Ethernet
200 GbE as default, and backwards to 100/50/40/25/10/1 Gb/s.
Security Features
Secure Boot enabled; Crypto disabled in this version (“AAS” suffix).
Thermal / Power
Voltage: 12 V and 3.3 V AUX; max current 100 mA. Operational temperature: 0 °C to 55 °C.
Supported Protocols & Technologies
RDMA, Converged Ethernet (RoCE), full InfiniBand stack (IBTA v1.5a) etc.
Use Cases
High-performance computing clusters, data centre network fabric, AI/ML server interconnect, storage backend fabrics.
• It’s part of the latest generation (ConnectX-7) of Mellanox/NVIDIA networking cards, offering cutting-edge speeds and flexibility.
• One single OSFP port supporting both Ethernet and InfiniBand means high flexibility for mixed fabric environments.
• High data throughput (200 Gb/s) and backward-compatibility with lower speeds make it future-proof to some extent.
• With a PCIe 5.0 x16 interface, it ensures the host bandwidth will not be a bottleneck in many high-end servers.
Condition: 100% Original
Warranty: 1 Year
Package: 100% Original Package
