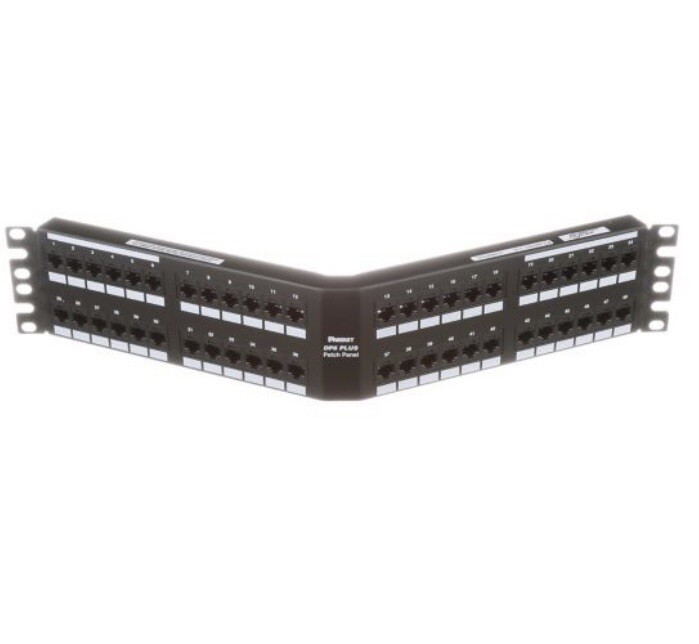

Cat 6 Angled Punchdown Patch Panel, 48 Port, 2 Patch Panel, Cat 6, Angled, 48 Port, 2RU

Features:

Exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards

Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications

Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability

Utilize 110 punchdown termination on back panel and includes retention cap for each port

Each port contains a universal label that is color-coded for T568A and T568B wiring schemes

Angled versions allow for higher density applications by easily routing the patch cords to each side of the panel eliminating the need for horizontal cable management

Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable

Mount to standard EIA 19" rack or 23" racks with optional extender bracket

Write-on areas for port and panel identification

Can be clearly identified with labels and icons

Optional label kits (DPLK24 and DPLK48) contain adhesive label holder and labels for easy port and panel Number DPA48688TGY

RoHS Compliancy Status Compliant

Note DPA48688TGY replaces DPA48688TG

Part Description 48-port, angled, Category 6, patch panel with 48 RJ45, 8-position, 8-wire ports.

Product Type Punchdown Patch Panel

Color Black

Depth (In.) 4.75

Depth (mm) 120.6

Height (In.) 3.00

Height (mm) 76.2

Width (In.) 19.0

Width (mm) 482.6

CE Compliant No

No. of Rack Spaces 2

Patch Panel Style Angled

Performance Level category 6

Pricing Description Punchdown Patch Panel, Cat 6, Angled, 48 Port, 2RU
