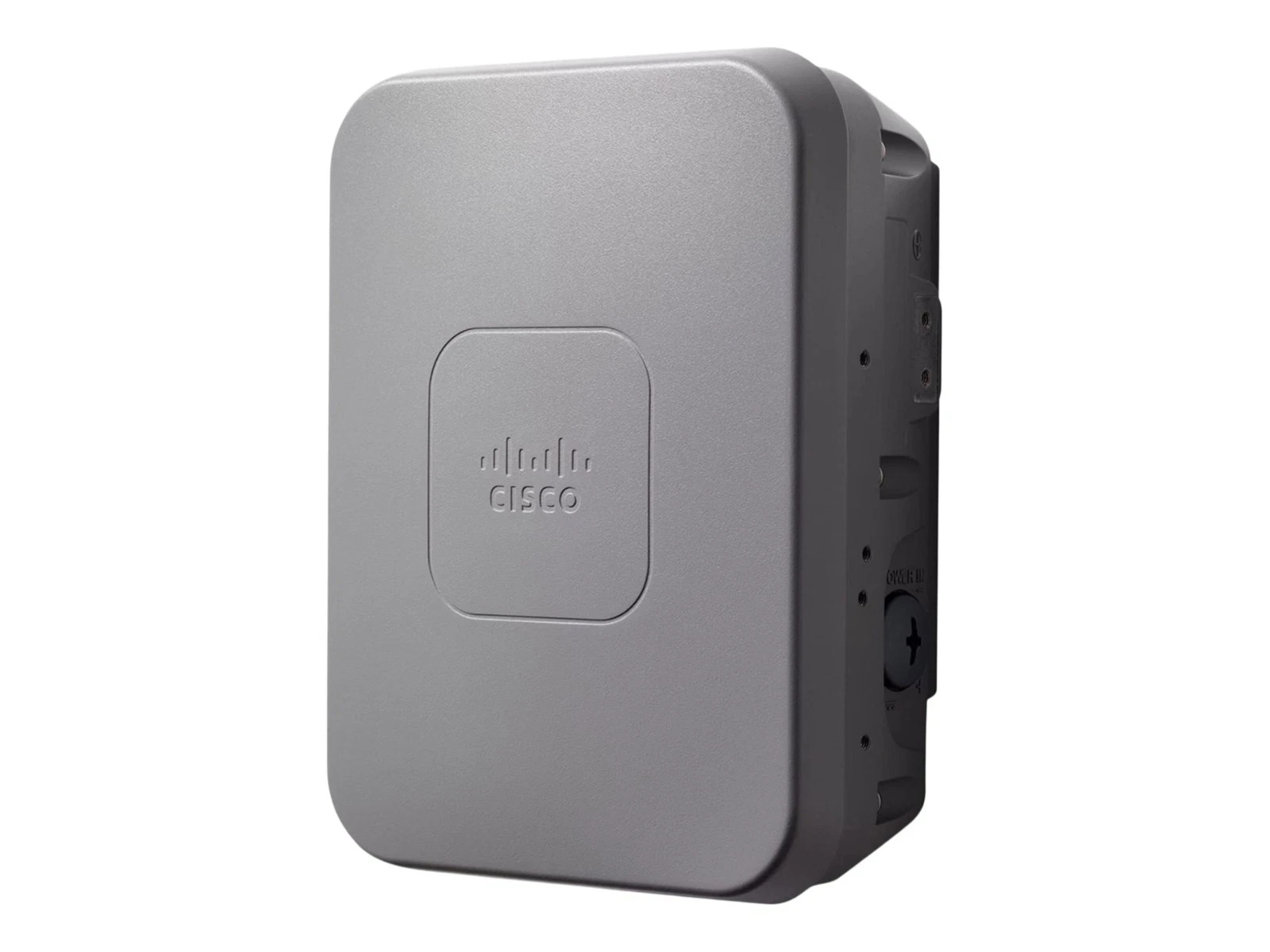

New Cisco Aironet AIR-AP1562I-E-K9 Dual Band 802.11ac MIMO Outdoor Access PointP/N:AIR-AP1562I-E-K9
New Factory Sealed3 Year Warranty
Included:

• 1 xNew Cisco Aironet AIR-AP1562I-E-K9 Dual Band 802.11ac MIMO Outdoor Access 802.11ac Wave 2 Low-Profile Outdoor AP, Internal Antenna, E Regulatory Domain
• Regulatory Domain:
• E (E Regulatory Domain):
• 2.412 to 2.472 GHz, 13 channels
• 5.500 to 5.580 GHz, 5 channels
• 5.660 to 5.700 GHz, 3 channels
• 802.11n (and related) capabilities:
• 3 x 3 MIMO with three spatial streams
• MRC
• 20- and 40-MHz channels
• PHY data rates up to 450 Mbps
• Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
• 802.11 DFS
• CSD support
• 802.11ac Wave 1 and 2 capabilities:
• 3 x 3 MIMO with three spatial streams
• Multi- and single-user MIMO
• Maximal Ratio Combining (MRC)
• 802.11ac beamforming (transmit beamforming)
• 20-, 40-, and 80-MHz channels
• PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
• Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic-Shift-Diversity (CSD) support
• Antenna type: Internal Antenna
• Maximum conducted transmit power:
• 2.4 GHz: 29 dBm with 3 antennas
• 5 GHz: 29 dBm with 3 port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
• SFP port (fiber or electrical)
• Management console port (RJ-45)
• Multicolor LED
• DC power input
• Reset button
• Uplink options: Ethernet, SFP, and wireless mesh
• Dimensions (W x L x H): 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
• Weight: 5.6 lb (2.5 temperature:
• –40 to 65°C (–40 to 149°F) ambient air with no solar loading
• –40 to 55°C (–40 to 131°F) ambient air with solar loading
• Storage temperature: –40 to 85°C (–40 to 185°F)
• Humidity: 5 - 95%, non-condensing
• Wind resistance:
• Up to 100-mph sustained winds
• Up to 165-mph wind gusts

Power consumption: 32 W (3x3:3, full power)

Powering options:

• AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)
• 44–57 VDC input
• Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at
• Cisco power (outdoor rated, 60W, with NEMA 5-15 AC plug)
• AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable)
• AIR-PWRINJ6= (indoor, 802.3at)

Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.
