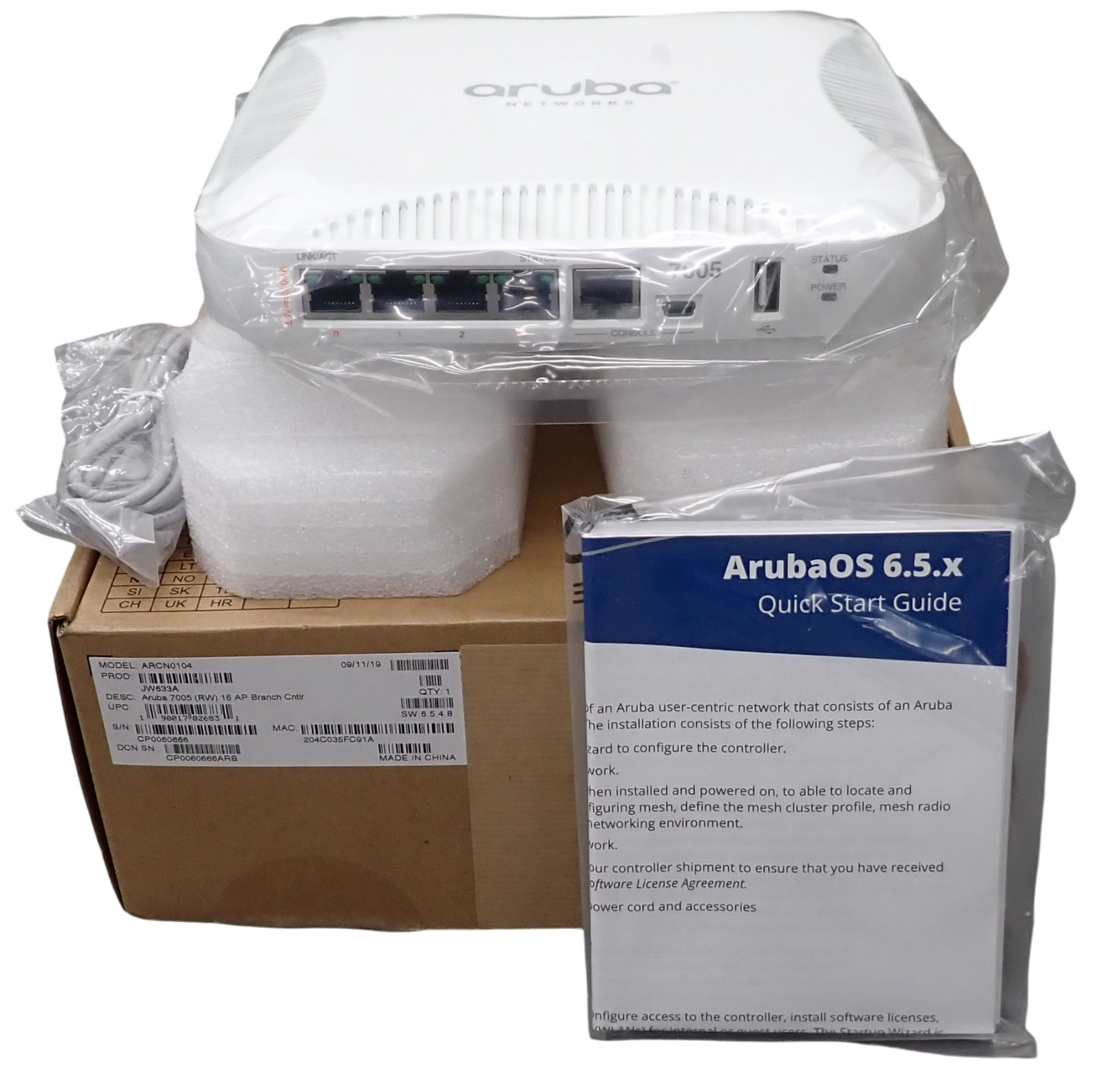

New HPE Aruba Networks 7005 Wireless Mobility Controller ARCN0104 7005-RW JW633AModel:ARCN0104P/N: 7005-RWHP P/N: JW633A
New Open Box
Included

• 1 xHPE Aruba Networks 7005 Wireless Mobility Controller ARCN0104 7005-RW JW633A

Description:

JW633A is the Aruba 7005 (RW) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller. Aruba 7000 Series Mobility Controllers optimize cloud services and secure enterprise applications for hybrid WAN at branch offices, while reducing the cost and complexity of deploying andmanaging the network.

Specification:

• Product Model: Aruba 7005 4-port 10/100/1000BASE-T - 16 AP and 1K Client Controller
• Maximum campus AP licenses: 16
• Maximum remote AP licenses: 16
• Maximum concurrent users/devices: 1,024
• Maximum VLANs: 4,094
• Active firewall sessions: 16,384
• Concurrent GRE tunnels: 256
• Concurrent IPsec sessions: 512
• Mobility Access Switch tunnelled-node ports: 512
• Firewall throughput: 2 Gbps
• Encrypted throughput (3DES, AES-CBC): 1.2 Gbps
• Encrypted throughput (AES-CCM): 1.6 Gbps
• Form factor/footprint: Compact
• Auto-negotiating 10/100/1000BASE-T: 4
• Gigabit Ethernet ports (GBIC or SFP): N/A
• USB 2.0: Yes
• Management/status LEDs: Yes (1)
• LINK/ACT and status LEDs: No
• LCD panel and navigation buttons: No
• Console port: Yes (micro USB/RJ-45)
• Out-of-band management port: No
• PoE Role/Mode: Powered Device (PD)
• PoE In or Out: In – Port 0
• Number of PoE+ capable Ports: -
• Max concurrent of PoE Ports: -
• Max concurrent PoE+ Ports: -
• PoE Power Budget: -
• Dimension (H × W × D): 4.1 cm x 20 cm x 20 cm (1.6” x 7.9” x 7.9”)
• Weight: 0.92 kg (2.03 lbs)
• MTBF (hours, @ 25C): 323,896
• Operating temperature: 0° C to 40° C
• Storage temperature: -40° C to 70° C
• Humidity/storage humidity: 10% to 95%,
• NC Operating altitude: 10,000 feet
• Acoustic noise: 0 dBA (fanless)
• Maximum power consumption: 16.6W (with USB)
• Safety certifications:
• UL 60950-1 Second Edition
• CAN/CSA-C22.2 No. 60950-1 Second Edition
• EN 60950-1 Second Edition EN 60950:2005
• IEC 60950-1 Second Edition
• NOM (obtained by partners and emissions certifications:
• FCC Part 15 Class B CE
• AS/NZS CISPR22 Class B
• CISPR22 Class B
• EN55022 Class B
• ICES-003 Class B
• VCCI Class 61000-4-2, EN 61000-4-3, EN 61000-4-4,
• EN 61000-4-5, EN 61000-4- 6, EN 61000-4-
• 8, EN 61000-4-11, AS/NZS 3548
• KN22 Class B KCC CNS13438 Class Canada Class B
• CE mark, cTUVus, CB, C-tick, Anatel, NOM,
• MIC
• Telco: Common Language Equipment Identifier (CLEI) Code
• Regulatory SKU information: ARCN01014(7005)
• Minimum ArubaOS Release: AOS 6.4.1.0
